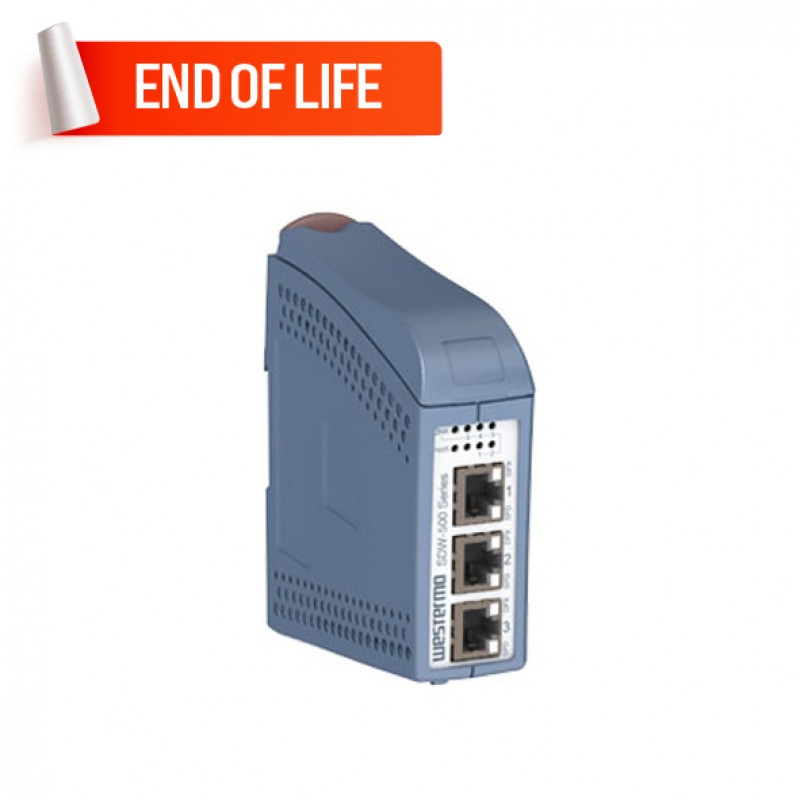

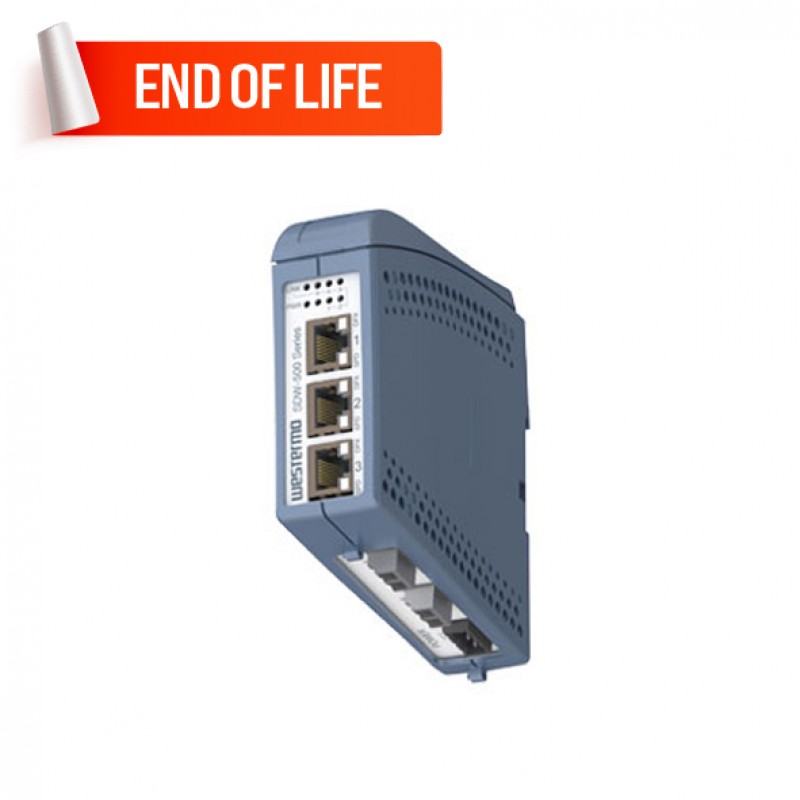

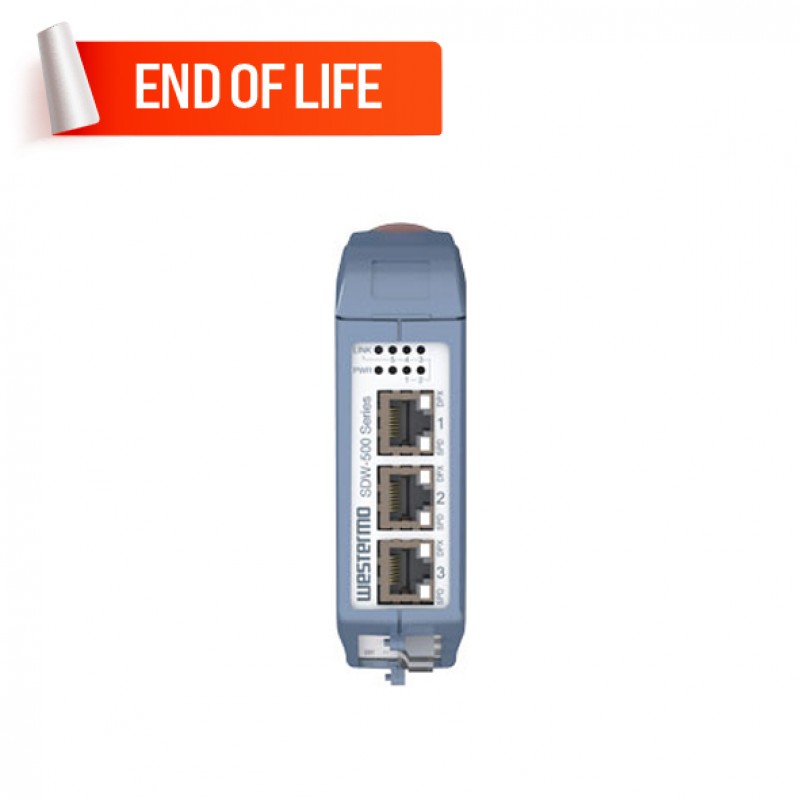

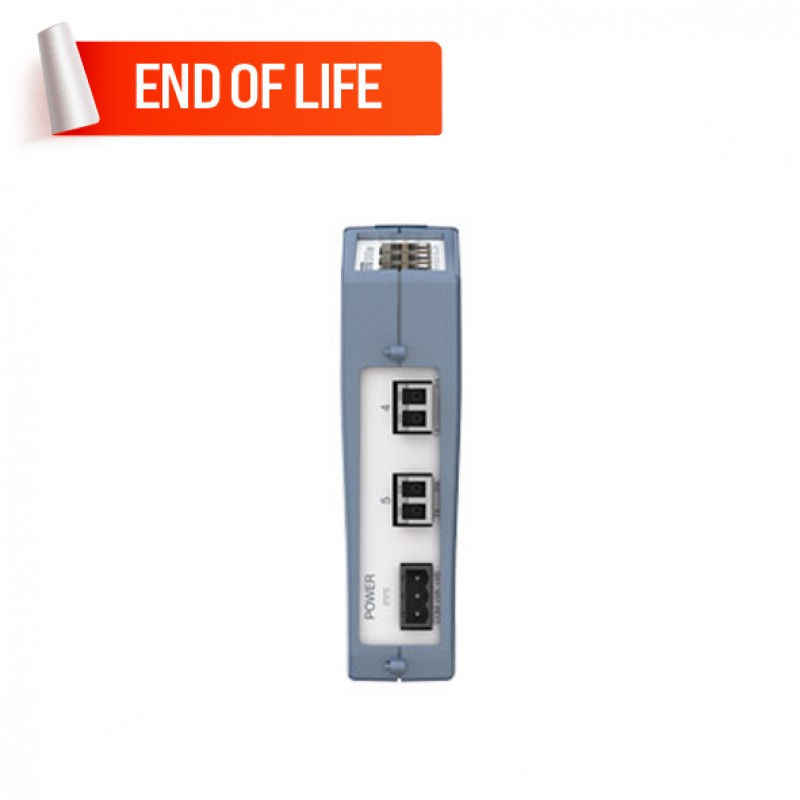

Westermo SDW-532-SM-LC40 Unmanaged Ethernet Switch | Easy World Automation

Description

The SDW-532 is an unmanaged 5-port (3TX and 2FX) industrial Ethernet switch designed for easy use in heavy-duty industrial applications. The unit supports 802.1Q long packets, which allows all standard industrial Ethernet protocols to be used. Many standard fibre optic connection types are supported, including LC, SC, and ST.

The SDW-532 is designed for use in industrial applications and so has dual power inputs for 10 to 57 VDC operation. Total galvanic isolation between each port is reinforced by the unique isolation provided between each chassis screen, helping to avoid ground loop currents. The IP21 rating ensures that the unit can be installed in locations where condensed water may occur. Only industrial-grade components are used, which gives the SDW-532 an MTBF of 760,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts.

The SDW-532 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments. Network diagnostics are simplified with the inclusion of port mirroring on one port, allowing data flow through the switch to be monitored using a network analyzer. All five ports can have data rate and flow control locked by a DIP switch, which can eliminate problems with old legacy Ethernet equipment that is unable to support auto-negotiation.

End of Life Product - No Replacement

Please note that the SDW-532 has been phased out. You can explore the SDI-862-MM-SC2, SDW-550-T5G, and SDW-541-F1G-T4G in the Unmanaged Ethernet Switches.

You can Buy the Westermo SDW-532-SM-LC40 Unmanaged Ethernet Switch via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.
