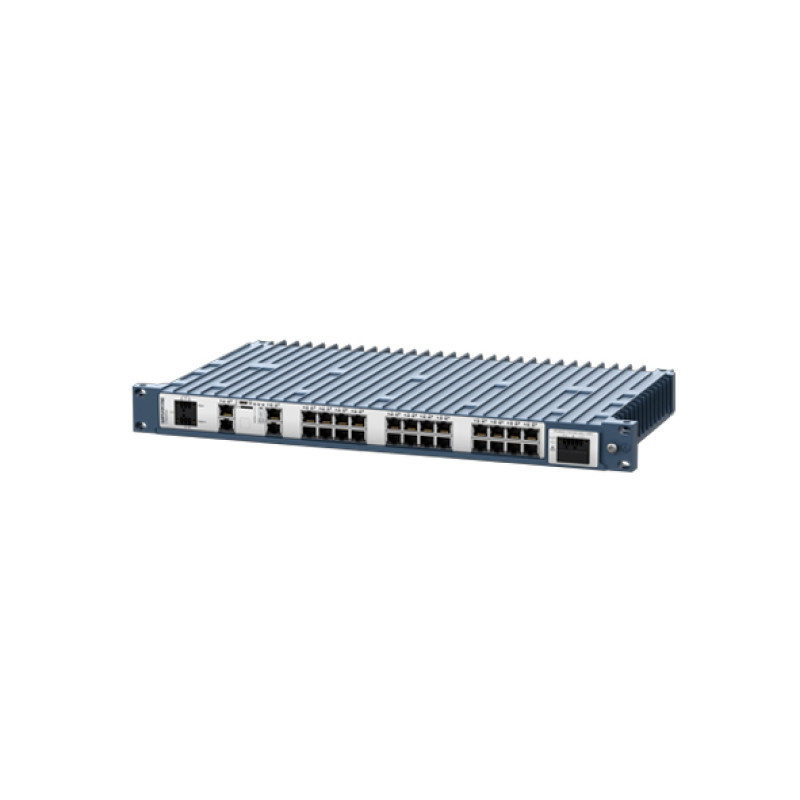

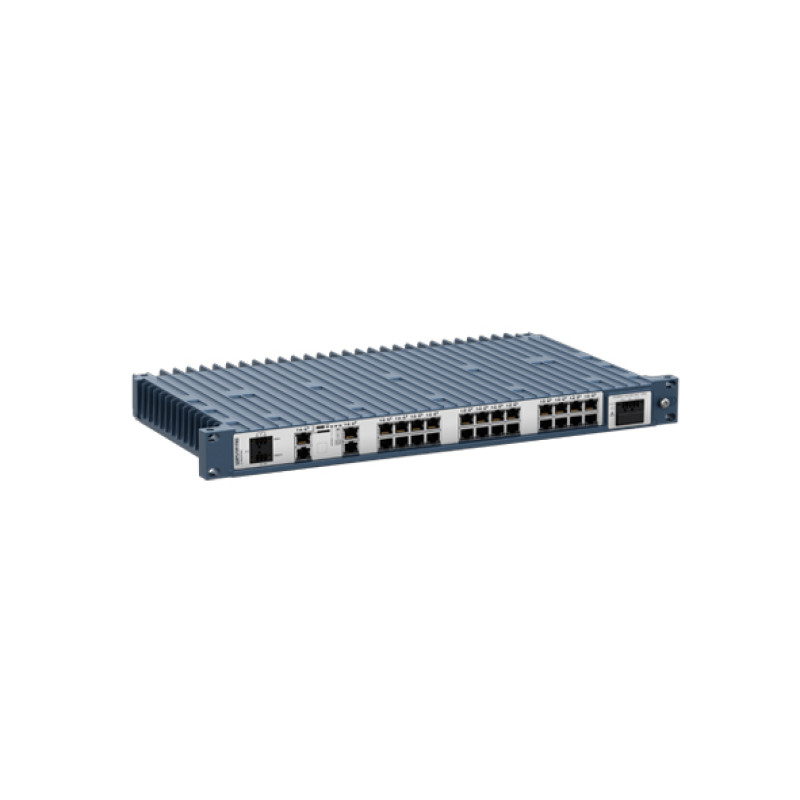

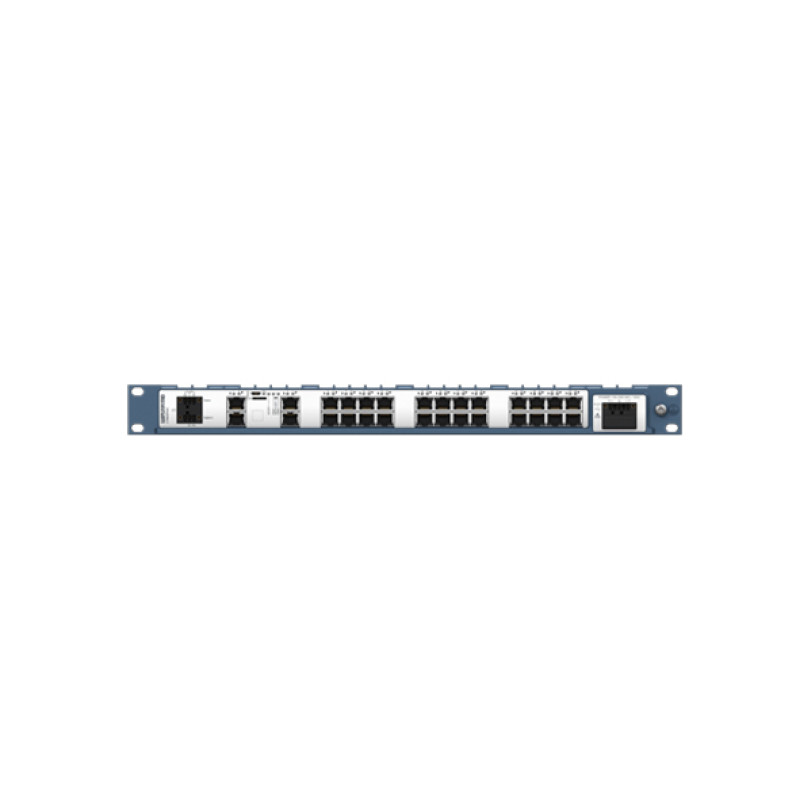

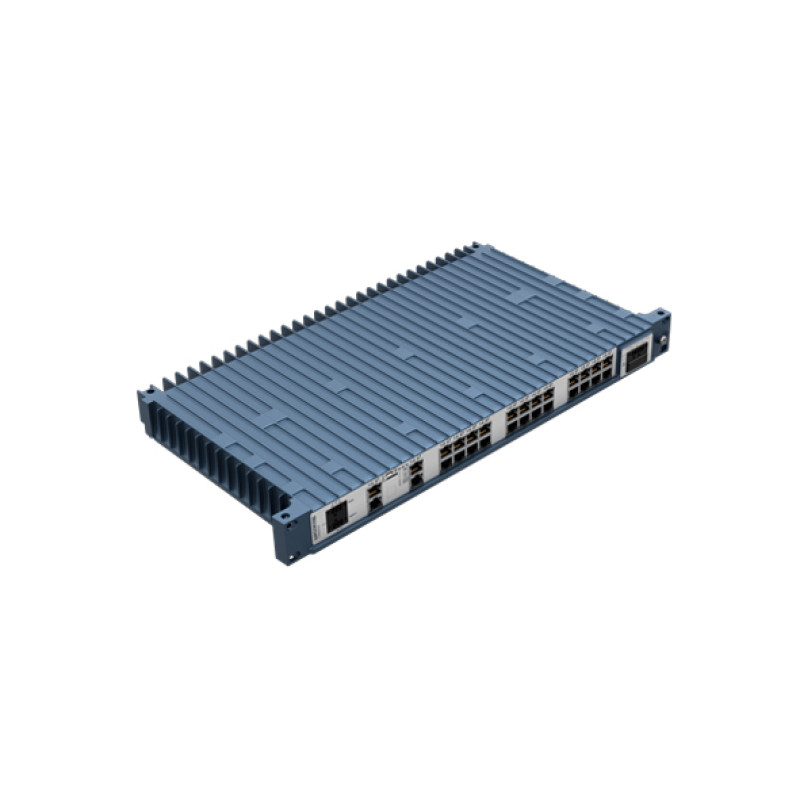

Westermo RedFox-5528-E-T28G-HV Managed Ethernet Switch
- Layer 3 functionality switching and routing
- 28 x 100/1000 Mbps Copper ports (RJ45 connector)
- IEEE 1588v2 Precision Time Protocol (PTP)
- 110 to 240 V AC/DC input power range
- Ultra-robust IP40 metal housing
- Rack and Wallmount installation design
- -40 to +70°C operating temperature range
.png)
Description
The RedFox 5500 series is designed for the core of large high-performance industrial networks and has been developed to cater to the needs of current and future industrial data networks, combining outstanding performance, durability, and reliability. These switches are ideal for handling the big data and high bandwidth requirements typically found within transportation, manufacturing, energy, smart cities, and other applications.
Integrating hardware, software, and network design support tools, this next-generation switch platform offers advanced capabilities and the lowest total cost of ownership, and will create the most reliable and resilient networks on the market.
The switch is engineered to maintain uninterrupted data communication, even in exceptionally harsh environments. The RedFox 5500 series is tested and certified to withstand extreme temperatures, vibrations, and shocks. The switches only use industrial-grade components, which contributes towards a market-leading mean time between failure (MTBF), maximized service life, and reduced operational and life cycle costs.
Various port configurations are available, all with full gigabit speed, that can be further customized with SFP transceivers. The RedFox 5500 series is available in either a DC or AC power supply as well as a configurable I/O fault contact making the switch ideal for monitoring in industrial applications.
The RedFox 5500 series is powered by the next-generation WeOS operating system, which ensures robust operation and support for an expanding range of protocols and features. In addition, recognizing the growing sophistication of cyberattacks, an extensive suite of cybersecurity tools is available.
The switches are also prepared for routing acceleration, extended cybersecurity, and time synchronization of IEEE 1588v2 applications, making them an ideal solution to meet future security and bandwidth requirements.
You can also find the RedFox-5528-E-F16G-T12G-HV, RedFox-5528-T28G-LV, RedFox-5528-F16G-T12G-LV, and RedFox-5528-T28G-HV in the Managed Ethernet Switches.
Discover industrial automation
solutions appropriate to your needs, and easily inquire about the Westermo RedFox-5528-E-T28G-HV Managed Ethernet Switch through
our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 28 Copper Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x Console micro USB, 1 x Micro SD, 1 x Digital input and 1 x Digital output |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.12 A at 240 V AC/DC, 0.24 A at 110 V AC/DC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110 to 240 V AC/DC (with Galvanic isolation to all ports) |
| Operating Voltage | 85 to 264 V AC/DC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | Telcordia: 653,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 482,4 x 43 x 258 mm (18.99 x 1.69 x 10.16 inches) |
| Housing | Full metal |
| Installation | Rack mounting, Wall mounting |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | Ingress protection: IP40; Telcordia; Approvals EMC: EN 61000-6-2, EN 61000-6-4; Approvals EMI: FCC Part 15.105 class A; Approvals Safety: EN/IEC/UL 61010-1, 61010-2-201; Approvals Trackside: EN 50121-4, IEC 62236-4; Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6, IEC 60068-2-64 |
| Storage Temperature | -50 to +85°C (-58 to +185°F) |
| Weight | 3.8 kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 1588v2 Precision Time Protocol (PTP) |
| Protocols and management standards | Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory., Configuration and Deployment using external memory., Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
