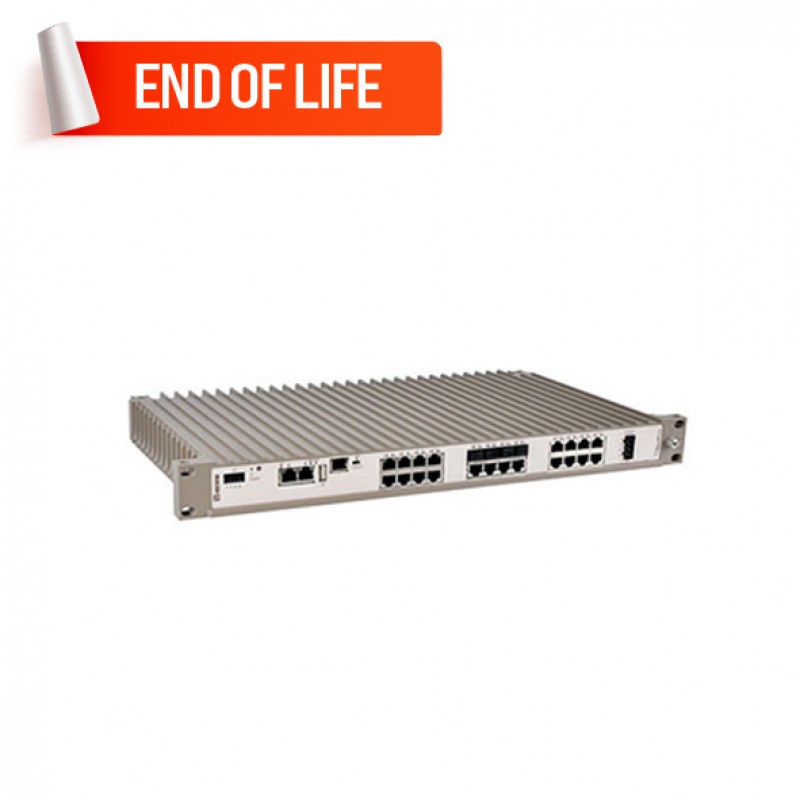

Westermo RFIR-127-F4G-T7G-AC Managed Ethernet Switch

Westermo RFIR-127-F4G-T7G-AC Managed Ethernet Switch
Westermo RFIR-127-F4G-T7G-AC Managed Ethernet Switch
Westermo RFIR-127-F4G-T7G-AC Managed Ethernet Switch
Westermo RFIR-127-F4G-T7G-AC Managed Ethernet Switch
Westermo RFIR-127-F4G-T7G-AC Managed Ethernet Switch

  • Layer 2 functionality switching
  • 4 x 100 or 1000 Mbit/s Ethernet FX or TX SFP ports
  • 7 x 10/100/1000 Mbit/s Ethernet TX ports (RJ-45)
  • 16 x 10/100 Mbit/s Ethernet TX ports (RJ-45)
  • 100 to 240 VAC operating voltage range
  • Ultra-robust IP40 19” Rack/Wall Mount housing
  • -40 to +55 operating temperature range

0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 55°C)
  • IP protection (IP40)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Ethernet Switches , Industrial Data Communications , Managed Layer 2 Switches , Layer 2 Switches , Rackmount Switches , Railway Transportation Products , Managed Ethernet Switches , Ethernet Switches , Managed Switches , Switches , Westermo RFIR-127-F4G-T7G-AC

The RFIR (RedFox Industrial Rack) is a high-performance layer 2 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customised with SFP transceivers. RFIR is powered by the Westermo WeOS network operating system.

RFIR is designed for 19” cabinets according to ETSI standard, making it suitable for use in control room networks as well as for cabinets installed along railway trackside installations. RFIR is designed to run efficiently from an AC power supply. The unit is also equipped with configurable I/O fault contacts that make it ideal for easy installation and monitoring in industrial applications.

Only industrial-grade components are used, which gives RFIR an MTBF of 120,000 hours that ensures a long service life. A wide operating temperature range -40 to +55 °C (-40 to +131°F) can be achieved with no moving parts or cooling holes in the case. RFIR has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.


End of Life Product - Replacement Available

Please note that the RFIR-127-F4G-T7G-AC has been phased out and replaced by the RedFox-5528-E-F4G-T24G-HV.


Easy World Automation offers the easiest way to buy the Westermo RFIR-127-F4G-T7G-AC Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 27 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 16 Ports
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 7 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 4 x 100 or 1000 Mbit/s Ethernet FX or TX SFP (pluggable connections), 1 x Console Port (USB Micro-B connector), 1 x USB Port (USB 2.0 host interface), 1 x 4-ports Digital I/O ( detachable screw terminal)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 380 mA @ 100 VAC 50 Hz, 240 mA @ 240 VAC 60 Hz
Power Input Plugin ( Redundant ) No
Input Voltage -
Operating Voltage 100 to 240 VAC 50 to 60 Hz
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 120,000 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation No
switch and hub : Physical Characteristics
Dimensions 466 x 258 x 43 mm
Housing -
Installation Rack mounting
Operating Temperature -40 to +55 °C (-40 to +131 °F), Maximum surface temperature: 135ºC (275ºF) (temperature class T4)
Operation Humidity -
Standards and Certifications IP40; MIL-HDBK-217K; EMC: EN 50121-4, Railway applications - Electromagnetic compatibility - Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Electromagnetic compatibility - Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Electromagnetic compatibility - Immunity for industrial environments, EN 61000-6-4, Electromagnetic compatibility - Emission for industrial environments; Safety: UL 60950-1, IT equipment, EN/IEC 62368-1, Safety Communication Technology
Storage Temperature -40 to +85 °C (-40 to +185 °F)
Weight 3.8kg
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
