Description

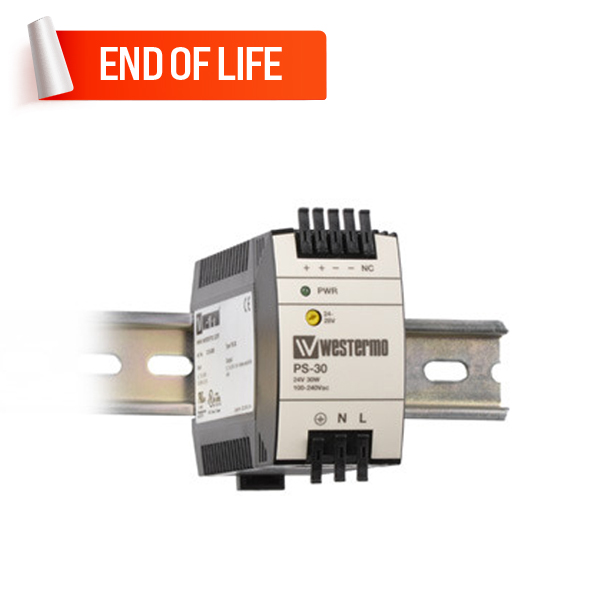

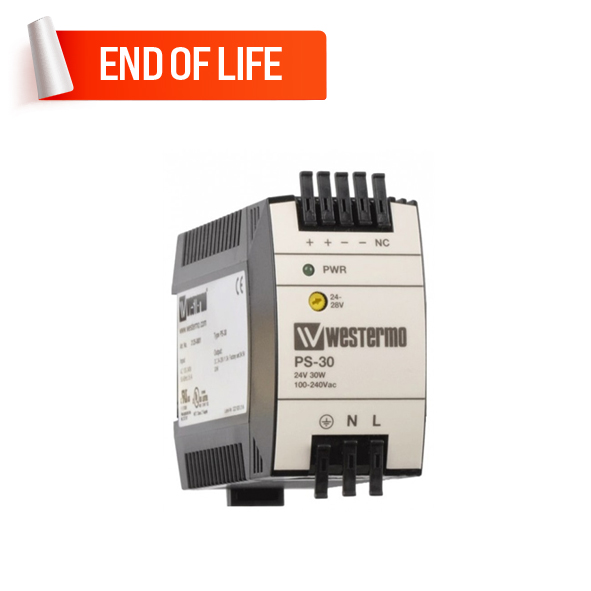

The PS-30 is a DIN-rail power supply unit (PSU) complying with many major safety approvals. The robust plastic housing makes the PSU small and the fine ventilation grid prevents small items from entering and damaging it. The operational temperature range –10°C to +70°C and output voltage 24 VDC at 1.3 A make the unit ideal for many industrial applications. The PS-30 can be mounted and connected in record time as no tools are required for the spring clamp terminal connections.
End of Life Product - Replacement Available
Please note that the PS-30 has been phased out and replaced by the PS-60.
Easy World Automation offers the
easiest way to buy the Westermo PS-30 DIN-rail Power Supply in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Power Requirements | |
|---|---|
| Input | Input voltage: 100 to 240 VAC (Wide Range), 47–63Hz, 100 to 338 VDC; Input current: <0.6 A (@ AC 100 V, 30 W Pout), <0.35 A (@ AC 196 V, 30 W Pout) |
| Operating Voltage | 85 to 264 VAC, 85 to 375 VDC |
| Output | Output voltage: DC 24–28 V, adj. by front panel potentiometer 24.5 V ±0.5% |
| Over-voltage Protection | <40 V |
| Overload Protection | - |
| Reverse Polarity Protection | |
| Physical Characteristics | |
| Dimensions | 45 x 75 x 91 mm (+ DIN-rail Depth incl. terminals: 98 mm (+ DIN Rail) |
| Housing | Plastic |
| Weight | 230 g |
| Ambient Relative Humidity | max. 95% (without condensation) |
| Operating Temperature | –10°C to +70°C (14 to 158°F) |
| Storage Temperature | –25°C to +85°C (–13 to 185°F) |
| Installation | DIN-rail mounting |
| Standards and Certifications | EME: EN 61000-6-3 (includes EN 61000-6-4), Class B (EN 55011, EN 55022) includes output noise suppression; EMI: EN 61000-6-2 (includes EN 61000-6-1); Safe low voltage: SELV (EN60950, VDE0100/T.410), PELV (EN50178); Prot. class/degree: Class I (EN60950) / IP20 (EN60529); EU (EN 60 950, EN 60204-1, EN 50178), USA (UL 60950, E137006, UL508 LISTED, E198865), Canada (CAN/CSA-C22.2 No 60950 [CUR], CAN/CSA-C22.2 No. 14 [CUL]), CB Scheme (IEC 60950). NEC Class 2 |
| MTBF | MTBF 650.000h acc. to Siemensnorm SN 29500 (24 V / 1.3 A, AC 230 V, Tamb = +40°C) |
| Supported Series | |
| Supported Series | - |
