Description

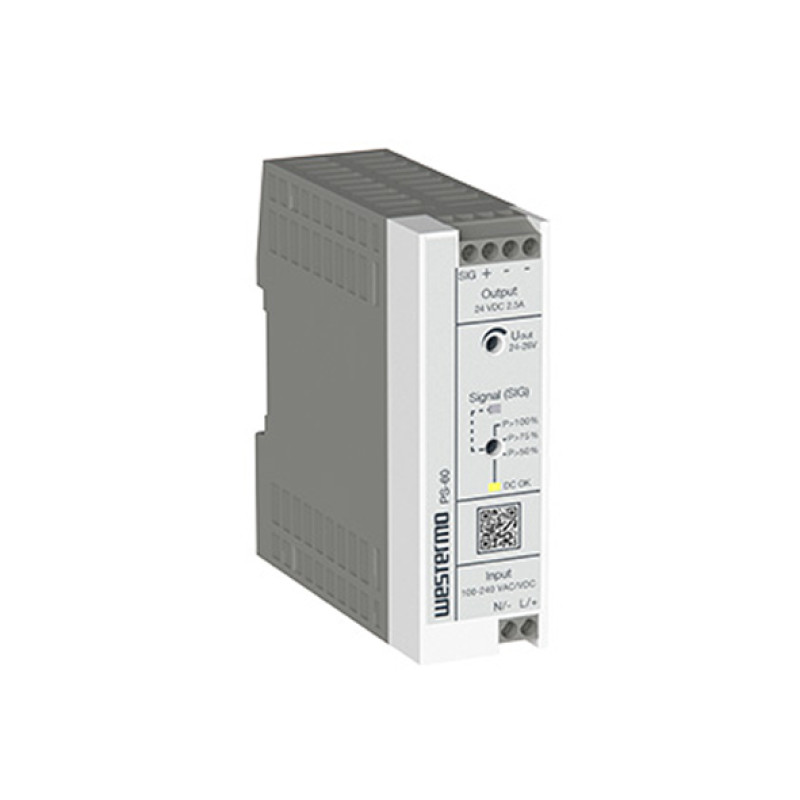

The PS-60 is a perfect companion to most devices in the Westermo portfolio, designed to match the robust and reliable products that Westermo is known for. With superior buffering capacity and EMC immunity, the PS-60 can power network communication equipment even in harsh applications such as trackside and substation automation. The compact form factor of the PS-60 occupies a very small part of the DIN-rail, 32mm, leaving room for more mission-critical equipment.

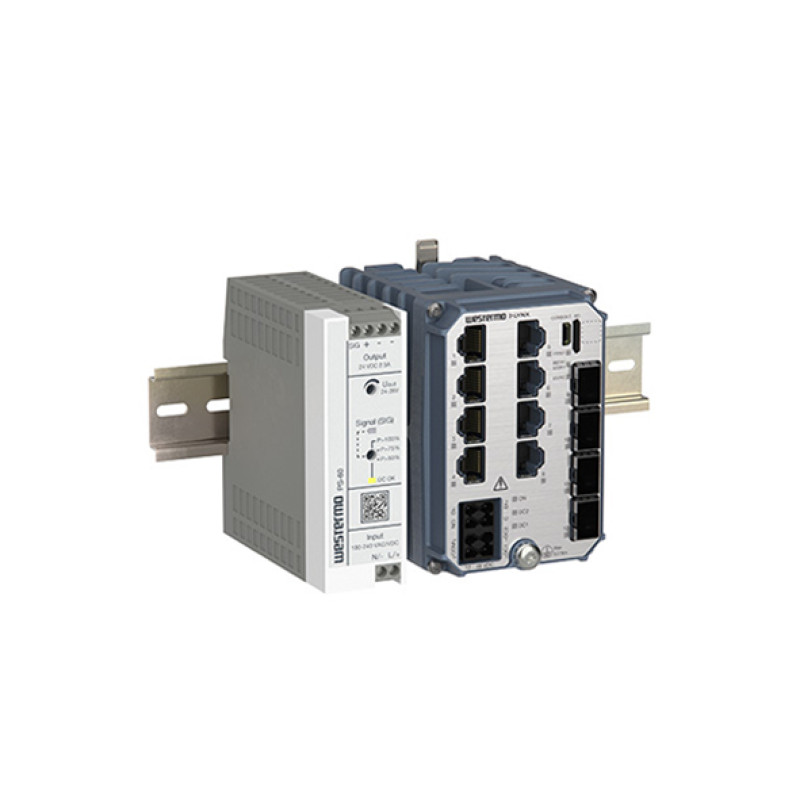

The PS-60 supports a wide range of input voltages, both AC and DC, supporting most applications and scenarios. With a 60 W power budget, the PS-60 provides a high level of flexibility for various load scenarios, such as powering several switches or other equipment from one single power supply. In addition, the device provides static boost, which allows for system expansion, and dynamic boost, which removes the need for over-dimensioning the PSU to manage start-up currents.
With its wide operating temperature range and tolerance for tough shock and vibrations, installation in a multitude of conditions is possible. Combined with excellent MTBF values and a wide operating temperature range, the PS-60 can be used to power anything from a simple unmanaged switch to a managed, high-end switch for substation automation. Whatever your needs, the PS-60 is an ideal companion.
You can also find the PS-260 model in the Power Supplies.
You can Buy the Westermo PS-60 DIN-rail Power Supply via inquiring
online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific
time in your location.
Specification
| Power Requirements | |
|---|---|
| Input | Rated input voltage: 100 to 240 VAC, 50 to 60 Hz or 110 to 250 VDC; Rated current (nominal): 0.39 A at 230 VAC, 0.75 A at 110 VDC; Inrush surge current: < 0.1 A2s |
| Operating Voltage | 85 to 264 VAC, 45 to 66 Hz or 88 to 350 VDC |
| Output | Output voltage: 24 to 28 VDC, adjustable by potentiometer; Output current: 2.5 A, 3,125 A (static boost, permanently available up to 40 °C), 5 A (dynamic boost, available for 5 sec up to 60 °C) |
| Over-voltage Protection | - |
| Overload Protection | - |
| Reverse Polarity Protection | - |
| Physical Characteristics | |
| Dimensions | 32 x 99 x 90 mm |
| Housing | Plastic (polycarbonate) |
| Weight | 0.25 kg |
| Ambient Relative Humidity | ≤ 95 % |
| Operating Temperature | -25 to +70 °C (-40 °C startup) > 60 °C, derating: 2.5 %/K |
| Storage Temperature | -40 to +85 °C (-58 to +185 °F) |
| Installation | DIN-rail mounting |
| Standards and Certifications | IEC 61709, SN29500; EMC: IEC 61850-3, Communication networks and systems for power utility automation – Part 3: General requirements, EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments, EN/IEC 61000-6-5, Immunity power station and substation environments; Safety: IEC 61558-2-16, Safety of power supply units etc, EN/IEC/UL 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use, EN/IEC/UL 61010-1 (SELV), EN/IEC/UL 61010-2-201 (PELV); Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Ingress protection: IP20; Shock: IEC 60068- 2-27; Vibration: IEC 60068-2-6 |
| MTBF | 734,000 at 40 °C (IEC 61709, SN29500) |
| Supported Series | |
| Supported Series | - |
