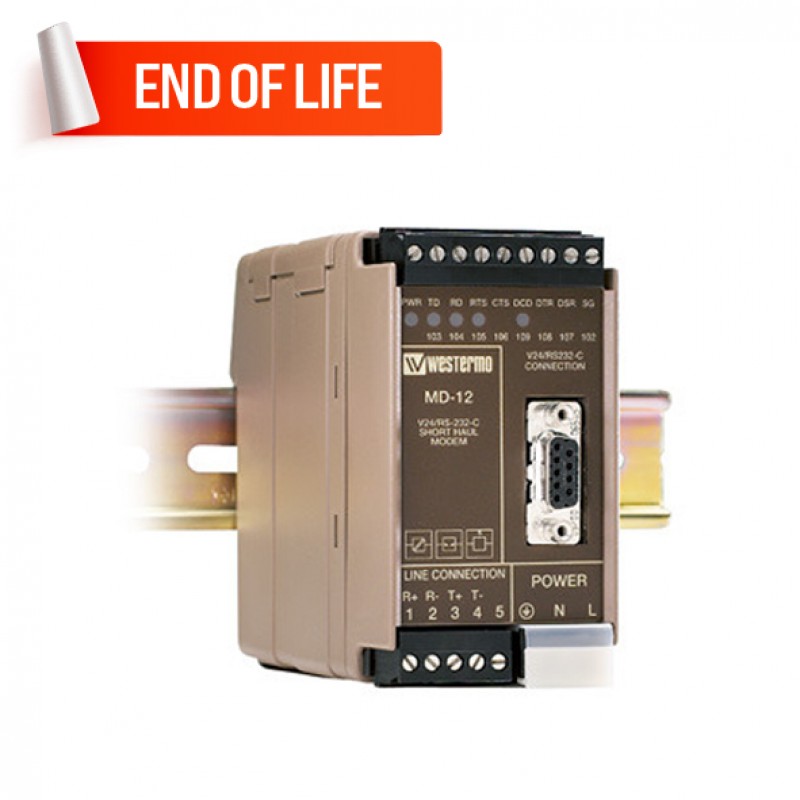

Westermo MD-12 DC Industrial Short Haul Modem
- 1x 10 mA tri-state balanced current loop up to 38.4 kbit/s
- Short-haul modem, point-to-point
- 1x RS-232 up to 38.4 kbit/s
- Brand: WESTERMO
- Product Code: MD-12 DC
Description
The MD-12 is a short-haul modem allowing RS-232 systems to be connected over long distance. The serial interface is a standard RS-232 interface with five control signals. The connection between the modems is a balanced current loop allowing distances up to 18 km. (11.18 mi) Since the communication is totally transparent no communication settings are necessary. The RS-232 serial interface is connected through a standard 9-pole D-sub or alternately through a terminal block with screw connectors.
The MD-12 is designed for use in heavy-duty industrial applications. The different power options, galvanic isolation, and transient protection guarantee communication in the worst environments. The MD-12 has been tested to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments.
The design of the short-haul modem makes the MD-12 suitable for a variety of applications with various speeds and data bit options. DIP switches are used for configuration options of the control signals. One control signal can be transmitted in both directions.
You can explore our wide range of
products and enquire about the Westermo MD-12 DC Industrial Short Haul Modem for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
Interface | |
---|---|
RS-232 | 1 x up to 38.4 kbit/s |
10 mA tri-state balanced current loop | 1 x up to 38.4 kbit/s |
Power Requirements | |
Operating voltage | DC: 12 to 36 V, AC: 230 V (+15% –10% |
Rated current | DC: 65 mA @ 12 V, 40 mA @ 36 V, AC: 20 mA @ 230 V |
Physical Characteristics | |
Dimension | 55 x 100 x 132 mm (2.16 x 3.93 x 5.19 in) |
Weight | 0.4 kg |
Degree of protection | IP 20 |
Operating temperature | 5 – 50ºC (41 – 122ºF) |
EMC | SS-EN 50081-1/SS-EN 55022 (1992): Class B, SS-EN 50082-2/SS-EN 61000-4-2 (1995): 4 kV CD, 8 kV AD, SS-EN 50082-2/SS-EN 61000-4-4 (1995): 4 kV power, 2 kV signals, SS-EN 50082-2/SS-ENV50140 (1993): 10 V/m, SS-EN 50082-2/SS-ENV50141 (1994): 10 V/m, SS-EN 50082-2/SS-ENV50204 (1995): 10 V/m |
Safety | EN 60950 (1992) |
