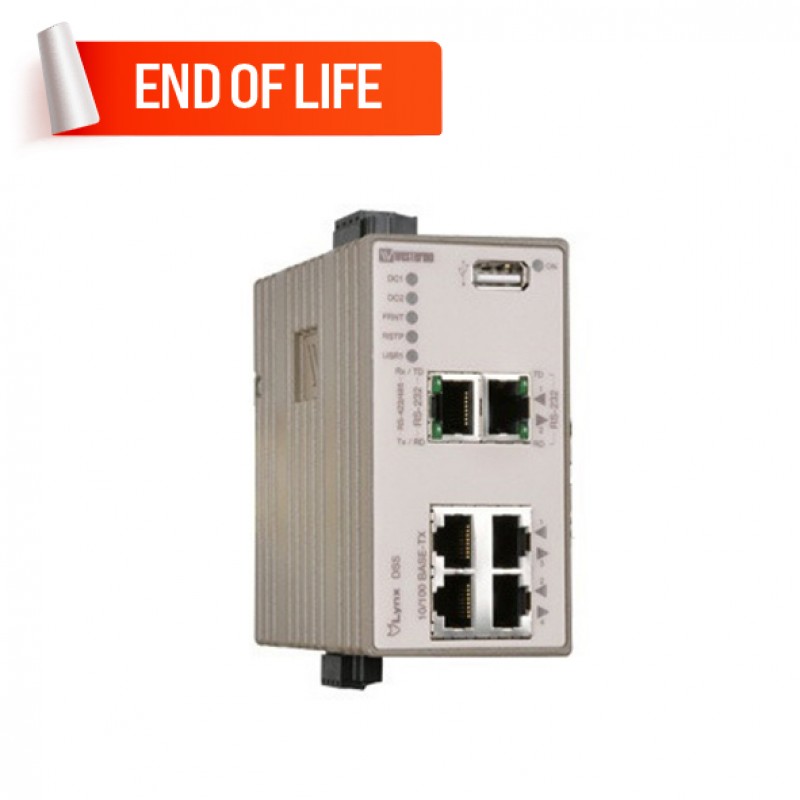

Westermo L206-S2-EX Managed Ethernet Switch
- EX Approved Managed Device Server Switch
- Layer 3 functionality switching and routing
- 4 x 10 Mbit/s, 100 Mbit/s Copper ports (RJ-45 connector)
- 1 x RS-232 Port (50 bit/s – 115.2 kbit/s, RJ-45 connector)
- 1 x RS-232/422/485 Port (50 bit/s – 2 Mbit/s, RJ-45 connector)
- IP40-rated Zinc body material design

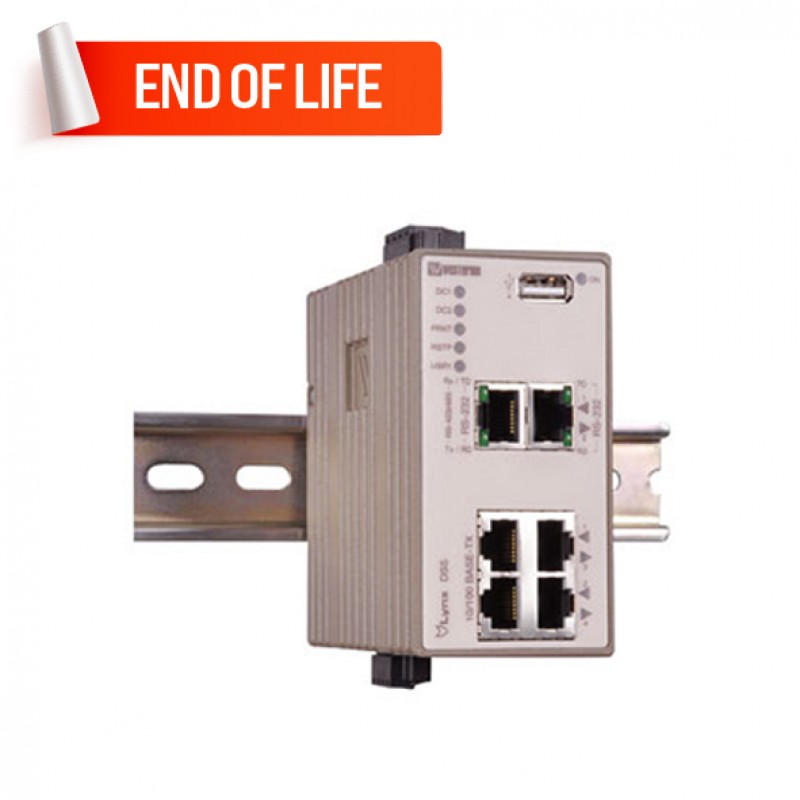

- DIN rail mount installation
- 24 to 48 VDC Redundant dual inputs (Wide Range 19 to 60 VDC)
- -40 to +70°C operating temperature range
- Brand: WESTERMO
- Product Code: 3643-5225
.png)
Description
Lynx 206 is a layer 3 managed industrial Ethernet switch,
powered by the Westermo WeOS network operating system. Independently tested for
IECEX and ATEX by Baseefa, Lynx is the perfect solution for hazardous area
applications in any part of the world.
Lynx is the most compact and has the lowest power
requirements in this class of switch. Lynx has 4 10/100 Mbit/s ports inaddition
to 2 serial ports. One serial port is configured for RS-232, the other one can
be configured for either RS-232 or RS-422/485.
Only industrial-grade components are used, which gives Lynx an MTBF of 593,000 hours and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.
End of Life Product - No Replacement
Please note that the L206-S2-EX has been phased out. You can explore the L206-S2, L205-S1, L208-F2G-S2, L106-S2, and L108-F2G-S2 models in the Managed Ethernet Switches.
Experience the convenient way to
purchase the Westermo L206-S2-EX Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman). Our sales experts will provide the most helpful information about the
price and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Number of ports | 6 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 4 Ports (or 10 Mbit/s) |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Port (50 bit/s – 115.2 kbit/s, RJ-45 connector), 1 x RS-232/422/485 Port (50 bit/s – 2 Mbit/s, RJ-45 connector), 1 x USB 2.0 Port, 1 x Digital I/O channel (4-position detachable screw terminal), 1 x Console Port (2.5 mm jack) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 150 mA (300 mA) @ 24 VDC (with 500 mA USB load), 80 mA (150 mA) @ 48 VDC (with 500 mA USB load) |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24 to 48 VDC (with Galvanic isolation to all ports) |
| Operating Voltage | 19 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | MIL-HDBK-217K: 593,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 52 x 100 x 101 mm (2.04 x 3.93 x 3.97 in) |
| Housing | Metal |
| Installation | Din-rail mounting |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | MIL-HDBK-217K; Ingress protection: IP40; EMC: EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, EN 55022 +A1, Emission IT equipment, EN 55024, Immunity IT equipment, FCC part 15 Class A, EN 50121-4, Railway signalling and telecommunications apparatus, IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: UL/IEC/EN 60950-1, IT equipment; Marine: DNV Standard for Certification no. 2.4; IECEx: Explosive atmosphere, IEC 60079-0, General requirements, IEC 60079-15, Equipment protected by type of protection “n”; ATEX: Explosive atmosphere, EN 60079-0, General requirements, EN 60079-15, Equipment protected by type of protection “n”; Class1 Div 2: FM Approval; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6 |
| Storage Temperature | -50 to +85°C (-58 to +185°F) |
| Weight | 0.7Kg |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | OSPFv2, RIPv1/v2, Robust VRRP, NAT, HTTP and HTTPS or CLI (SSHv2 or Telnet), SNMPv1/v2c/v3, SNTP (NTP client), PPPoE client, DHCP client, DHCP server including option 82, DHCP relay agent including option 82, DDNS |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
