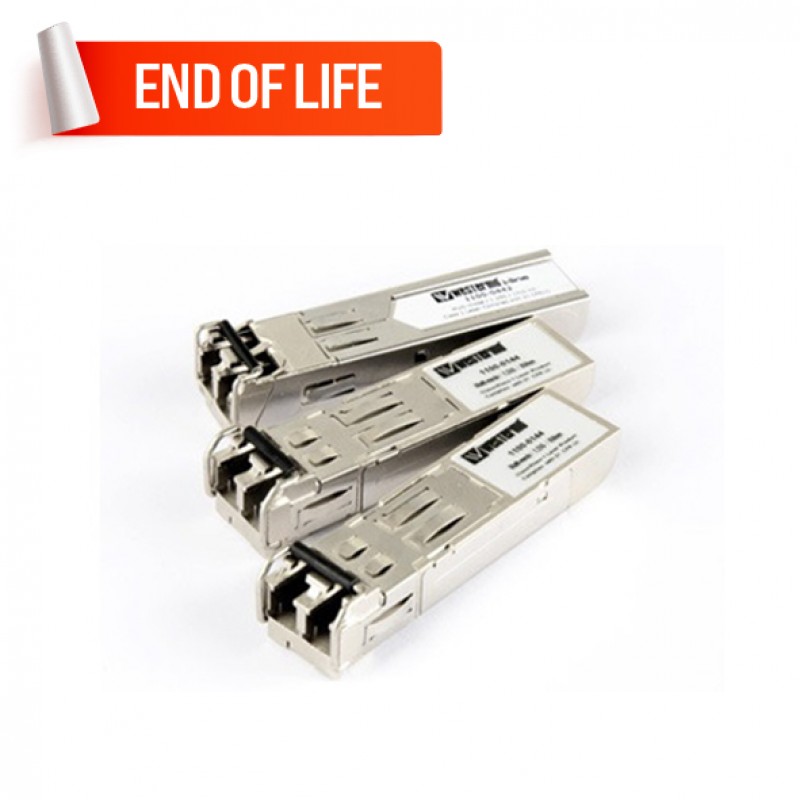

Westermo GSLCLC80-ZX SFP Module
- EX Approved Gigabit SFP Module
- 1 x 1 Gbit/s SFP port (Singlemode, LC connector)
- 80 km Typical data transmission distance on fiber
- Maximum transmit wavelength: 1550 nm
- Wide operating temperature range, -40 to +85°C
- Brand: WESTERMO
- Product Code: 1100-0143
Description
The Westermo range of Small Form-factor Pluggable (SFP) transceivers covers versions suitable for Gigabit applications. LC connectors are used as standard due to their small size. These transceivers have been verified to meet the Westermo environmental specification and can operate in a range of different Westermo products in harsh industrial applications. The transceivers are coded to allow confirmation that certified versions have been installed.
Versions are available with different wavelengths, including 1550 nm for extreme distances up to 120 km (74.5 mi) and a 1310 nm version for both single (9/125) and multimode cables (50/125 and 62.5/125). A Bi-Directional (BiDi) transceiver can be used in applications with only a single fiber core.
End of Life Product - No Replacement
Please note that the GSLCLC80-ZX has been phased out. You can explore the 10GSLC10, 2.5GSLC40, GSLC110-DDM, GTX100, and SLC120-BiDi-A-DDM in the SFP Transceivers.
Experience the convenient way to
purchase the Westermo GSLCLC80-ZX SFP Module in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman). Our sales experts will provide the most helpful information about the
price and sale conditions for a wonderful buying experience.
Specification
| INTERFACE | |
|---|---|
| Ports | 1 x 1 Gbit/s SFP port (Singlemode) |
| Connector | LC connector |
| Typical Distance | 80 km |
| POWER REQUIREMENTS | |
| Power Information | Power budget (dB): 24 |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | - |
| Weight | - |
| Operating Temperature | –40 to +85°C (–40 to +185°F) |
| Storage Temperature | - |
| Ambient Relative Humidity | - |
| Standards and Certifications | CE, UL Listed (cULus), IEC, IECEx, Ex, Pb-Free (Lead-Free), RoHS (Restriction of Hazardous Substances), EN 60825-1, Maritime: DNV-GL |
| MTBF | - |
