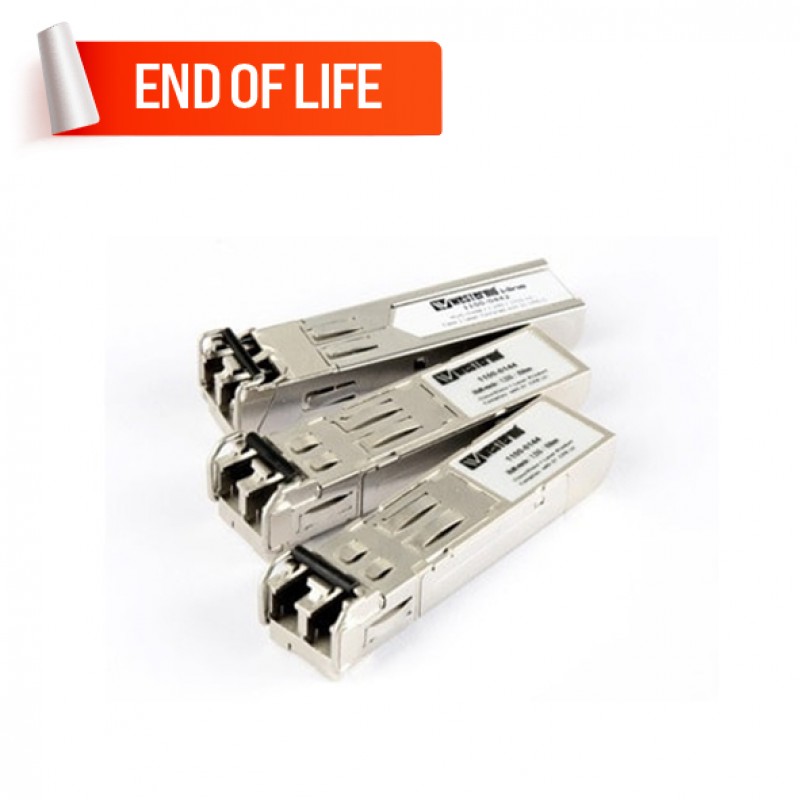

Westermo SLC40 SFP Module
- EX Approved Megabit SFP Module
- 1 x 100 Mbit/s SFP port (Singlemode, LC connector)
- 40 km Typical data transmission distance on fiber
- Maximum transmit wavelength: 1310 nm
- Wide operating temperature range, -40 to +85°C
- Brand: WESTERMO
- Product Code: 1100-0133
Description
The Westermo range of Small Form-factor Pluggable (SFP) transceivers covers versions suitable for 10/100 Mbit/s applications. LC connectors are used as standard due to their small size. These transceivers have been verified to meet the Westermo environmental specification and can operate in a range of different Westermo products in harsh industrial applications. The transceivers are coded to allow confirmation that certified versions have been installed.
Versions are available with different wavelengths, including 1550 nm for extreme distances up to 120 km (74.5 mi) and a 1310 nm version for both single (9/125) and multimode cables (50/125 and 62.5/125). In applications where only a single fibre core is available, a Bi-Directional (BiDi) transceiver can be used.
End of Life Product - No Replacement
Please note that the SLC40 has been phased out. You can explore the 10GSLC10, 2.5GSLC40, GSLC110-DDM, GTX100, and SLC120-BiDi-A-DDM in the SFP Transceivers.
Explore our extensive range of
industrial automation products such as Westermo SLC40 SFP Module in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales experts
will contact you to fulfill all your industrial automation needs.
Specification
| INTERFACE | |
|---|---|
| Ports | 1 x 100 Mbit/s SFP port (Singlemode) |
| Connector | LC connector |
| Typical Distance | 40 km |
| POWER REQUIREMENTS | |
| Power Information | Power budget (dB): 30 |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | - |
| Weight | - |
| Operating Temperature | –40 to +85°C (–40 to +185°F) |
| Storage Temperature | - |
| Ambient Relative Humidity | - |
| Standards and Certifications | CE, UL Listed (cULus), IEC, IECEx, Ex, Pb-Free (Lead-Free), RoHS (Restriction of Hazardous Substances), EN 60825-1; Maritime: DNV-GL |
| MTBF | - |
