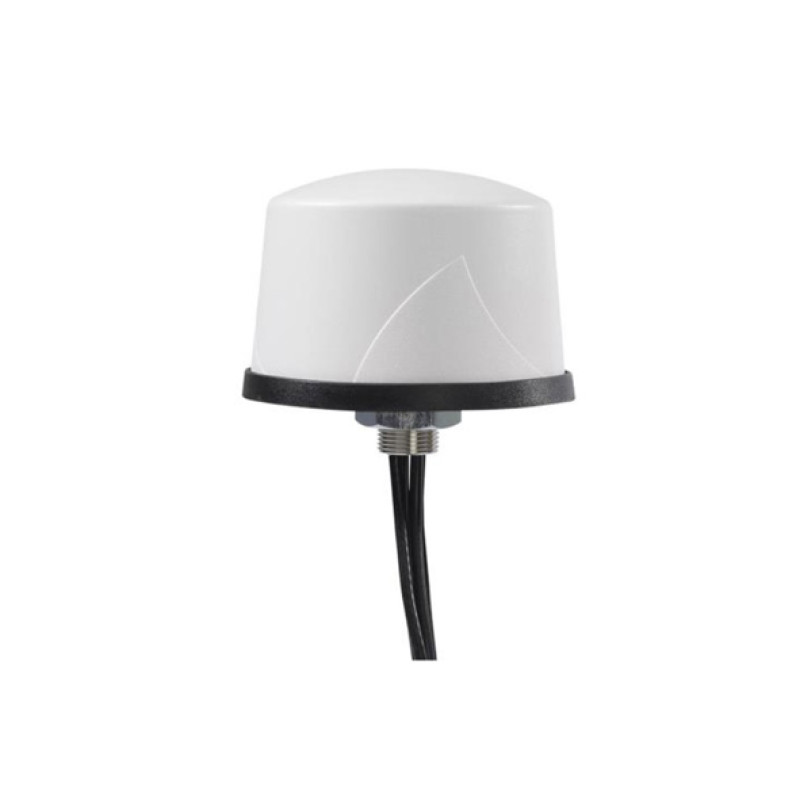

Westermo 3623-0816 WLAN Antenna
- Frequency: WLAN (2.4 GHz/5.9 GHz), LTE (698 GHz/5950 MHz), GPS (1565/1608 MHz)
- Antenna Type: Coach Multiband ITS Antenna
- Antenna gain: WLAN (9 dBi), LTE (2.4/6.8 dBi), GNSS @3.0 VDC (26 dB)
- Connector: 6 x QMA plug with pigtails (48cm)
- IP67-rated design (Aluminium base and UV-stable rugged thermoplastics)
- 1-inch OD, 3/4-inch long (.75”) zinc stud mount with jam nut
- -40 to 85°C operating temperature range
- Brand: WESTERMO
- Product Code: 3623-0816
.png)
Description
You can also find the 3623-0811, 3623-0812, 3623-0813, 3623-0814, 3623-0810, and 3623-0815 models in the Cables and Antennas.
Explore our extensive range of industrial automation products such as Westermo 3623-0816 WLAN Antenna in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Antenna Characteristics | |
|---|---|
| Frequency | WLAN 2.4-2.5 GHz/4.9-5.9 GHz; LTE 698-960 MHz/1710-2700/3400-3800/5150-5950 MHz; GPS: 1565-1608 MHz |
| Antenna Type | Coach Multiband ITS Antenna |
| Antenna Gain | WLAN 9 dBi, LTE 2.4..6.8 dBi, GNSS @3.0 VDC: 26 dB (typical) |
| Connector | 6 x QMA plug with pigtailes (48cm) |
| Impedance | 50 Ω |
| HPBW/Horizontal | - |
| HPBW/Vertical | - |
| Polarization | Linear Vertical, GNSS: Right hand circular |
| Power Handling | 50 W max. |
| V.S.W.R. | - |
| Physical Characteristics | |
| Dimensions | D, H: 137mm, 90mm |
| Operating Temperature | -45°C to +85°C |
| Storage Temperature | - |
| Length | - |
| Cable Length | 48 cm |
| Weight | 1.4kg |
| Ambient Relative Humidity | - |
| Housing | Aluminium base, Radome: UV-stable rugged thermoplastics |
| IP Rating | IP67 |
