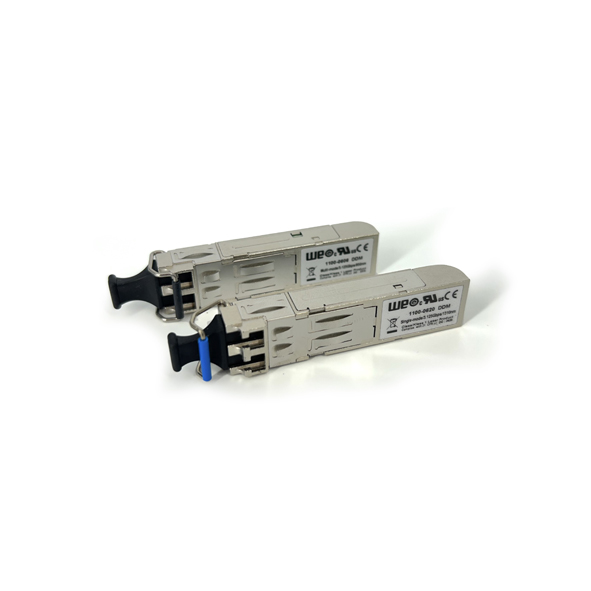

Westermo 2.5GSLC20 Gigabit SFP Module
- Suitable for use with the Lynx-3510 series
- 1 x 2.5 Gbit/s port (Singlemode, Duplex LC connector)
- 20 KM Typical data transmission distance on fiber
- Diagnostics: ±3°C Temperature at ± 0.1 VDC Voltage
- Maximum transmit wavelength: 1310 nm
- Wide operating temperature range, -40 to +85°C
Description
The 2.5 Gbit/s SFPs are ideal for high-bandwidth, short- and
long-range applications. These models utilize single-mode fiber cables with a 9
μm core and come equipped with DDM functionality fully integrated into
WeOS. This feature enables monitoring critical parameters like temperature,
TX/RX power, and voltage, ensuring optimal performance.
With industrial networks transmitting ever-increasing
amounts of data, the 2.5 Gbit/s fiber links are a reliable option to connect
data-intensive sites across long distances. Backbones with high bandwidth can
now be established over lengthy distances. The SFPs are compatible with the
Lynx-3510 series platform and are available in multiple variants, covering
ranges from 500 m to 80 km.
To meet the high demands of mission-critical applications,
all SFP transceivers undergo thorough environmental testing to ensure they can
perform under the harshest conditions. Additionally, their functionality is
pushed to the limit to guarantee availability and reliability.
WeOS, the Westermo operating system, is designed to meet the
toughest requirements, and full support for all offered transceivers is a
crucial aspect. All features of WeOS are extensively tested and verified to be
fully supported on any WeOS device with a Westermo transceiver installed.
You can also find the 2.5GMLC.5, 2.5GSLC40, and 2.5GSLC80 models
in the SFP Transceivers.
Enjoy the ease of online inquiries for the Westermo 2.5GSLC20 Gigabit SFP Module. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 1 x 2.5 Gbit/s port (Singlemode) |
| Connector | Duplex LC connector |
| Typical Distance | 20 KM |
| POWER REQUIREMENTS | |
| Power Information | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | Dimensions device (W x H x D) 14 x 13 x 57 mm (0.55 x 0.51 x 2.24 inches), Dimensions protrosion (W x H x D) 14 x 13 x 9 mm (0.55 x 0.51 x 0.35 inches) |
| Weight | - |
| Operating Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Ambient Relative Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN 50121-4/IEC 62236-4, Railway signaling and telecommunications apparatus; Safety: EN/IEC 60825-1, Laser products - part 1: Equipment classification and requirement, EN/IEC 60825-2, Laser products - part 2: Safety of optical fiber communication systems, EN/IEC/UL 62368-1, Audio/video, information and communication technology equipment |
| MTBF | - |
