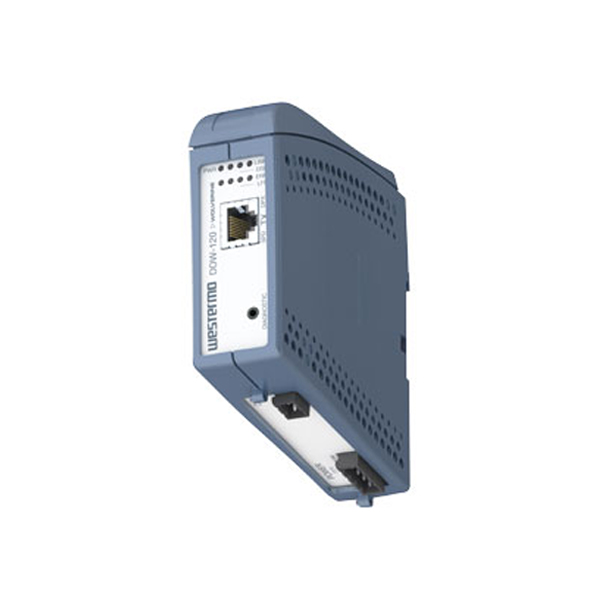

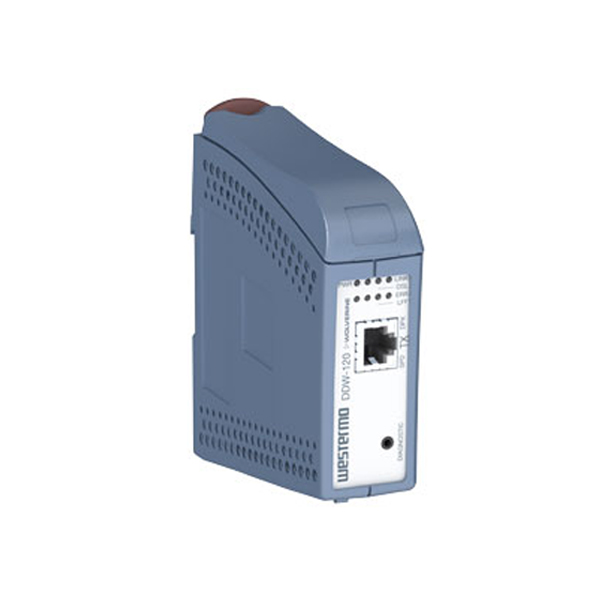

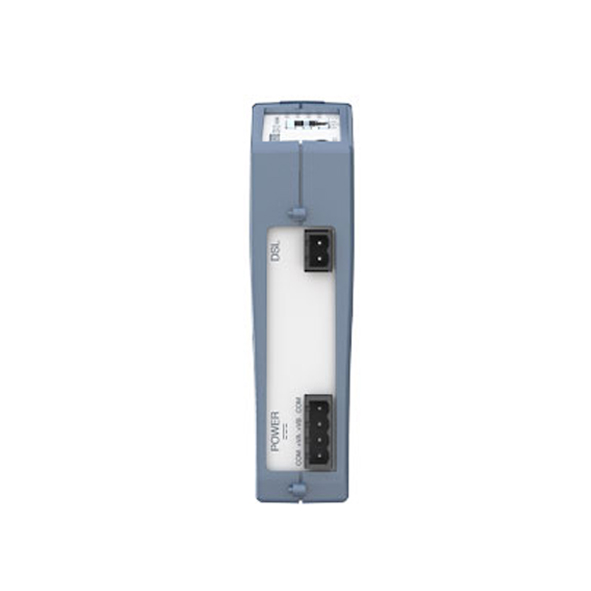

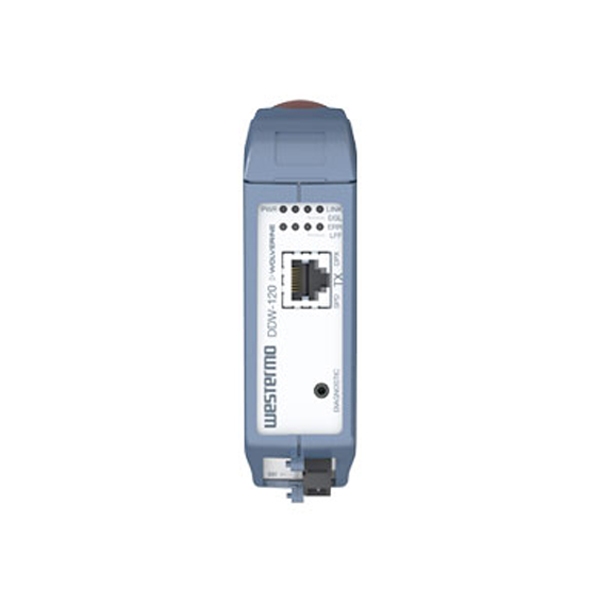

Name: Westermo DDW-120 Industrial Ethernet Extender
Brand: WESTERMO
Availability: OutOfStock

Westermo DDW-120 Industrial Ethernet Extender

Industrial Ethernet SHDSL Extender
1 x 2 position detachable screw terminal (192 kbit/s to 15,3 Mbit/s)
1 x Diagnostic port (2.5 mm jack, 115.2 kbit/s)
1 x 10 Mbit/s, 100 Mbit/s Ethernet TX Port (RJ-45, manual or auto)
DIN-rail mount installation design
Dual 10 - 60 VDC power input with Total galvanic isolation
-40 to +70°C operating temperature range

Brand: WESTERMO
Model: 3621-0110

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 70°C)
Relative Humidity (5% to 95% RH)
IP protection (IP21)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)

Railway Transportation
Road Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

Westermo DDW-002-B1 Industrial Ethernet Extender/Bridge

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142 Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142-12VDC Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142-12VDC-BP Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142-485 Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142-EX Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-220 Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-225 Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Ethernet Extenders , Point-to-Point Extenders , Industrial DSL Ethernet Extender , Industrial Data Communications , Road Transportation Products , Railway Transportation Products , Extenders , Westermo DDW-120

The Wolverine series of Ethernet extenders allows cost-effective Ethernet networks to be created over long distances, at data rates of up to 15.3 Mbit/s. The SHDSL technology makes it possible to reuse many types of pre-existing copper cables. This can lead to considerable financial savings as expensive fiber cables do not need to be installed. Depending on cable characteristics, distances up to 15 km (9.3 mi) can be achieved. Configuration of the DDW-120 is performed using only DIP switches, which ensures rapid installation.

The Wolverine DDW-120 is designed for use in heavy-duty industrial applications. The wide power range, comprehensive diagnostics, and TBU transient protection make it ideal for installation and monitoring in industrial applications.

Only industrial-grade components are used which gives the DDW-120 an MTBF of 1.180,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts. The DDW-120 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

The DDW-120 is transparent for multicast addressing and VLAN packets, allows VPN pass-through for IPsec, and can be used with protocols like MODBUS/TCP and Profinet IO. Line diagnostics can be collected using a simple plug-in diagnostic cable and DDW tool, allowing the user to determine the quality of the line in use. With the DDW tool, it is also possible to simulate real cables with different noise models and characteristics. The link fault forward function helps to transfer indications of media failure onto connected ports to ensure that the DDW-120 can be used in resilient network structures.

You can also find the Viper-002-T1-PL1 and Viper-002-T1G-PL1 models in the Point-To-Point Extenders.

Easy World Automation offers the easiest way to buy the Westermo DDW-120 Industrial Ethernet Extender in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports	1 Port
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port (or 10 Mbit/s)
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 1 x 2 position detachable screw terminal (192 kbit/s to 15,3 Mbit/s), 1 x Diagnostic port (2.5 mm jack, 115.2 kbit/s)
switch and hub : Features and capabilities
Backup	No
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	330 mA @ 12 VDC, 155 mA @ 24 VDC, 80 mA @ 48 VDC
Power Input Plugin ( Redundant )	No
Input Voltage	12 to 48 VDC
Operating Voltage	10 to 60 VDC
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	1.180,000 hours
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	-
Switch type	-
Port Aggregation	-
switch and hub : Physical Characteristics
Dimensions	34 x 123 x 122 mm (1.34 x 4.84 x 4.80)
Housing	-
Installation	DIN-rail mounting
Operating Temperature	-40 to +70ºC (-40 to +158ºF)
Operation Humidity	5 to 95% relative humidity
Standards and Certifications	EMC: EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission standard for industiral environments, EN 50121-4, Railway signalling and telecommunications apparatus; Safety: UL 60950-1, IT equipment; SHDSL: ITU-T G.991.2, G.SHDSL and G.SHDSL.bis standard; Environmental: NEMA TS 2, Traffic Controller Assemblies with NTCIP Requirements; IP21; MIL-HDBK-217K; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27
Storage Temperature	-40 to +70ºC (-40 to +158ºF)
Weight	0.2 kg
switch and hub : Standards and protocols
Protocols and work standards	-
Protocols and management standards	-
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No

Datasheet
