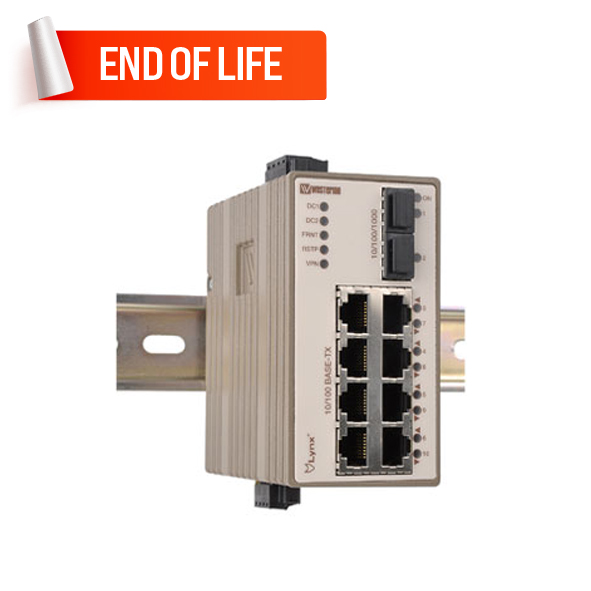

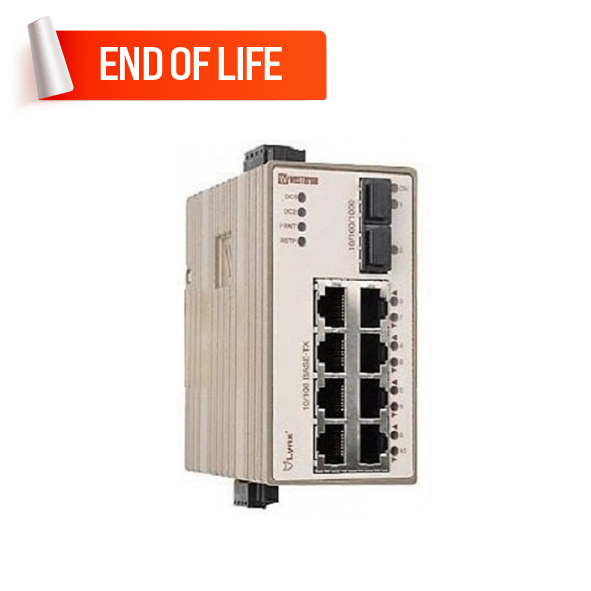

Westermo L210-F2G-EX Managed Ethernet Switch

Westermo L210-F2G-EX Managed Ethernet Switch
Westermo L210-F2G-EX Managed Ethernet Switch
Westermo L210-F2G-EX Managed Ethernet Switch
Westermo L210-F2G-EX Managed Ethernet Switch
Westermo L210-F2G-EX Managed Ethernet Switch

  • EX Approved Managed Ethernet Switch
  • Layer 3 functionality switching and routing
  • 8 x 10 Mbit/s, 100 Mbit/s Copper ports (RJ-45 connector)
  • 2 x 100/1000 Mbit/s SFP Ports, Ethernet FX (LC) or TX SFP (RJ-45)
  • IP40-rated Zinc body material design
  • DIN rail mount installation
  • 24 to 48 VDC Redundant dual inputs (Wide Range 19 to 60 VDC)
  • -40 to +70°C operating temperature range

0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5% to 95% RH)
  • IP protection (IP40)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Oil & Gas
  • Railway Transportation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Westermo L108-F2G-S2 Managed Ethernet Switch
Quickview
Westermo L108-F2G-S2 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L105-S1 Managed Ethernet Switch
Quickview
Westermo L105-S1 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L105-S1-EX Managed Ethernet Switch
Quickview
Westermo L105-S1-EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-F2G EX Managed Ethernet Switch
Quickview
Westermo L106-F2G EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-F2G Managed Ethernet Switch
Quickview
Westermo L106-F2G Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-S2 Managed Ethernet Switch
Quickview
Westermo L106-S2 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-S2-EX Managed Ethernet Switch
Quickview
Westermo L106-S2-EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L108-F2G-S2-12VDC Managed Ethernet Switch
Quickview
Westermo L108-F2G-S2-12VDC Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Ethernet Switches , Managed Layer 3 Switches , Managed Layer 2 Switches , Managed Switches , Layer 3 Switches , Layer 2 Switches , Industrial Data Communications , Marine Products , Railway Transportation Products , Oil & Gas Products , Ethernet Switches , Routers , Switches , Westermo L210-F2G-EX

Lynx 210 is a layer 3 managed industrial Ethernet switch, powered by the Westermo WeOS network operating. Independently tested for IECEX and ATEX by Baseefa, Lynx is the perfect solution for hazardous area applications in any part of the world. Lynx is the most compact and has the lowest power requirements in this class of switch. Lynx has 8 10/100 Mbit/s ports in addition to 2 ports which can be fitted with Gbit or 100 Mbit SFP transceivers.

Only industrial-grade components are used, which gives Lynx an MTBF of 630,000 hours and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.


End of Life Product - No Replacement

Please note that the L210-F2G-EX has been phased out. You can explore the L210-F2G, L210-F2G-12VDC, L206-F2G, L110-F2G-12VDC, and L106-F2G models in the Managed Ethernet Switches.


Discover industrial automation solutions appropriate to your needs and easily inquire about the Westermo L210-F2G-EX Managed Ethernet Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 8 Ports (or 10 Mbit/s)
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports Yes : 2 Ports, Ethernet FX (LC) or TX SFP (RJ-45)
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x Digital I/O channel (4-position detachable screw terminal), 1 x Console Port (2.5 mm jack)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes : For 8 RJ-45 ports
switch and hub : Power Requirements
Input Current 240 mA @ 24 VDC, 120 mA @ 48 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 24 to 48 VDC (with Galvanic isolation to all ports)
Operating Voltage 19 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF MIL-HDBK-217K: 630,000 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 52 x 100 x 101 mm (2.04 x 3.93 x 3.97 in)
Housing Metal
Installation Din-rail mounting
Operating Temperature -40 to +70°C (-40 to +158°F)
Operation Humidity 5-95% relative humidity
Standards and Certifications MIL-HDBK-217K; Ingress protection: IP40; EMC: EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, EN 55022 +A1, Emission IT equipment, EN 55024, Immunity IT equipment, FCC part 15 Class A, EN 50121-4, Railway signalling and telecommunications apparatus, IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: UL/IEC/EN 60950-1, IT equipment; Marine: DNV Standard for Certification no. 2.4; IECEx: Explosive atmosphere, IEC 60079-0, General requirements, IEC 60079-15, Equipment protected by type of protection “n”, IEC 60079-28, Protection of equipment and transmission systems using optical radiation; ATEX: Explosive atmosphere, EN 60079-0, General requirements, EN 60079-15, Equipment protected by type of protection “n”, EN 60079-28, Protection of equipment and transmission systems using optical radiation; Class1 Div 2: FM Approval; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6
Storage Temperature -50 to +85°C (-58 to +185°F)
Weight 0.7Kg
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards IGMPv2/v3 snooping, HTTP, HTTPS or CLI (SSHv2 or Telnet), SNMPv1/v2c/v3, OSPFv2, RIPv1/v2, Robust VRRP, Static Multicast Routing, NAT and 1-1 NAT, Proxy ARP for 1-1 NAT, Port Forwarding, IKEv1, ESP, VPN failover, Web interface (HTTP and HTTPS or CLI (SSHv2 or Telnet)), Flexible management of configuration and log files, SNTP (NTP client), PPPoE client, DHCP client, DHCP server including option 82, DHCP relay agent including option 82
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
