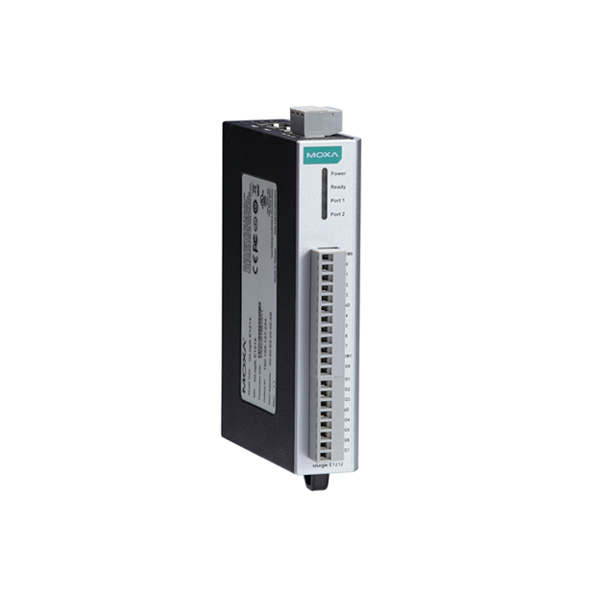

MOXA ioLogik E1242 Ethernet Remote I/O

MOXA ioLogik E1242 Ethernet Remote I/O
MOXA ioLogik E1242 Ethernet Remote I/O
MOXA ioLogik E1242 Ethernet Remote I/O
MOXA ioLogik E1242 Ethernet Remote I/O
MOXA ioLogik E1242 Ethernet Remote I/O
  • 4 x Digital Input Channels
  • 4 x Configurable DIO Channels (Sink)
  • 4 x Analog Input Channels
  • 2 x 10/100BaseT(X) Switch Ports (RJ45 connector)
  • Plastic body design
  • Supports Modbus TCP, EtherNet/IP, MX-AOPC, and SNMP v1/v2c
  • 12 to 36 VDC input power range
  • DIN-rail and Wall mounting
  • -10 to 60°C operating temperature

  • Brand: MOXA
  • Model: ioLogik E1242
0 reviews • Write a review
Datasheet User Manual User Guide
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Freefall (IEC 60068-2-32)
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA ioLogik E1210 Ethernet Remote I/O
Quickview
MOXA ioLogik E1210 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1211 Ethernet Remote I/O
Quickview
MOXA ioLogik E1211 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1211-T Ethernet Remote I/O
Quickview
MOXA ioLogik E1211-T Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1212 Ethernet Remote I/O
Quickview
MOXA ioLogik E1212 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1212-T Ethernet Remote I/O
Quickview
MOXA ioLogik E1212-T Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1213 Ethernet Remote I/O
Quickview
MOXA ioLogik E1213 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1213-T Ethernet Remote I/O
Quickview
MOXA ioLogik E1213-T Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1214 Ethernet Remote I/O
Quickview
MOXA ioLogik E1214 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Controllers & I/Os , Universal Controllers & I/Os , Universal Controllers , Universal I/Os , Controllers , Ethernet Remote I/O , Remote I/O Modules , I/O Modules , I/Os , Modules , Industrial Automation Solutions , Remote Automation , Oil & Gas Products , MOXA ioLogik E1200 Series

The ioLogik E1200 Series supports the most often-used protocols for retrieving I/O data, making it capable of handling a wide variety of applications. Most IT engineers use SNMP or RESTful API protocols, but OT engineers are more familiar with OT-based protocols, such as Modbus and EtherNet/IP. Moxa's Smart I/O makes it possible for both IT and OT engineers to conveniently retrieve data from the same I/O device. The ioLogik E1200 Series speaks six different protocols, including Modbus TCP, EtherNet/IP, and Moxa AOPC for OT engineers, as well as SNMP, RESTful API, and Moxa MXIO library for IT engineers. The ioLogik E1200 retrieves I/O data and converts the data to any of these protocols at the same time, allowing you to get your applications connected easily and effortlessly.


You can also find the ioLogik E1240-T, ioLogik E1214-T, ioLogik E1241-T, and ioLogik E1211 models in the Remote I/O.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA ioLogik E1242 Ethernet Remote I/O through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Remote I/O : Interface
Digital Input and Output Yes : 4 x Digital Input Channels
Adjustable digital input and output Yes : 4 x Channels (Sink)
Analog Input and Output Yes : 4 x Analog Input Channels
Relays No
Thermal sensor input (RTD) No
Thermocouple input No
LAN Yes : 2 x 10/100BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection 1.5 kV (built-in)
Serial port No
Isolation Yes : 3k VDC or 2k Vrms
Buttons Reset button
Remote I/O : Serial Interface
Connector -
Serial Standards -
Serial Communication Parameters -
Serial Signals -
Remote I/O : Security
Security Functions Security: Access control list, Authentication: Local database
Remote I/O : Standards and protocols
Protocols Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, EtherNet/IP Adapter
Remote I/O : General
Compatible Softwares MX-AOPC UA Server, ioSearch utility, MXIO
Management RESTful API, SNMPv1/v2c, SNMPv1 Trap, HTTP, DHCP Client, BOOTP, IPv4, TCP/IP, UDP
MTBF 502,210 hrs
Remote I/O : Power Requirements
Power Connector Screw-fastened Euroblock terminal
Input Voltage 12 to 36 VDC
Power Consumption 139 mA @ 24 VDC
Remote I/O : LED Indicators
LED Indicators Power, Ready, Port 1, Port 2
Remote I/O : Physical Characteristics
Housing Plastic
Dimensions 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
Standards and Certifications EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 25; Safety: UL 508; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
Installation DIN-rail mounting, Wall mounting
Operating Temperature -10 to 60°C (14 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5% to %95 Non-condensing
Weight 200 g (0.44 lb)
Altitude 4000 m
