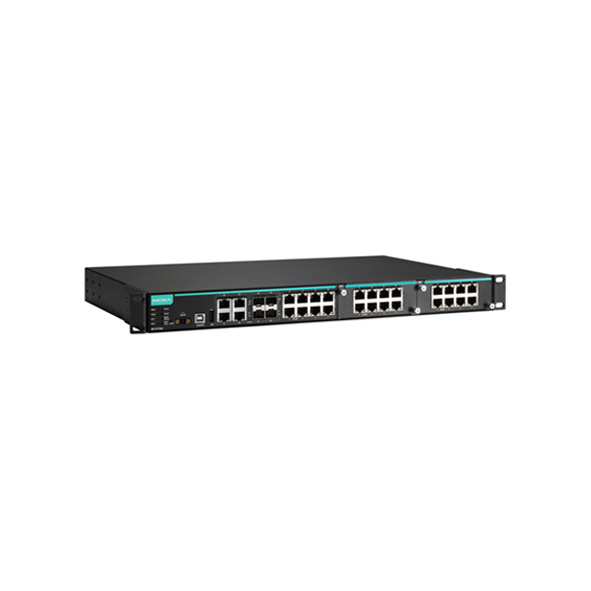

MOXA IKS-6728A-4GTXSFP-48-T Rackmount Ethernet Switch

MOXA IKS-6728A-4GTXSFP-48-T Rackmount Ethernet Switch
MOXA IKS-6728A-4GTXSFP-48-T Rackmount Ethernet Switch
MOXA IKS-6728A-4GTXSFP-48-T Rackmount Ethernet Switch
MOXA IKS-6728A-4GTXSFP-48-T Rackmount Ethernet Switch
MOXA IKS-6728A-4GTXSFP-48-T Rackmount Ethernet Switch
  • Modular Managed Ethernet Switch
  • 8 x 10/100BaseT(X) Ports (RJ45 connector), Up to 24 Ports
  • 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
  • 2 x Modular slots for any 8-port or 6-port Fast Ethernet modules
  • Rackmount installation design
  • 48 VDC input power range
  • -40 to 75°C operating temperature
  • Brand: MOXA
  • Model: IKS-6728A-4GTXSFP-48-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
  • Freefall (IEC 60068-2-32)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Railway Transportation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Industrial Data Communications , Managed Ethernet Switches , Layer 2 Managed Switches , Layer 2 Switches , Managed Switches , Rackmount Switches , Rackmount Ethernet Switches , Industrial Ethernet Switches , Marine Products , Railway Transportation Products , Switches , MOXA IKS-6728A Series

The IKS-6728A Series is designed to meet the demands of mission-critical applications for business and industry. The IKS-6728A and IKS-6728A-8PoE come with up to 24 10/100BaseT(X), or PoE/PoE+, and 4 combo Gigabit Ethernet ports. The IKS-6728A-8PoE Ethernet switches provide up to 30 watts of power per PoE+ port in standard mode, and also support high-power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and rugged IP phones.

IKS-6728A-8PoE Ethernet switches support two types of power input sources: 48 VDC for PoE+ ports and system power, and 110/220 VAC for system power. These Ethernet switches also support a variety of management functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management, PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN, QoS, RMON, bandwidth management, and port mirroring. The IKS-6728A-8PoE is designed especially for harsh outdoor applications with 3kV surge protection to ensure the uninterrupted reliability of PoE systems.



You can also find the IKS-6728A-4GTXSFP-HV-HV-T, IKS-6728A-8PoE-4GTXSFP-48-48-T, and IKS-6728A-4GTXSFP-48-48-T models in the Rackmount Ethernet Switches.



Inquire about the MOXA IKS-6728A-4GTXSFP-48-T Rackmount Ethernet Switch, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 28 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 8 Ports (Up to 24 Ports)
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Up to 12 ports
100Mb Fiber optic single mode (Megabit) Ports Up to 12 ports
100Mb SFP Fiber optic (Megabit) Ports Up to 20 Slots
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP), 2 x Modular slots for any 8-port or 6-port Fast Ethernet modules, 1 x Alarm Contact Channel, 1 x USB Port (Type A connector), 1 x Console Port (Type B connector)
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port No
switch and hub : Power Requirements
Input Current 1.1/0.6 A @ 24/48 VDC
Power Input Plugin ( Redundant ) No
Input Voltage 48 VDC
Operating Voltage 36 to 72 VDC
Power Consumption 26.4/28.8 W @ 24/48 VDC
switch and hub : General
Fan / Fanless Fanless
MTBF 344,767 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)
Housing -
Installation Rack Mounting
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Freefall: IEC 60068-2-32; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Maritime: ABS, CCS, DNV, LR, NK; Safety: EN 60950-1, UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 4100 g (9.05 lb)
switch and hub : Standards and protocols
Protocols and work standards Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP, PROFINET
Protocols and management standards Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
