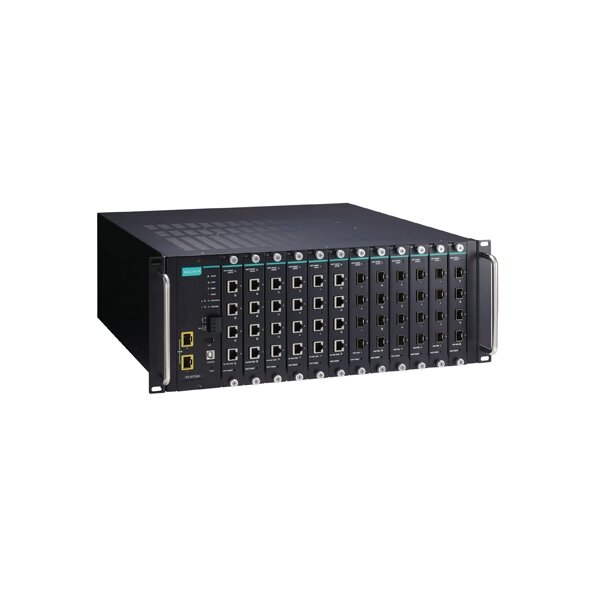

MOXA ICS-G7750A-2XG-HV-HV Rackmount Ethernet Switches

MOXA ICS-G7750A-2XG-HV-HV Rackmount Ethernet Switches
MOXA ICS-G7750A-2XG-HV-HV Rackmount Ethernet Switches
MOXA ICS-G7750A-2XG-HV-HV Rackmount Ethernet Switches
MOXA ICS-G7750A-2XG-HV-HV Rackmount Ethernet Switches
MOXA ICS-G7750A-2XG-HV-HV Rackmount Ethernet Switches

  • Modular Managed Ethernet Switch
  • 2 x 10GbE SFP+ Slots
  • 12 x Slots for 4-port GE interface modules
  • 110 to 220 VAC Redundant dual inputs
  • Rackmount installation
  • -10 to 60°C operating temperature range

  • Brand: MOXA
  • Model: ICS-G7750A-2XG-HV-HV
0 reviews • Write a review
Datasheet
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Layer 2 Switches , PoE Switches , PoE , Switches , Rackmount Switches , Industrial Data Communications , Industrial Ethernet Switches , Railway Transportation Products , Rackmount Ethernet Switches , MOXA ICS-G7750A Series

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7750A Series full Gigabit backbone switches’ modular design makes network planning easy and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports plus 2 10 Gigabit Ethernet ports.

The ICS-G7750A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.


You can also find the ICS-G7748A-HV-HV and ICS-G7752A-4XG-HV-HV in the Rackmount Ethernet Switches.


Experience the convenient way to purchase the MOXA ICS-G7750A-2XG-HV-HV Rackmount Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

switch and hub : Interface
Number of ports 50 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Up to 48 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports Up to 48 Slots
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports Up to 48 Ports (with IM-G7000A-4PoE module)
Other ports Yes : 2 x 10GbE SFP+ Slots, 12 x Slots for 4-port GE interface modules, 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector)
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port No
switch and hub : Power Requirements
Input Current 1.1/0.72 A @ 110/220 VAC, Note: These are the input current ratings for the device with the maximum number of modules installed.
Power Input Plugin ( Redundant ) Yes
Input Voltage 110/220 VAC
Operating Voltage 85 to 264 VAC
Power Consumption 109.68/117.8 W @ 110/220 VAC, Note: These are the power consumption ratings for the device with the maximum number of modules installed.
switch and hub : General
Fan / Fanless Fanless
MTBF 282,329 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in)
Housing -
Installation Rack Mounting
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: EN 61010-2-201, UL 61010-2-201; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 12,900 g (28.5 lb)
switch and hub : Standards and protocols
Protocols and work standards Link Aggregation, MRP, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP
Protocols and management standards ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
