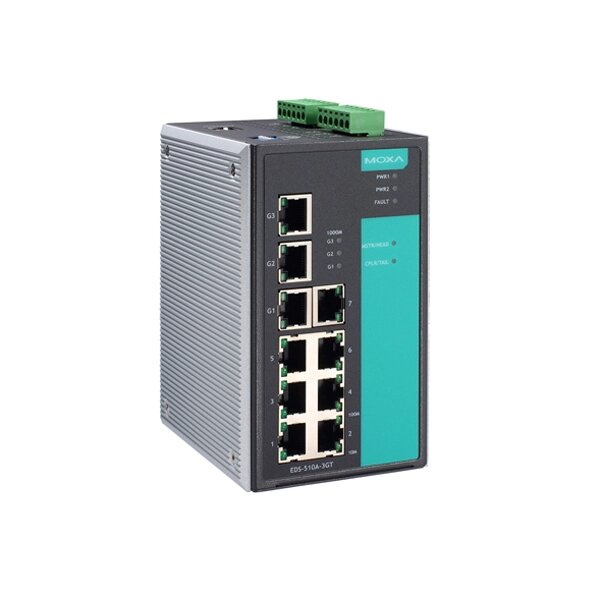

MOXA EDS-510A-3GT-T Managed Ethernet Switches

MOXA EDS-510A-3GT-T Managed Ethernet Switches
MOXA EDS-510A-3GT-T Managed Ethernet Switches
MOXA EDS-510A-3GT-T Managed Ethernet Switches
MOXA EDS-510A-3GT-T Managed Ethernet Switches
MOXA EDS-510A-3GT-T Managed Ethernet Switches
  • 3 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 7 x 10/100BaseT(X) Ports (RJ45 connector)
  • 24 VDC Redundant dual power inputs
  • Din-rail and Wall mounting
  • IP30-rated Metal body design

  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: EDS-510A-3GT-T
0 reviews • Write a review
Datasheet User Guide
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Freefall (IEC 60068-2-31)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Factory Automation
  • Marine
  • Railway Transportation
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Managed Ethernet Switches , Managed Switches , Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Marine Products , Oil & Gas Products , Railway Transportation Products , Road Transportation Products , Factory Automation Products , MOXA EDS-510A Series

The EDS-510A Gigabit managed redundant Ethernet switches are equipped with up to 3 Gigabit Ethernet ports, making them ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The Ethernet redundancy technologies, Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP, can increase system reliability and the availability of your network backbone. The EDS-510A Series is designed especially for communication-demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction.


You can also find the EDS-510A-1GT2SFP-T, EDS-510A-1GT2SFP, EDS-510A-3SFP, and EDS-510A-3GT models in the DIN-Rail Ethernet Switches.


You can Buy the MOXA EDS-510A-3GT-T Managed Ethernet Switches via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

switch and hub : Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 7 Ports
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 3 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 2 x Alarm Contact Channels, 2 x Digital Input Channels (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x RS-232 Console Port (10-pin RJ45 connector)
switch and hub : Features and capabilities
Backup Yes : ABC-01
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.48 A @ 24 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 24 VDC
Operating Voltage 12 to 45 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 831,649 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: EN 62368-1 (LVD), UL 60950-1, UL 508; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Maritime: DNV; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1170 g (2.58 lb)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP, 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
