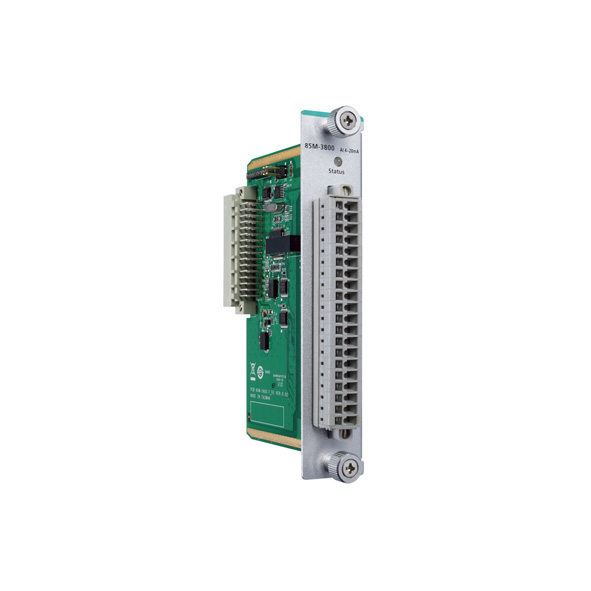

MOXA 85M-3801-T I/O Module

MOXA 85M-3801-T I/O Module
MOXA 85M-3801-T I/O Module
MOXA 85M-3801-T I/O Module
MOXA 85M-3801-T I/O Module
MOXA 85M-3801-T I/O Module

  • 8 x Analog Input Channels (4-20 mA input type)
  • Analog Input Sampling Rate (Per channel): 5k samples/sec
  • Compatible with ioPAC 8600 or 8500 Series
  • Rugged and compact design for harsh environments
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: 85M-3801-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Controllers & I/Os , Rugged Controllers & I/Os , Rugged Controllers , Rugged I/Os , Controllers , Remote I/O , Industrial Automation Solutions , Railway Transportation Products , Remote Automation , Smart Remote I/O , I/Os , MOXA ioPAC 8500 Series (85M) Modules

Moxa’s ioPAC 8500 Series 85M Modules can be installed in both ioPAC 8500 and ioPAC 8600 Series devices. Modules are available with DI/Os, AIs, Fast AIs, and serial interfaces, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. All 85M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and a portion of the EN 50155 specifications. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.


You can also find the 85M-2600-T and 85M-3811-T models in the Smart Remote I/O.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA 85M-3801-T I/O Module through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

REMOTE I/O MODULES : INPUT/OUTPUT INTERFACE
Digital Input and Output No
Analog Input and Output Yes : 8 x Analog Input Channels (4-20 mA input type)
System Power Input Channels No
Thermocouple Channels No
Field Power Input and Output No
Relays No
RTD Channels No
Ethernet Ports No
CAN Ports No
Serial Ports No
Isolation Yes : 3k VDC or 2k Vrms
REMOTE I/O MODULES : SERIAL INTERFACE
Connector -
Serial Standards -
Serial Communication Parameters -
Serial Signals -
REMOTE I/O MODULES : GENERAL
MTBF 1,426,112 hrs
REMOTE I/O MODULES : POWER REQUIREMENTS
Power Connector -
Input Voltage -
Power Consumption 43.8 mA @ 24 VDC
REMOTE I/O MODULES : PHYSICAL CHARACTERISTICS
Housing -
Dimensions 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
Installation -
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight Under 80 g
Ambient Relative Humidity 5 to 95% (non-condensing)
Operating Temperature -40 to 75°C (-40 to 167°F)
Standards and Certifications EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia SR332
Altitude 2000 m
