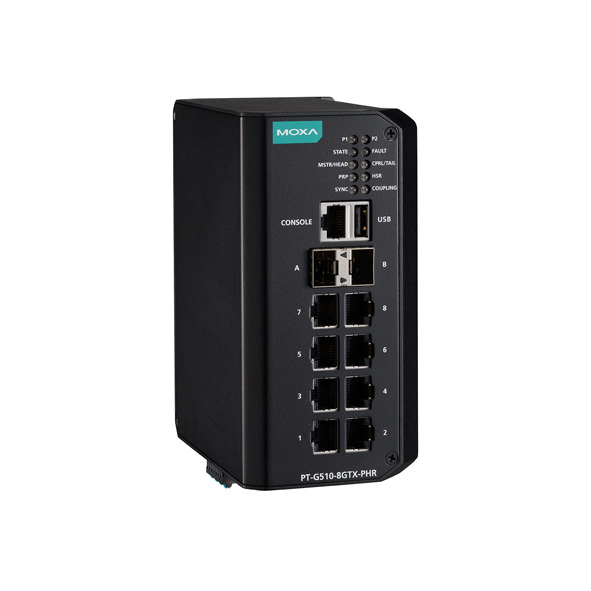

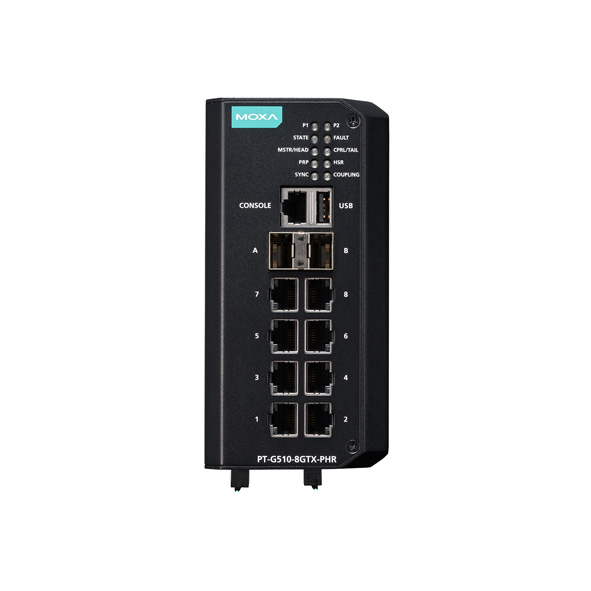

MOXA PT-G510-8GTX-PHR-HV Managed Ethernet Switch

MOXA PT-G510-8GTX-PHR-HV Managed Ethernet Switch
MOXA PT-G510-8GTX-PHR-HV Managed Ethernet Switch
MOXA PT-G510-8GTX-PHR-HV Managed Ethernet Switch
MOXA PT-G510-8GTX-PHR-HV Managed Ethernet Switch
MOXA PT-G510-8GTX-PHR-HV Managed Ethernet Switch

  • 8 x 100/1000BaseT(X) Ports (RJ45 connector)
  • 2 x 100/1000BaseSFP Ports
  • 110-220 VAC/VDC dual power inputs
  • DIN-rail mounting
  • -40 to 75°C operating temperature range

  • Brand: MOXA
  • Model: PT-G510-8GTX-PHR-HV
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
  • Factory Automation
  • Railway Transportation
  • Power Utility
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Managed Switches , Layer 2 Switches , DIN-Rail Ethernet Switches , IEC 61850-3 Ethernet Switches , Industrial Data Communications , Industrial Ethernet Switches , Factory Automation Products , Railway Transportation Products , Power Utility Products , Switches , MOXA PT-G510 Series

The PT-G510 Series is designed to deliver the highest level of system availability and data integrity for mission-critical applications in digital substations that demand zero-recovery-time redundancy. The PT-G510 Series supports PRP/HSR to achieve seamless redundancy for substations and process automation systems. Hardware-based IEEE 1588v2 PTP is also supported for time-critical applications. Featuring a highly durable design, the PT-G510 Series is certified for IEC 61850-3 Edition 2 Class 2 to fulfill demanding requirements in substation applications.

The PT-G510 Series comes with eight 100/1000BaseT(X) Ethernet ports or 100/1000BaseSFP slots with two dedicated 100/1000BaseSFP PRP/HSR ports combined with support for a complete redundancy protocol suite including PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability. The PT-G510 Series further supports GOOSE Check to efficiently monitor GOOSE packets and features a built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA systems.



You can also find the PT-G510-8GTX-PHR-HV-CT, PT-G510-8GTX-PHR-WV, and PT-G510-8GTX-PHR-WV-CT models in the DIN-Rail Ethernet Switches.



Easy World Automation offers the easiest way to buy the MOXA PT-G510-8GTX-PHR-HV Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 8 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports Yes : 2 Ports
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x RS-232 Console Port (RJ45 connector), 1 x USB Port (Type A connector)
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.5 A @ 110-220 VAC, 0.3 A @ 110-220 VDC
Power Input Plugin ( Redundant ) No
Input Voltage 110-220 VAC, 110-220 VDC (88 to 300 VDC, 85 to 264 VAC), Dual power inputs
Operating Voltage 110-220 VDC/VAC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 688,584 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in)
Housing -
Installation DIN-rail mounting
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, EN 61000-4-11; Power Substation: IEC 61850-3 Edition 2.0 Class 2, IEEE 1613; Railway: EN 50121-4; Safety: IEC 62368-1, UL 62368-1; IP30; Telcordia (Bellcore) Standard TR/SR
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1476 g (3.25 lb)
switch and hub : Standards and protocols
Protocols and work standards Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring, MRP, HSR, PRP, Coupling, RSTP grouping
Protocols and management standards HTTPS, Dying Gasp, Back Pressure, Flow Control, DHCP Option 66/67/82, Fiber check, Flow control, LLDP, Port Mirror, SNMP, Inform, BOOTP, DHCP Server/Client, HTTP, IPv4/IPv6, RARP, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, IGMP v1/v2/v3, GMRP, GVRP, 802.1Q, QinQ VLAN
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
