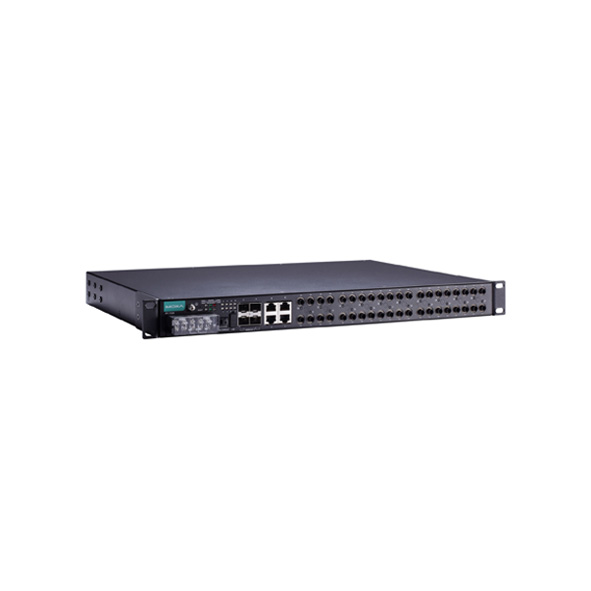

MOXA PT-7528-12MSC-12TX-4GSFP-HV Managed Rackmount Ethernet Switch

MOXA PT-7528-12MSC-12TX-4GSFP-HV Managed Rackmount Ethernet Switch
MOXA PT-7528-12MSC-12TX-4GSFP-HV Managed Rackmount Ethernet Switch
MOXA PT-7528-12MSC-12TX-4GSFP-HV Managed Rackmount Ethernet Switch
MOXA PT-7528-12MSC-12TX-4GSFP-HV Managed Rackmount Ethernet Switch
MOXA PT-7528-12MSC-12TX-4GSFP-HV Managed Rackmount Ethernet Switch

  • 12 x 10/100BaseT(X) Ports (RJ45 connector)
  • 12 x 100BaseFX Ports (multi-mode SC connector)
  • 4 x 100/1000BaseSFP Ports
  • 5 KM Typical data transmission distance on fiber
  • 110/220 VAC/VDC input power range
  • IP40-rated Aluminum body design
  • Rackmount installation design
  • -40 to 85°C operating temperature

  • Brand: MOXA
  • Model: PT-7528-12MSC-12TX-4GSFP-HV
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Factory Automation
  • Power Utility
  • Railway Transportation
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , Layer 2 Switches , Rackmount Switches , Managed Rackmount Ethernet Switches , Rackmount Ethernet Switches , IEC 61850-3 Ethernet Switches , Managed Ethernet Switches , Managed Switches , Industrial Data Communications , Industrial Ethernet Switches , Factory Automation Products , Power Utility Products , Railway Transportation Products , Road Transportation Products , Rackmount , Switches , MOXA PT-7528 Series

The PT-7528 Series is designed for power substation automation applications that operate in extremely harsh environments. The PT-7528 Series supports Moxa’s Noise Guard technology, is compliant with IEC 61850-3, and its EMC immunity exceeds IEEE 1613 Class 2 standards to ensure zero packet loss while transmitting at wire speed. The PT-7528 Series also features critical packet prioritization (GOOSE and SMVs), a built-in MMS server, and a configuration wizard designed specifically for substation automation.

With Gigabit Ethernet, redundant ring, and 110/220 VDC/VAC isolated redundant power supplies, the PT-7528 Series further increases the reliability of your communications and saves cabling/wiring costs. The wide range of PT-7528 models available supports multiple types of port configuration, with up to 28 copper or 24 fiber ports, and up to 4 Gigabit ports. Taken together, these features allow greater flexibility, making the PT-7528 Series suitable for a variety of industrial applications.



You can also find the PT-7528-12MSC-12TX-4GSFP-HV-HV and PT-7528-8MSC-16TX-4GSFP-HV-HV models in the Rackmount Ethernet Switches.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA PT-7528-12MSC-12TX-4GSFP-HV Managed Rackmount Ethernet Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 28 ports
10/100Mb RJ45 (Megabit) Ports Yes : 12 ports
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 12 ports (SC connector)
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports Yes : 4 ports
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x USB Port (Type A connector), 1 x Console Port (Type B connector), 1 x Alarm Contact Channel
switch and hub : Features and capabilities
Backup Yes : ABC-02
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.586/0.382 A @ 110/220 VAC, 0.313/0.167 A @ 110/220 VDC
Power Input Plugin ( Redundant ) No
Input Voltage 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC)
Operating Voltage -
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 771,320 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in)
Housing Aluminum
Installation 19-inch rack mounting
Operating Temperature -40 to 85°C (-40 to 185°F), Cold start requires minimum of 100 VAC @ -40°C
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 508; Power Substation: IEC 61850-3, IEEE 1613 Class 1; Railway: EN 50121-4; Traffic Control: NEMA TS2; IP40; Telcordia SR332
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 4900 g (10.89 lb)
switch and hub : Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Fiber check, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
