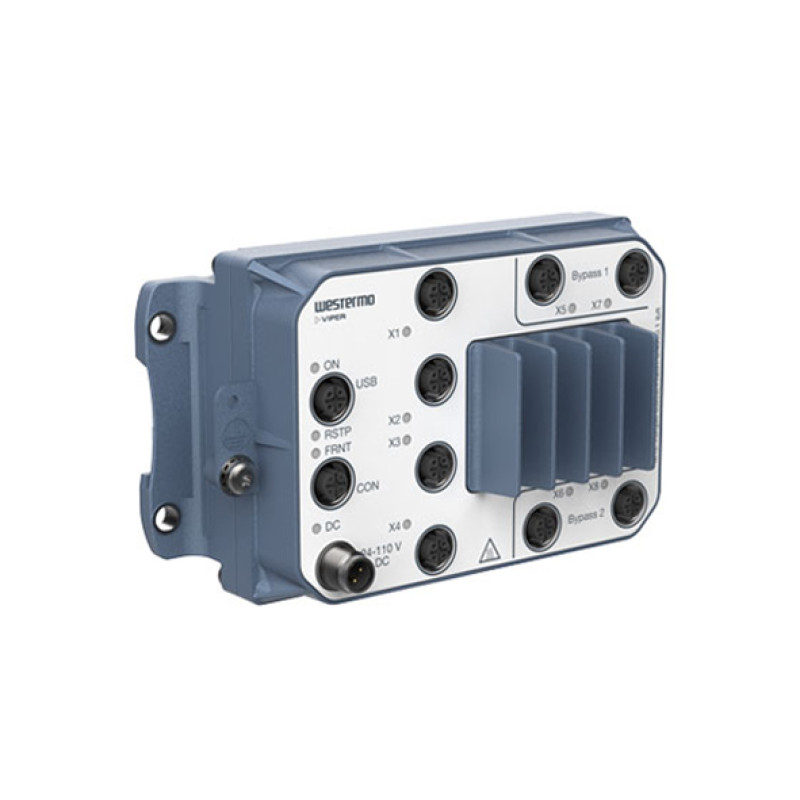

Westermo Viper-208-TBN Managed Backbone Routing Switch
- Layer 3 switching functions
- 8 x 10/100 Mbit/s Ethernet M12 ports
- 1 x Backup and restore port
- 2 x Bypass relays
- 24 to 110 VDC power range
- Brand: WESTERMO
- Product Code: Viper-208-TBN
Description
Viper-208-TBN series consists of powerful, managed 8-port backbone routing switches, optimized for the needs of the railway rolling stock market. The dual bypass relay ensures that aggregated links between cars are maintained, even if there is a power failure in one car. Gbps ports and wire-speed routing cope with a high bandwidth backbone, consist ring and end devices.
The Viper-208-TBN series is designed to withstand the tough environment on-board trains, exposing the switch to constant vibration, extreme temperatures, humidity, and a demanding electrical environment.
A GORE-TEX® membrane prevents internal condensation. Threading integrated into the chassis provides for additional vibration resistance. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and flashover. IP67 protection prevents the ingress of water and dust. An overall optimized design results in an extremely compact package in combination with very high MTBF for easy integration and low lifecycle cost.
Thorough type testing at independent labs certifies compliance to a wide range of standards, not least EN 50155, where the highest class is achieved in all aspects. The state-of-the-art Westermo production facility ensures the quality of each individual unit, e.g. through temperature cycling burn-in testing.
The WeOS operating system offers an extensive suite of IP networking features for resilient and flexible networks, e.g. the
FRNT ring protocol with very fast failover. The powerful layer 3 routing capability ensures communication between the backbone and consist networks and offers full support for IEC 61375, including TTDP network inauguration and TRDP real-time data protocol. The backup device accessory matches the Viper-208-TBN series in robustness and offers easy configuration updates and backup.
Experience the convenient way to
purchase the Westermo Viper-208-TBN Managed Backbone Routing Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman). Our sales experts will provide the most helpful information about the
price and sale conditions for a wonderful buying experience.
Specification
Interface | |
---|---|
Number of ports | 8 Ports |
10/100Mb RJ45 (Megabit) Ports | |
10/100/1000Mb RJ45 (Gigabit) Ports | |
100Mb Fiber optic multi mode (Megabit) Ports | |
100Mb Fiber optic single mode (Megabit) Ports | |
1000Mb SFP Fiber optic (Gigabit) Ports | |
10/100Mb (Megabit) POE Prots | |
100Mb SFP Fiber optic (Megabit) Ports | |
10/100/1000Mb (Gigabit) POE Ports | |
M12 port | : 8 x 100 Mbps (D-coded) |
Serial port | : 1 x Console port (RS-232, B-coded) |
USB | - |
Features and capabilities | |
Backup | |
LED Indicators | |
LED Per Port | |
Power | |
Power Requirements | |
Maximum power consumption | - |
Power Consumption (Output Adapter) | 16.8 to 143 VDC (14.4 to 154 VDC for 100 ms) |
Power Input Plugin ( Redundant ) | |
General | |
Fan / Fanless | Fanless |
MTBF | 470.000 h |
Switch specifications | |
Most forwarding speed | - |
Network working layers | Layer 3 |
Switch type | Managed Backbone Routing Switch |
Port Aggregation | |
Physical Characteristics | |
Dimensions | 175 x 100 x 72 mm (6.89 x 3.94 x 2.85 inches) |
Housing | Full metal |
Installation | Railway applications, Electronic equipment used on rolling stock |
Operating Temperature | -40 to +70°C (-40 to +158°F) (+85°C for a limited time) |
Operation Humidity | 5-95% relative humidity, operational, storage and transport |
Standards and Certifications | EN 50155 class OT4/IEC 60571 class TX; Railway applications - Electronic equipment used on rolling stock; Rapid temperature variations class H2, IEEE 1478 class 1; condition E4 (incl Salt Mist), Environmental conditions for transit rail car electronic equipment, EMC, Shock and vibration : EN 61373 category 1; class A and B, IEEE 1478 class 1; condition E4; including shock tests 10 g/30 ms and 20 g/11 ms in all directions, Fire protection, Safety |
Storage Humidity | - |
Storage Temperature | -55 to +85°C (-67 to +185°F) |
Weight | 1.5 kg |
Standards and protocols | |
Protocols and work standards | EN 50155 class OT4/IEC 60571 class TX; Railway applications; Electronic equipment used on rolling stock; Rapid temperature variations class H2, IEEE 1478 class 1; condition E4 (incl Salt Mist); Environmental conditions for transit rail car electronic equipment |
Protocols and management standards | - |
Package Checklist | |
Hardware installation guide | |
Power adapter | |
Power cable |
