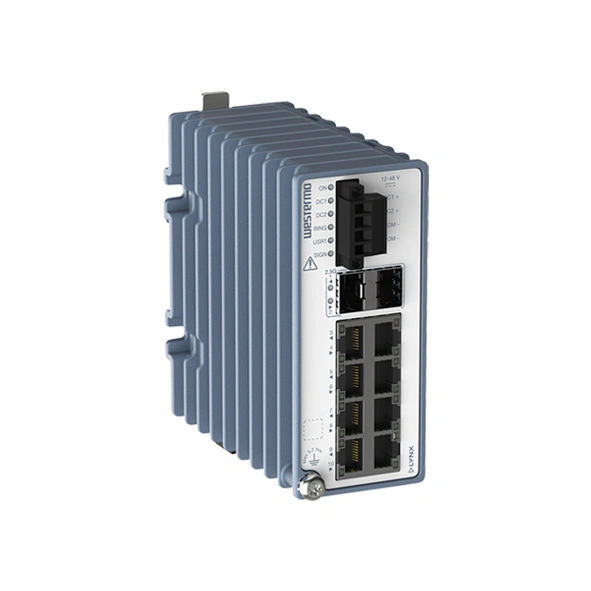

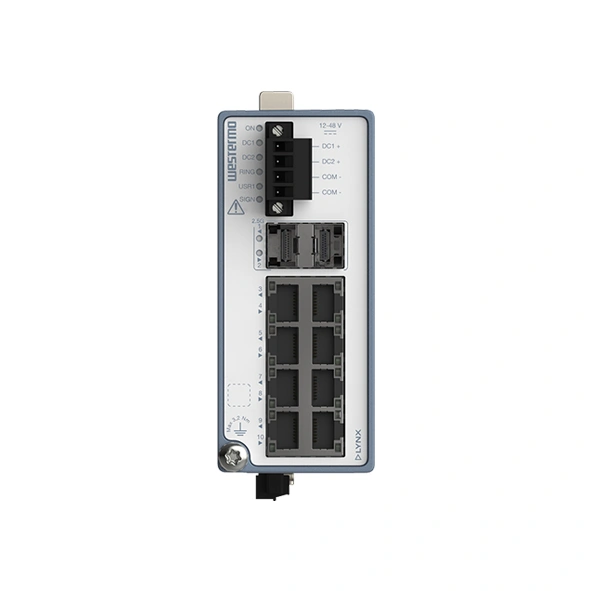

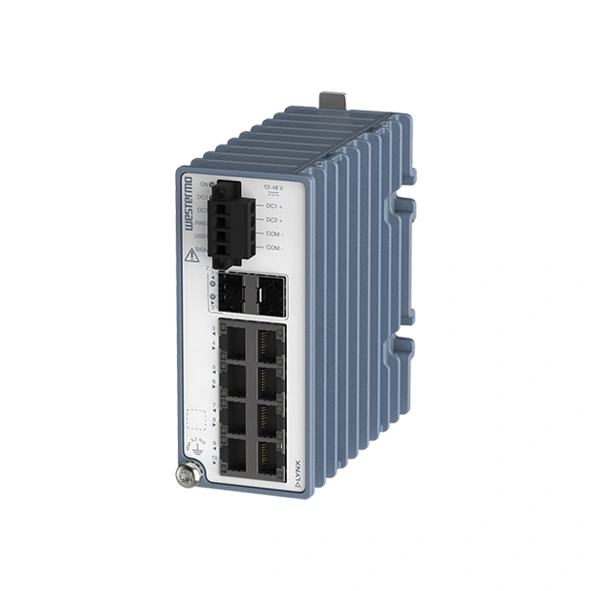

Westermo Lynx-3510-E-F2G2.5-T8G-LV-CC Managed Ethernet Switch

Westermo Lynx-3510-E-F2G2.5-T8G-LV-CC Managed Ethernet Switch
Westermo Lynx-3510-E-F2G2.5-T8G-LV-CC Managed Ethernet Switch
Westermo Lynx-3510-E-F2G2.5-T8G-LV-CC Managed Ethernet Switch
Westermo Lynx-3510-E-F2G2.5-T8G-LV-CC Managed Ethernet Switch
Westermo Lynx-3510-E-F2G2.5-T8G-LV-CC Managed Ethernet Switch
Westermo Lynx-3510-E-F2G2.5-T8G-LV-CC Managed Ethernet Switch
Westermo Lynx-3510-E-F2G2.5-T8G-LV-CC Managed Ethernet Switch
Key Features:
  • Layer 3 functionality switching and routing
  • Conformal-coated for harsh environments
  • 8 x 10/100/1000 Mbps ports (RJ45 connector)
  • 2 x 2.5 Gbit/s SFP fiber ports
  • Ultra-robust IP40 metal housing
  • 12 to 48 VDC Redundant power input
  • DIN-rail mount installation design
  • -40 to +70°C operating temperature range
0 reviews • Write a review
ENQUIRE NOW
Add to Wish List Compare this Product
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5% to 95% RH)
  • IP protection (IP40)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6, IEC 60068-2-64)
  • Marine
  • Railway Transportation
  • Factory Automation
  • Road Transportation
$0.00
Ex Tax: $0.00
Westermo L108-F2G-S2 Managed Ethernet Switch
Quickview
Westermo L108-F2G-S2 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L105-S1 Managed Ethernet Switch
Quickview
Westermo L105-S1 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L105-S1-EX Managed Ethernet Switch
Quickview
Westermo L105-S1-EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-F2G EX Managed Ethernet Switch
Quickview
Westermo L106-F2G EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-F2G Managed Ethernet Switch
Quickview
Westermo L106-F2G Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-S2 Managed Ethernet Switch
Quickview
Westermo L106-S2 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-S2-EX Managed Ethernet Switch
Quickview
Westermo L106-S2-EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L108-F2G-S2-12VDC Managed Ethernet Switch
Quickview
Westermo L108-F2G-S2-12VDC Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

Lynx-3510-E-F2G2.5-T8G-LV is a compact, high-performance managed industrial Ethernet switch and router for mission-critical OT networks. It includes 8 x 1 Gbit/s RJ-45 ports and 2 x 2.5 Gbit/s SFP ports.

Engineered for demanding environments, the device features a rugged, fanless IP40 full-metal housing and operates from -40 to +70 °C. Industrial-grade components and extensive environmental testing support high availability and a long service life. A conformal-coated variant is also available for added protection against moisture, dust, and corrosive contaminants in harsh environments.

Powered by WeOS, the device combines resilient Layer 2 switching with advanced Layer 3 routing and network segmentation. FRNT, RSTP and MRP support resilient topologies, while VLANs, QoS, multicast control and link aggregation help manage critical OT traffic. Static and dynamic routing enable communication between network segments and sites, while VRRP, VPN and stateful firewall capabilities support resilient, secure and controlled network architectures.

Cybersecurity is built into the platform. Secure Boot verifies software integrity during startup, while the Trusted Platform Module (TPM) provides a hardware root of trust for cryptographic keys and sensitive data. VPN, stateful firewall, and IEEE 802.1X help protect routed communications and network access. Lynx-3510-E-F2G2.5-T8G-LV is certified to IEC 62443-4-2 Security Level 2.

The compact DIN-rail design is suited to transportation, manufacturing, energy, smart cities, and other critical infrastructure applications requiring secure connectivity, high availability, and long-term reliability.

You can also find the Lynx-3510-F2G2.5-T8G-LV-CC, Lynx-3510-E-F2G-T8G-LV-CC, and Lynx-3510-E-F2G2.5-T8G-LV models in the Managed Ethernet Switches.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo Lynx-3510-E-F2G2.5-T8G-LV-CC Managed Ethernet Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 8 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 2 x 2.5 Gbit/s SFP fiber ports, 1 x Console Port (USB-C, Emulates UART, 115200 bps), 1 x Micro SD slot (Secure Digital 2.0), 1 x Digital input channel, and 1 x Digital output channel (screw terminal connector)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port No
switch and hub : Power Requirements
Input Current max 0.6 A at 12 VDC, max 0.16 A at 48 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 12 to 48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF Telcordia: 1,035,000 hours; MIL-HBDK-217F: 879,000 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 3
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 52 x 135 x 130 mm (2.05 x 5.31 x 5.12 inches)
Housing Full metal
Installation DIN-rail mounting
Operating Temperature -40 to +70°C (-40 to +158°F)
Operation Humidity 5-95% relative humidity
Standards and Certifications EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Environmental: NEMA TS2, Traffic Controller Assemblies with NTCIP Requirements; Marine: DNV rules for classification - Ships and offshore units; Security: IEC 62443-4-2, Security Level 2; Safety: EN/IEC/UL 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements, EN/IEC/UL 61010-2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-201: Particular requirements; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; Telcordia; MIL-HBDK-217F; Vibration: IEC 60068-2-6 (sine), IEC 60068-2-64 (random); Shock: IEC 60068-2-27
Storage Temperature -40 to +85°C (-40 to +185°F)
Weight 1100 gr
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory., Configuration and Deployment using external memory, Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote Syslog server), Port monitoring
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
