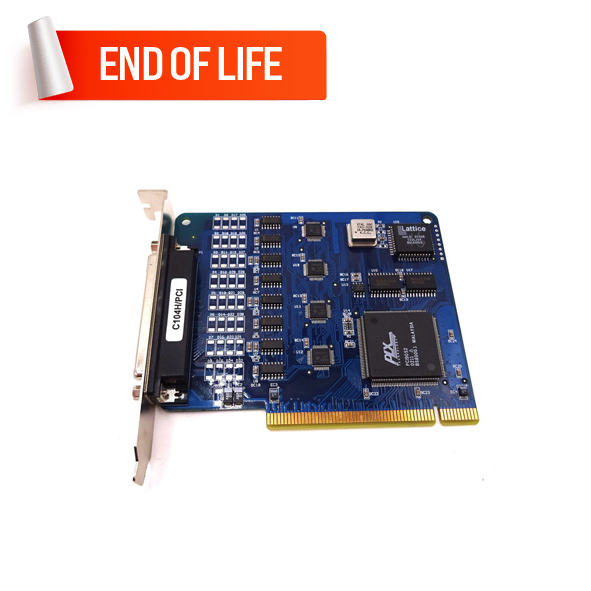

MOXA C104H/PCI Serial Board

MOXA C104H/PCI Serial Board
MOXA C104H/PCI Serial Board
MOXA C104H/PCI Serial Board
MOXA C104H/PCI Serial Board
MOXA C104H/PCI Serial Board

  • 4 x RS-232 Serial Ports (DB37 female connector)
  • Data transmission speed up to 921.6 Kbps
  • Supports maximum 921.6 kbps baud rate
  • Compatible Drivers with Windows, Linux, and UNIX
  • 0 to 55°C operating temperature range

  • Brand: MOXA
  • Model: C104H/PCI
0 reviews • Write a review
Datasheet
  • Operating Temperature (0 to 55°C)
  • Relative Humidity (5% to 95% RH)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Industrial Serial Connectivity , Multiport Serial Boards , PCIe/UPCI/PCI Serial Cards , Serial Boards , PCIe/UPCI/PCI , Industrial Converters , Multiport Serial Cards , MOXA C104H/PCI Series

The C104H Series allows you to install additional RS-232 serial communication ports on your PC by providing 4 serial ports per board for connecting all types of serial devices, including terminals, modems, printers, data acquisition equipment, and more. And C104H’s versatile OS driver support truly fulfills the needs of our customers’ varied applications. This product is available for use on either a PCI or ISA bus, with both types offering a reliable and high-performance solution for serial multiport communications.


End of Life Product - Replacement Available

Please note that the C104H/PCI Series has been phased out and replaced by the CP-104UL/104JU Series.


Inquire about the MOXA C104H/PCI Serial Board, designed for industrial automation solutions. Feel free and get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

MULTIPORT SERIAL BOARDS : SERIAL INTERFACE
Comm. Controller 16C550C or compatible x 4
Number of Ports 4 Port
Bus interface PCI
Serial Standards RS-232
Connector DB37 female
Baudrate Up to 921.6 Kbps
Max. No. of Boards per PC -
Stop Bits -
Parity None, even, odd, space, mark
Flow Control -
Data Bits 5, 6, 7, 8
FIFO -
Isolation No
MULTIPORT SERIAL BOARDS : SERIAL SIGNALS
RS-232 -
RS-422 -
RS-485-4w -
RS-485-2w -
MULTIPORT SERIAL BOARDS : SERIAL SOFTWARE FEATURES
Windows Drivers Windows 95/98/ME/NT/2000/XP/2003
Linux Drivers -
UNIX Drivers UnixWare SVR4.2
MULTIPORT SERIAL BOARDS : POWER REQUIREMENTS
Input Current 110 mA max. (+5V), 44.8 mA max. (+12V), 16.2 mA max. (-12V)
Input Voltage -
MULTIPORT SERIAL BOARDS : GENERAL
MTBF -
LED Indicators -
MULTIPORT SERIAL BOARDS : PHYSICAL CHARACTERISTICS
Dimensions 120 x 100 mm (W x D)
Operating Temperature 0 to 55°C
Storage Temperature -20 to 85°C
Operation Humidity 5 to 95% RH
Standards and Certifications Regulatory Approvals: FCC, CE
