Description

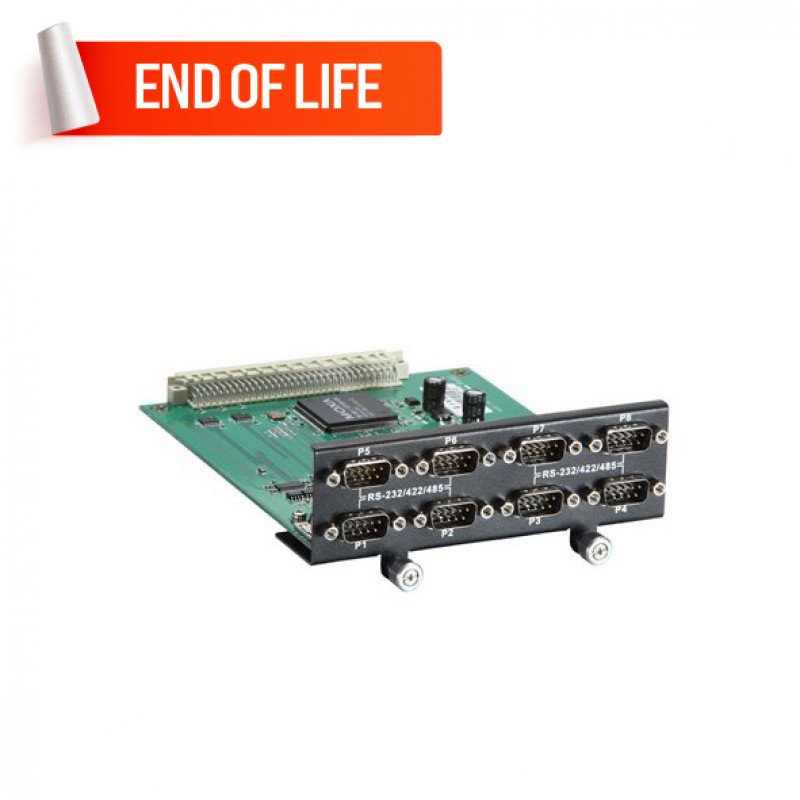

The DA-682A-UART Series expansion modules include an 8-port RS-232/422/485 module with either DB9 or terminal block connectors and an 8-port RS-422/485 module with terminal block connectors. Some modules are even designed with 2 kV digital isolation, making them fully suitable for the great demands of industrial applications that use serial communication.
End of Life Product - No Replacement
Please note that the DA-682A-UART Series Expansion Modules has been phased out. You can explore the DA-681C Series and DA-682C Series in the x86 Computers.
Enjoy the ease of online inquiries for the Moxa DA-SP08-I-DB Serial Expansion Module. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 8 x RS-232/422/485 Ports |
| Connector | DB9 |
| Typical Distance | - |
| POWER REQUIREMENTS | |
| Power Information | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 130 x 150 mm (42 x 5.12 in) |
| Weight | 290 g (0.64 lb) |
| Operating Temperature | -25 to 60°C (-13 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
| MTBF | 1,753,143 hrs |
