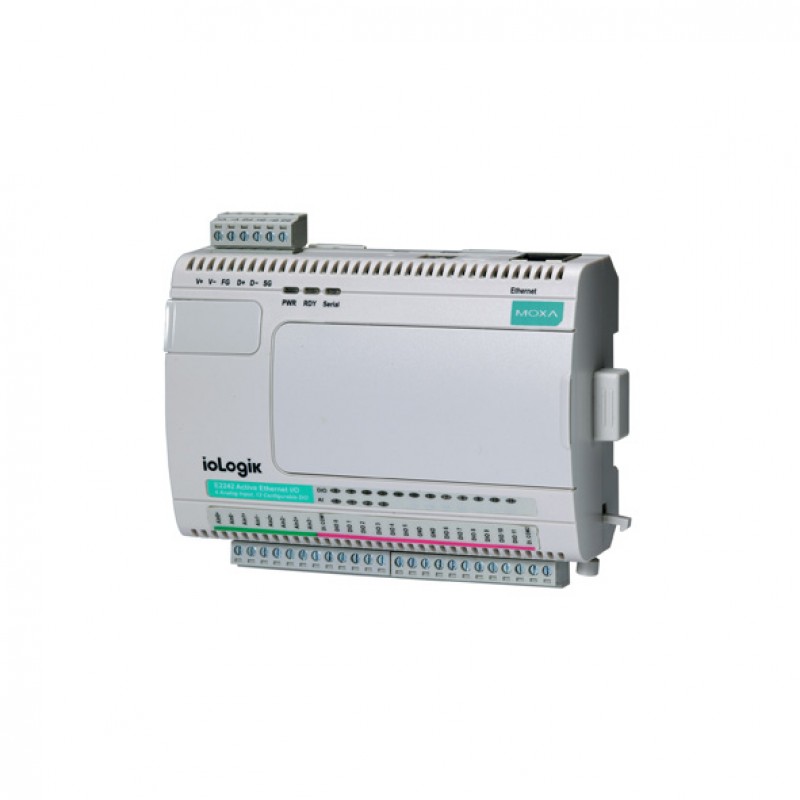

MOXA ioLogik E2240-T Smart Ethernet Remote I/O

  • 8 x Analog Input Channels, 2 x Analog Output Channels
  • 1 x 10/100BaseT(X) Port (RJ45 connector)
  • 1 x RS-485 Serial port (Terminal block connector)
  • Plastic body design
  • Supports Modbus TCP, MX-AOPC, and SNMP v1/v2c
  • 12 to 36 VDC input power range
  • DIN-rail and Wall mounting
  • -40 to 75°C operating temperature

Description

Moxa’s ioLogik E2200 Series Ethernet Remote I/O is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices and features the Click&Go programming interface. Unlike traditional PLCs, which are passive and must poll for data, Moxa’s ioLogik E2200 Series will when paired with our MX-AOPC UA Server, communicate with SCADA systems using active messaging that is pushed to the server only when state changes or configured events occur. Additionally, the ioLogik E2200 features SNMP for communications and control using an NMS (Network Management System), allowing IT professionals to configure the device to push I/O status reports according to configured specifications. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.


You can also find the ioLogik E2242, ioLogik E2210, ioLogikE2212-T, and ioLogik E2262-T models in the Smart Remote I/O.


Inquire about the MOXA ioLogik E2240-T Smart Ethernet Remote I/O, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
Digital Input and Output
Adjustable digital input and output
Analog Input and Output : 8 x Analog Input Channels (±150 mV, ±500 mV, ±5 V, ±10, V, 0-20 mA, 4-20 mA), 2 x Analog Output Channels
Relays
Thermal sensor input (RTD)
Thermocouple input
LAN : 1 x 10/100BaseT(X) Port (RJ45 connector)
Magnetic Isolation Protection 1.5 kV (built-in)
Serial port : 1 Port
Isolation : 3k VDC or 2k Vrms
Buttons Reset button
Serial Interface
Connector Terminal block
Serial Standards RS-485
Serial Communication Parameters Baudrate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps; Parity: None; Data Bits: 8; Stop Bits: 1; Flow Control: None
Serial Signals RS-485-2w: Data+, Data-, GND
Security
Security Functions Authentication: Local database; Encryption: HMAC; Security Protocols: SNMPv3
Standards and protocols
Protocols Ethernet: Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), MXIO Library, CGI commands; Serial: Modbus RTU Master
General
Compatible Softwares MX-AOPC UA Server, MXIO
Management BOOTP, IPv4, SMTP, DHCP Client, HTTP, TCP/IP
MTBF 155,941 hrs
Power Requirements
Power Connector Screw-fastened Euroblock terminal
Input Voltage 12 to 36 VDC
Power Consumption 198 mA @ 24 VDC
LED Indicators
LED Indicators PWR, RDY, Serial, I/O Status
Physical Characteristics
Housing Plastic
Dimensions 115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)
Standards and Certifications Safety: UL 508; EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
Installation DIN-rail mounting, Wall mounting
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5% to %95 Non-condensing
Weight 250 g (0.55 lb)
Altitude 2000 m
