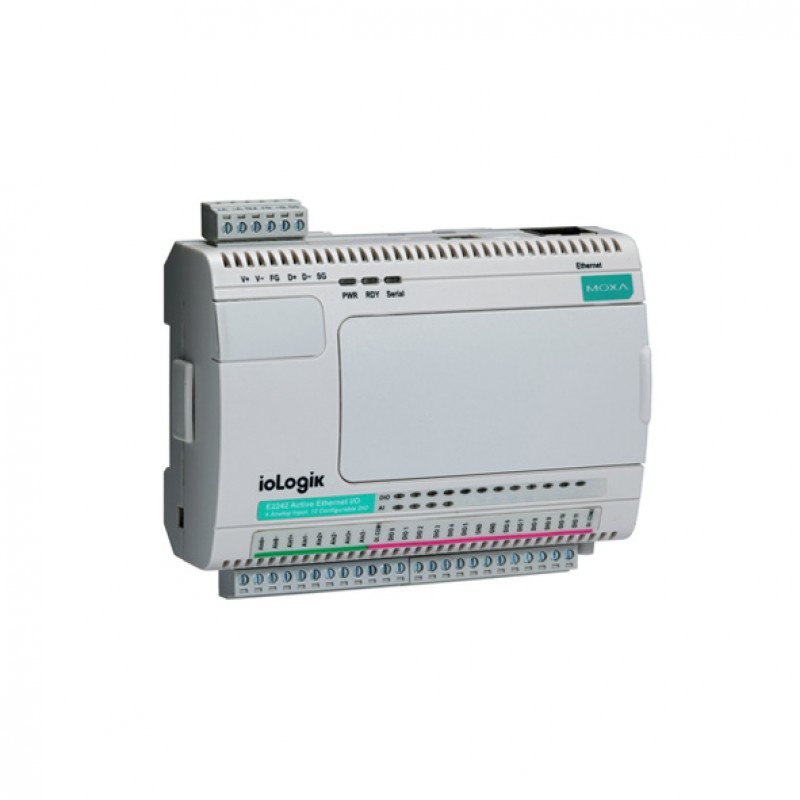

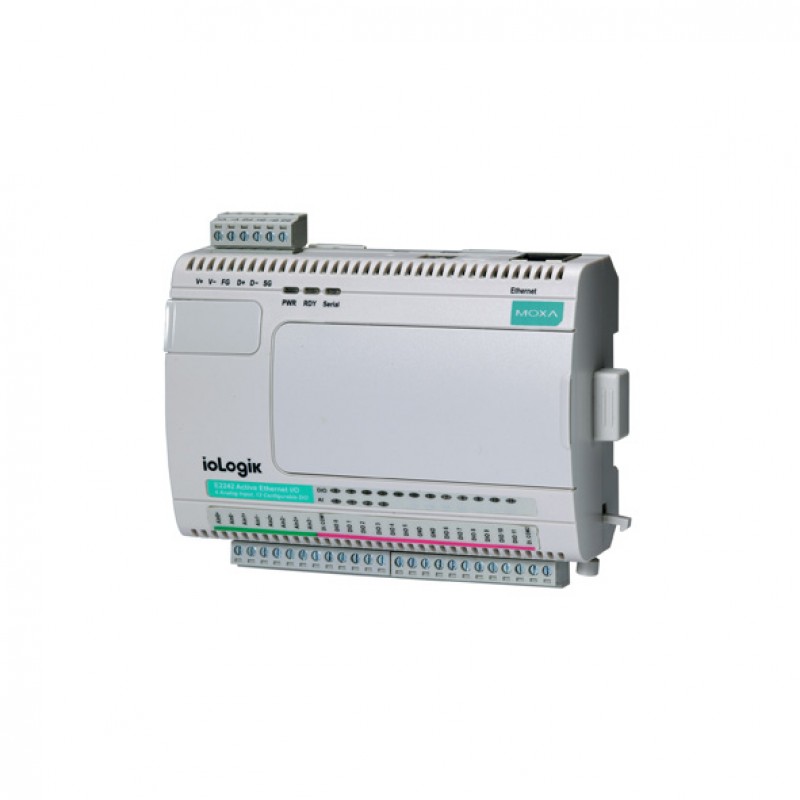

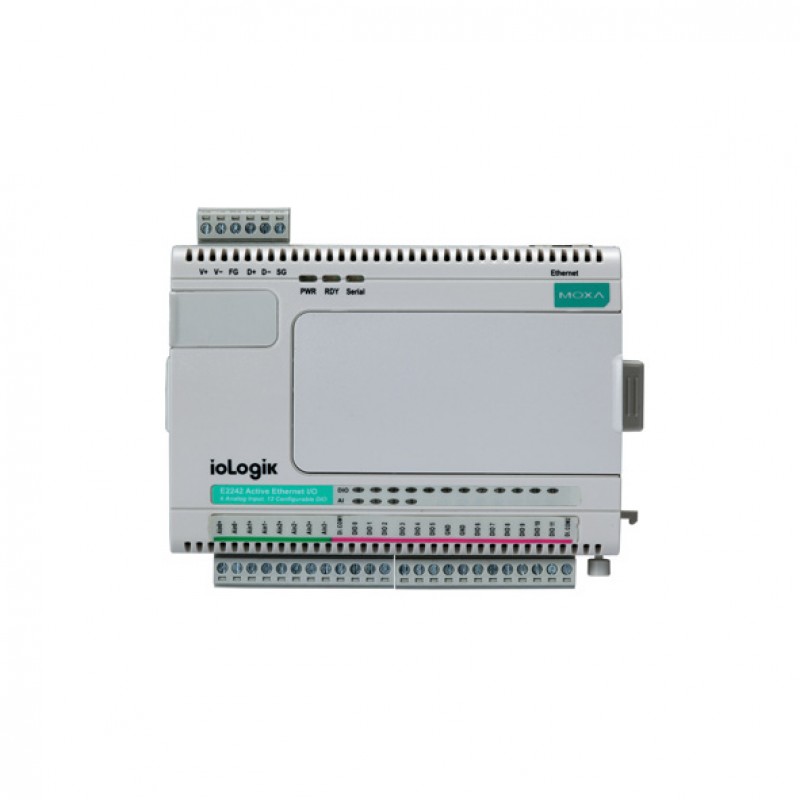

MOXA ioLogik E2214-T Smart Ethernet Remote I/O
- Modbus / TCP protocol support
- 1 10 / 100Mbps Ethernet port
- 6 digital inputs and 6 relay outputs
- Manage alerts via Email, SNMP Trap, TCP, UDP
- Suitable for work in a wide range of temperatures
- Brand: MOXA
- Product Code: ioLogik E2214-T
Description
Moxa’s ioLogik E2200 Series Ethernet Remote I/O is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices and features the Click&Go programming interface. Unlike traditional PLCs, which are passive and must poll for data, Moxa’s ioLogik E2200 Series will when paired with our MX-AOPC UA Server, communicate with SCADA systems using active messaging that is pushed to the server only when state changes or configured events occur. Additionally, the ioLogik E2200 features SNMP for communications and control using an NMS (Network Management System), allowing IT professionals to configure the device to push I/O status reports according to configured specifications. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.
You can also find the ioLogik E2210-T, ioLogik E2210,
ioLogik E2240, and ioLogik E2262-T models in the
Easy World Automation offers the
easiest way to buy the MOXA ioLogik E2214-T Smart Ethernet Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Digital Input and Output | : 6 digital inputs |
| Adjustable digital input and output | |
| Analog Input and Output | |
| Relay Output | : 6 outputs |
| Thermal sensor input (RTD) | |
| Thermocouple input | |
| LAN | : 1 RJ-45 10/100Mbps port |
| Serial port | : 1 RS-485 terminal connection |
| Standards and protocols | |
| Protocols | Modbus/RTU, Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP |
| General | |
| Compatible Softwares | MX-AOPC UA Server, MXIO |
| Physical Characteristics | |
| Standards and Certifications | Safety: UL 508; EMC:EN 61000-6-2/6-4, EMI: CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2; ESD: Contact: 4 kV; Air: 8 kV; IEC 61000-4-3 RS:80 MHz to 1 GHz: 10 V/m1.4 GHz to 2 GHz: 3 V/m2 GHz to 2.7 GHz: 1 V/mIEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kVIEC 61000-4-5 Surge: Power: 1 kVIEC 61000-4-6 CS: 10 VIEC 61000-4-8; Green Product: RoHS, CRoHS, WEEE |
| Operating Temperature | -40 to 75 ° C |
| Storage Temperature | -40 to 85 ° C |
| Operation Humidity | 5% to %95 Non-condensing |
