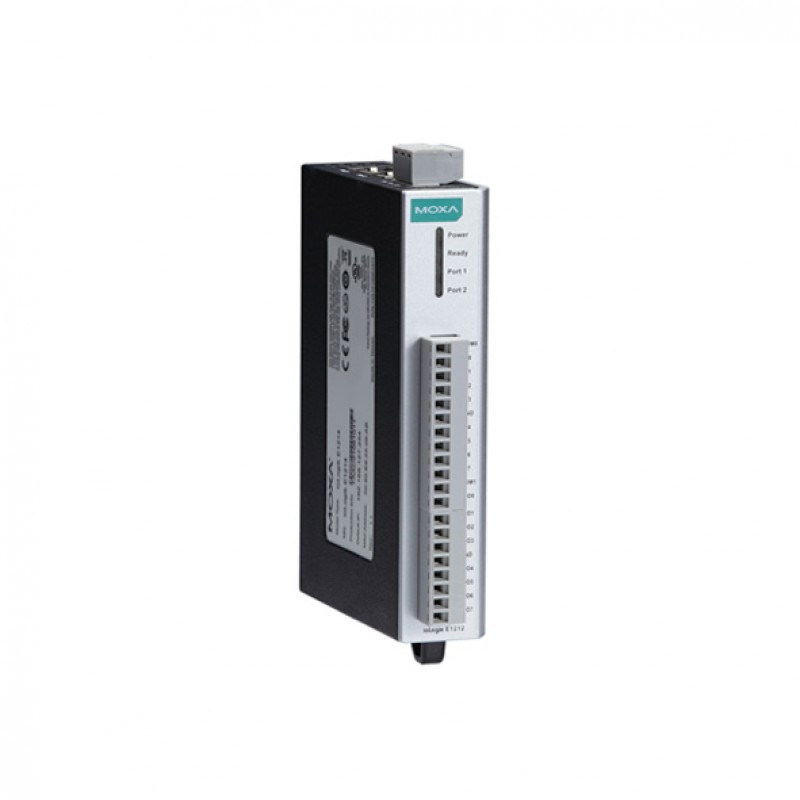

MOXA ioLogik E1242-T Ethernet Remote I/O
- 4 x Digital Input Channels
- 4 x Configurable DIO Channels (Sink)
- 4 x Analog Input Channels
- 2 x 10/100BaseT(X) Switch Ports (RJ45 connector)
- Plastic body design
- Supports Modbus TCP, EtherNet/IP, MX-AOPC, and SNMP v1/v2c
- 12 to 36 VDC input power range
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature
- Brand: MOXA
- Product Code: ioLogik E1242-T
Description
The ioLogik E1200 Series supports the most often-used protocols for retrieving I/O data, making it capable of handling a wide variety of applications. Most IT engineers use SNMP or RESTful API protocols, but OT engineers are more familiar with OT-based protocols, such as Modbus and EtherNet/IP. Moxa's Smart I/O makes it possible for both IT and OT engineers to conveniently retrieve data from the same I/O device. The ioLogik E1200 Series speaks six different protocols, including Modbus TCP, EtherNet/IP, and Moxa AOPC for OT engineers, as well as SNMP, RESTful API, and Moxa MXIO library for IT engineers. The ioLogik E1200 retrieves I/O data and converts the data to any of these protocols at the same time, allowing you to get your applications connected easily and effortlessly.
You can also find the ioLogik E1211-T, ioLogik E1210-T,
ioLogik E1212, and ioLogik E1242 models in the
Easy World Automation offers the
easiest way to buy the MOXA ioLogik E1242-T Ethernet Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| Digital Input and Output | : 4 x Digital Input Channels |
| Adjustable digital input and output | : 4 x Channels (Sink) |
| Analog Input and Output | : 4 x Analog Input Channels |
| Relays | |
| Thermal sensor input (RTD) | |
| Thermocouple input | |
| LAN | : 2 x 10/100BaseT(X) Ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Serial port | |
| Isolation | : 3k VDC or 2k Vrms |
| Buttons | Reset button |
| Serial Interface | |
| Connector | - |
| Serial Standards | - |
| Serial Communication Parameters | - |
| Serial Signals | - |
| Security | |
| Security Functions | Security: Access control list, Authentication: Local database |
| Standards and protocols | |
| Protocols | Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, EtherNet/IP Adapter |
| General | |
| Compatible Softwares | MX-AOPC UA Server, ioSearch utility, MXIO |
| Management | RESTful API, SNMPv1/v2c, SNMPv1 Trap, HTTP, DHCP Client, BOOTP, IPv4, TCP/IP, UDP |
| MTBF | 502,210 hrs |
| Power Requirements | |
| Power Connector | Screw-fastened Euroblock terminal |
| Input Voltage | 12 to 36 VDC |
| Power Consumption | 139 mA @ 24 VDC |
| LED Indicators | |
| LED Indicators | Power, Ready, Port 1, Port 2 |
| Physical Characteristics | |
| Housing | Plastic |
| Dimensions | 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) |
| Standards and Certifications | EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 25; Safety: UL 508; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Installation | DIN-rail mounting, Wall mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5% to %95 Non-condensing |
| Weight | 200 g (0.44 lb) |
| Altitude | 4000 m |
