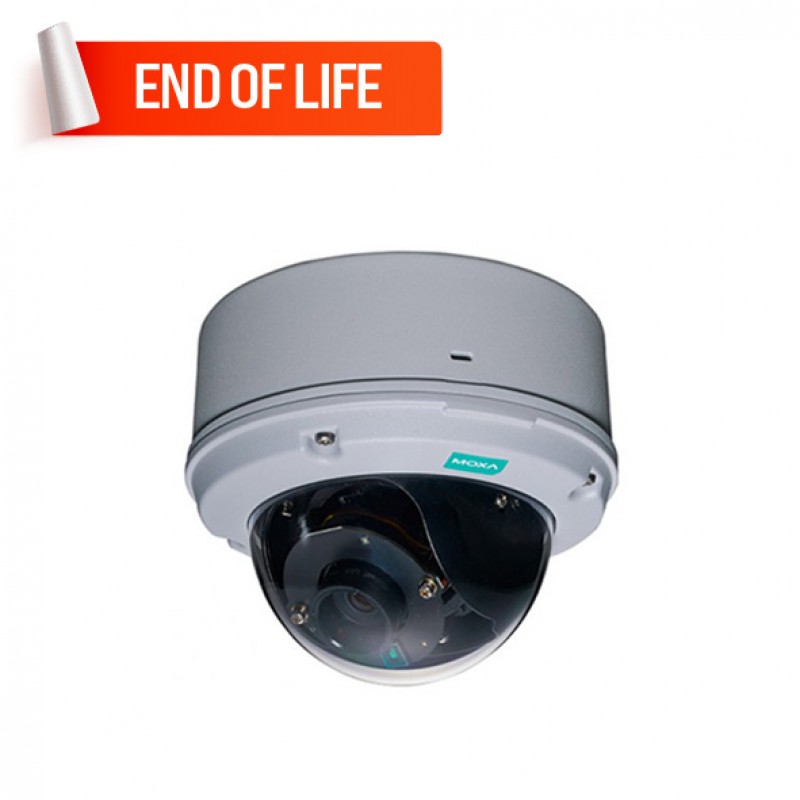

MOXA VPort P26A-1MP Dome IP Camera
- Lens: 3 mm (Wide) to 9 mm (Tele)
- 1 x PoE Port (10/100BaseT(X), RJ45 connector)
- Supports IEEE 802.3af for PoE
- 1 x Audio Input (line-in) and 1 x Audio Output (line-out)
- IP66-rated Metal housing with PC dome cover
- Panel mount or Wall/Pole mount installation
- Source of Input Power: PoE (IEEE 802.3af)
- -40 to 50°C operating temperature
.png)
Description
The VPort 26A-1MP is an IK10, IP66-rated, fixed dome HD IP camera with a maximum resolution of 1280 x 800, H.264/MJPEG triple video streams, and a day-and-night camera lens. These robust features make it particularly suitable for harsh, outdoor environments.
End of Life Product - No Replacement
Please note that the VPort 26A-1MP Series has been phased out. You can explore the VPort P06HC-1V Series, VPort 06EC-2V Series, and VPort 06-2 Series in the IP Cameras.
Easy World Automation offers the
easiest way to buy the MOXA VPort P26A-1MP Dome IP Camera in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Camera | |
|---|---|
| Sensor | 1/2.7-in HD progressive scan CMOS |
| Lens | 3X (controlled manually), f=3 mm (wide) to 9 mm (tele), F1.2 to F2.3, Horizontal angle of view: 112° to 35°, Vertical angle of view: 58° to 20°, Diagonal: 115° to 40° |
| Camera Angle | Pan: ±175°, Tilt: 0 to 85°, Rotation: Pan: ±180° |
| ICR Control (for day & night) | Auto (light sensor control) or DI control |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| DNR | Built-in 2D/3D DNR |
| WDR | Levels 1-8• color: 100 dB, B/W: 110 dB |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Image Rotation | Flip, Mirror, and 180° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| Black Level Control | High, Medium, Low |
| AGC (auto gain control) | 2X, 4X, 8X, 16X, 32X, 64X |
| Minimum Illumination | Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) |
| Day & Night | Auto/Color/BW; ICR control |
| Electronic Shutter | Fixed (1/30 to 1/25000 sec) |
| S/N Ratio | Maximum 50 dB (AGC OFF, DNR ON) |
| IRIS | Auto, DC drive |
| Interface | |
| 10/100BaseT(X) Ports | |
| PoE Ports | : 1 Port (10/100BaseT(X), RJ45 connector) |
| Digital Input/Output Channels | : 1 x Digital Input Channel (Terminal block connector) |
| Relay Channels | : 1 Channel (Resistive load: 1 A @ 24 VDC) |
| Audio | |
| Audio Inputs | 1 line-in with 2-pin terminal block connector |
| Audio Format | Mono, PCM (G.711) |
| Audio Outputs | 1 line-out with 2-pin terminal block connector |
| Video | |
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output | via Ethernet |
| Video Streams | 3, H.264, or MJPEG independent video streams |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically, CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, Maximum of 5 simultaneous unicast connections, 50 multicast clients |
| Network | |
| Protocols | TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP, 802.1X, SSH/HTTPS |
| Power Requirements | |
| Input Voltage | - |
| Input Current | 0.18 A @ 48 VDC |
| Source of Input Power | PoE (IEEE 802.3af) |
| Alarms | |
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers and CGI events for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-alarm Buffer | 24 MB video buffer for JPEG snapshot images |
| Security | |
| Password | User level password protection |
| Filtering | By IP address |
| Encryption | HTTPS |
| Authentication | 802.1X |
| General | |
| MTBF | 201,721 hrs |
| microSD Slot | SDHC |
| Physical Characteristics | |
| Housing | IP66 rain and dust protection, IK10 vandal-resistant support, Metal housing, PC dome cover, Transparent PC cover |
| Dimensions | 149 x 120 mm (5.86 x 4.72 in) |
| Weight | 1.39 kg (3.06 lb) |
| Installation | Panel mounting, Wall mounting (with optional kit), Corner mounting (with optional kit) |
| Operating Temperature | -40 to 50°C (-40 to 122°F ) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Freefall: IEC 60068-2-31; Safety: UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP66; Telcordia SR332 |
| Altitude | Up to 2000 m |
| Minimum Viewing System Requirements | |
| Memory Size | 512 MB of memory |
| Operating System | Windows 7 or above |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0c or above |
| Software Development | |
| VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers. |
| Standard | ONVIF Profile S |
