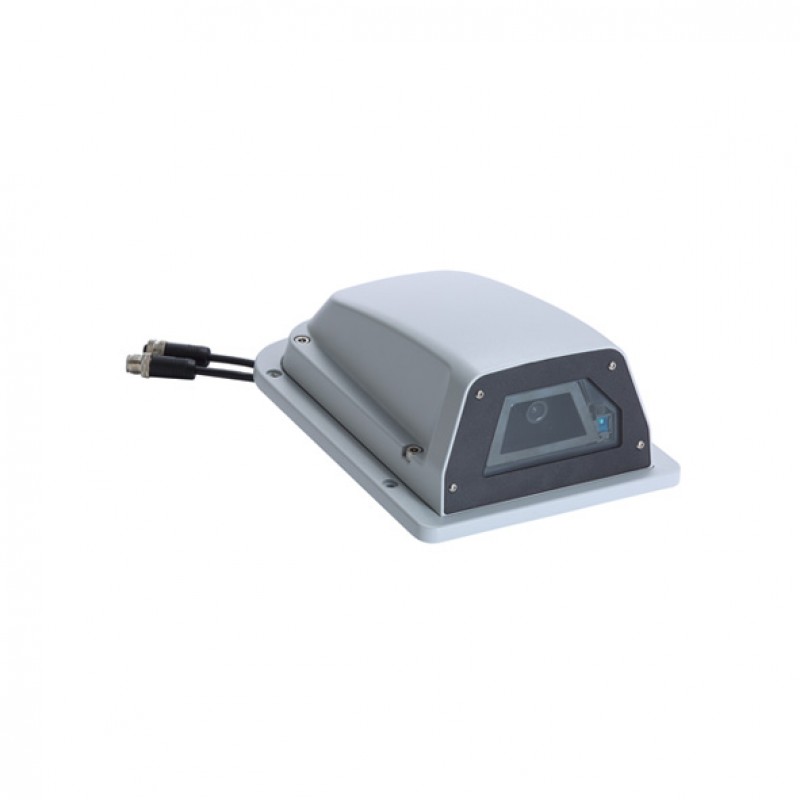

MOXA VPort 06EC-2V36M Outdoor IP Camera
- IP67-rated
- 1920 x 1080 resolution at up to 60 fps
- Built-in front glass heater to remove snow and frost
- iCapTrue™ image enhancement technology
- DynaStream™ for optimized network efficiency
- CBR Pro™ for high image quality in limited bandwidth transmissions
- ONVIF Profile S support for standardization and interoperability
- Complies with all EN 50155 mandatory test items1
- -25 to 55°C operating temperature
- Brand: MOXA
- Product Code: VPort 06EC-2V36M
.png)
Description
The VPort 06EC-2V outdoor IP cameras support 1080P (1920 x 1080) resolution video images at up to 60 frames per second. iCapTrue’s new image enhancement technology uses an advanced AE and AWB algorithm to produce better image quality in a variety of environments. The chassis design is IP67-rated and has been shown to provide ample dust and rain protection, and with a built-in front glass heater and a tough outer cover, the cameras have the versatility and ruggedness needed for outdoor mobile IP video surveillance applications. In addition, models capable of operating between -40 to 70°C are available.
Explore our extensive range of industrial automation products such as MOXA VPort 06EC-2V36M Outdoor IP Camera and all the MOXA IP Cameras in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Camera | |
|---|---|
| Sensor | 1/3-in 1080P progressive scan CMOS |
| Lens | f=3.6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39° |
| Camera Angle | Pan: ±5°, Tilt: +10/-5° (controlled manually) |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| DNR | Built-in 2D/3D DNR |
| WDR | 100 dB |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Image Rotation | Flip, Mirror, 90°, 180°, 270° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| AGC (auto gain control) | 2X, 4X, 8X, 16X |
| Minimum Illumination | Color: 0.2 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec), B/W: 0.05 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec) |
| Electronic Shutter | Color: 0.2 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec), B/W: 0.05 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec) |
| S/N Ratio | Maximum 50 dB (AGC off; DNR on) |
| Audio | |
| Audio Inputs | |
| Audio Format | |
| ETHERNET INTERFACE | |
| PoE Ports | 1 x 10/100BaseT(X), (M12 D-coded 4-pin female connector) |
| Video | |
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output | via Ethernet |
| Video Streams | 4 independent H.264 or MJPEG video streams |
| Video Viewing | 4 independent H.264 or MJPEG video streams |
| Network | |
| Protocols | TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS |
| Power Requirements | |
| Input Current | 0.167 A @ 48 VDC, 0.9 A @ 24 VDC |
| No. of Power Inputs | 2 |
| Source of Input Power | PoE (IEEE 802.3af) |
| Alarms | |
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Security | |
| Password | User-level password protection |
| Filtering | IP address |
| Encryption | HTTPS |
| Standards and Certifications | |
| Safety | UL 60950-1 |
| EMI | CISPR 32, FCC Part 15B Class A |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Freefall | IEC 60068-2-31 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
| Vandal Resistance | |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF |
| General | |
| MTBF | 480,269 hrs |
| Physical Characteristics | |
| Housing | Metal IP67 Transparent Glass cover |
| Weight | 1,63kg (3.59 lb) |
| Installation | Wall mounting (standard) |
| Operating Temperature | -25 to 55°C (-13 to 131°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Altitude | 2000 m |
| Minimum Viewing System Requirements | |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0C or above |
| Software Development | |
| VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers. |
| Physical Characteristics | |
| Dimensions | 83 x 168 x 233 mm (3.27 x 6.61 x 8.78 in) |
