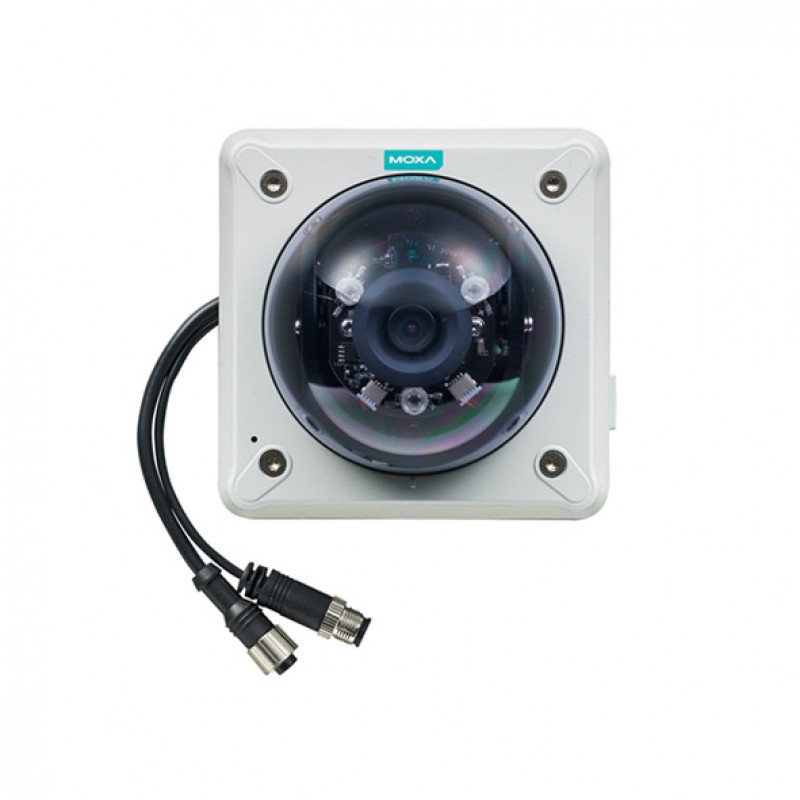

MOXA VPort P16-2MR60M Infrared IP Camera
- Lens: 6.0 mm
- 1 x PoE Port (10/100BaseT(X), M12 connector)
- IP66-rated Metal housing with PC dome cover
- Built-in IR illuminator for day & night image capabilities
- Input Power Source: PoE (IEEE 802.3af)
- Panel mount installation design
- -25 to 55°C operating temperature range
.png)
Description
The rugged VPort P16-2MR cameras produce Full HD (1920 x
1080) video images and feature 4 H.264/MJPEG video streams, giving them the
versatility and ruggedness needed for mobile IP video surveillance applications
in a variety of different installations and environments. In addition, the
cameras feature vandal-proofing (EN 62262 IK8), a -25 to 55°C or -40 to 70°C (T
models) operating temperature, a rugged M12 Ethernet port, PoE power input, a
built-in microphone, a digital input, IP66 rain and dust protection, an IR
illuminator for day and night image capabilities, and are compliant with the
mandatory sections of EN 50155.
You can also find the VPort P16-2MR60M-T and VPort P16-2MR42M models in the IP Cameras.
Inquire about the MOXA VPort P16-2MR60M Infrared IP Camera, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| Camera | |
|---|---|
| Sensor | 1/3-in 1080P progressive scan CMOS |
| Lens | f=6.0 mm, F1.8, Diagonal 62°, Horizontal 43°, Vertical 24° |
| Camera Angle | Pan 350°, Tilt 65° (controlled manually) |
| ICR Control (for day & night) | Auto (light sensor control) or DI control |
| IR Illumination | IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| DNR | Built-in 2D/3D DNR |
| WDR | 100 dB |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Image Rotation | Flip, Mirror, 90°, 180°, 270° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| AGC (auto gain control) | 2X, 4X, 8X, 16X |
| Minimum Illumination | Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) , B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), Note: 0 lux if IR illuminator is on |
| Electronic Shutter | Auto, Fixed (1/30 to 1/25000 sec) |
| S/N Ratio | Maximum 50 dB (AGC off; DNR on) |
| Interface | |
| 10/100BaseT(X) Ports | |
| PoE Ports | : 1 x 10/100BaseT(X), M12 D-coded 4-pin female connector |
| Digital Input/Output Channels | : 1 x Digital Input Channel (M12 connector with 20 cm cable) |
| Relay Channels | |
| Audio | |
| Audio Inputs | 1 x built-in microphone |
| Audio Format | Mono, PCM (G.711), AAC |
| Audio Outputs | |
| Video | |
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output | Via Ethernet |
| Video Streams | 4 independent H.264 or MJPEG video streams |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, OSD (On Screen Display) position adjustable, Maximum of 5 simultaneous unicast connections, 50 multicast clients |
| Network | |
| Protocols | TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS |
| Power Requirements | |
| Input Voltage | - |
| Input Current | 0.26 A @ 48 VDC |
| Source of Input Power | PoE (IEEE 802.3af) |
| Alarms | |
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-alarm Buffer | 50 MB video buffer for JPEG snapshot images |
| Security | |
| Password | User-level password protection |
| Filtering | IP address |
| Encryption | HTTPS |
| Authentication | |
| General | |
| MTBF | 997,474 hrs |
| microSD Slot | |
| Physical Characteristics | |
| Housing | IP66 rain and dust protection, Metal housing, PC dome cover, IK8 vandal-resistant protection |
| Dimensions | 125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in) |
| Weight | 890 g (1.96 lb) |
| Installation | Panel mounting |
| Operating Temperature | -25 to 55°C (-13 to 131°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Railway Fire Protection: EN 45545-2; Safety: UL 60950-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Railway: EN 50155 (complies with a portion of EN 50155 specifications); Ingress Protection: IEC 60529, IP66; Salt Spray Test: ASTM-B117; Vandal Resistance: EN 62262, IK8; Telcordia SR332 |
| Altitude | 2000 m |
| Minimum Viewing System Requirements | |
| Memory Size | 2 GB |
| Operating System | Windows 7 or above |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0C or above |
| Software Development | |
| VPort SDK PLUS | - |
| Standard | ONVIF Profile S |
