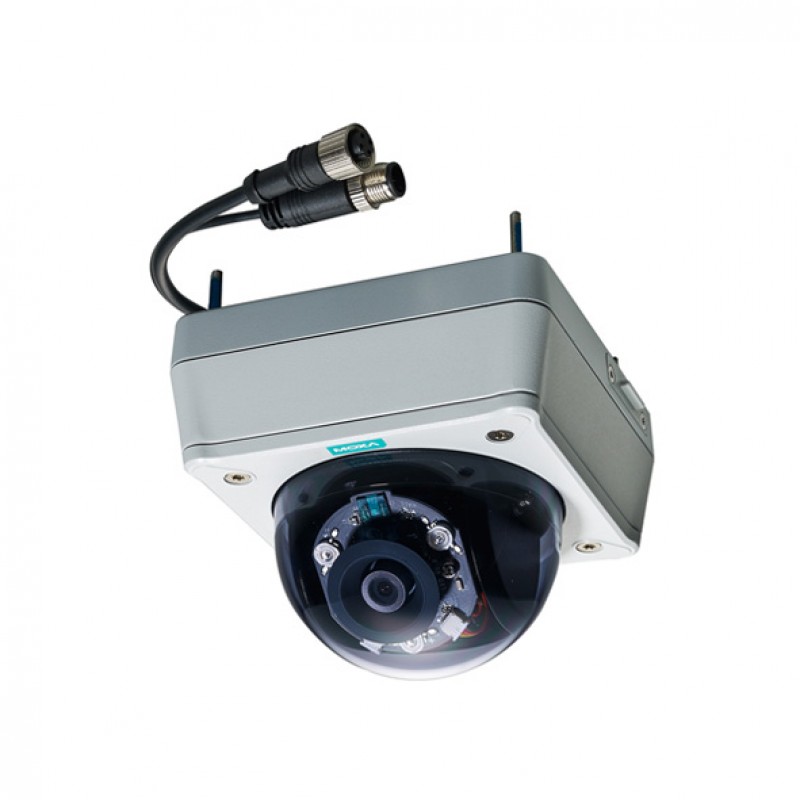

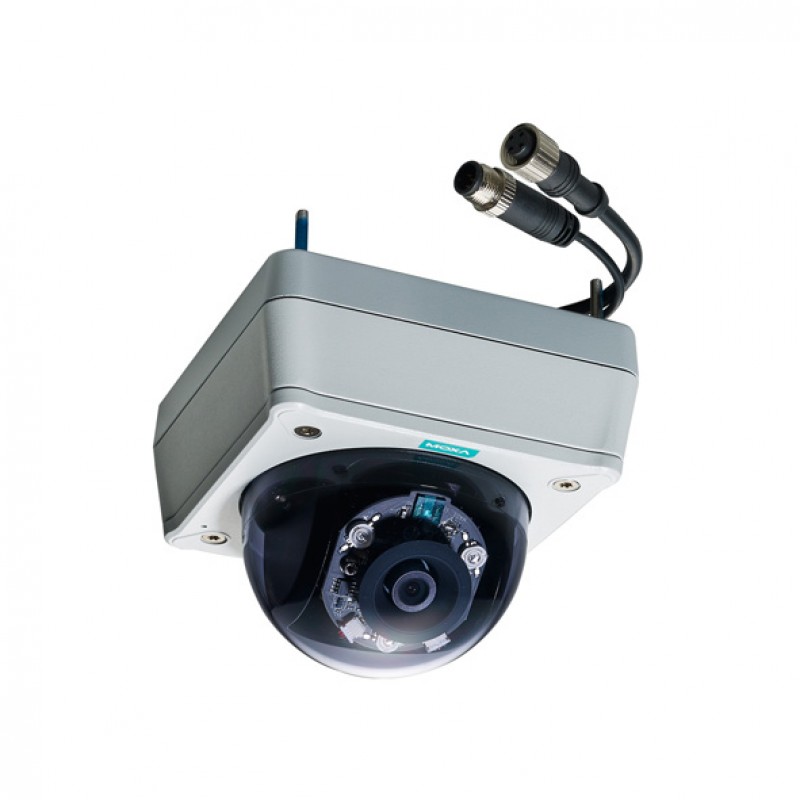

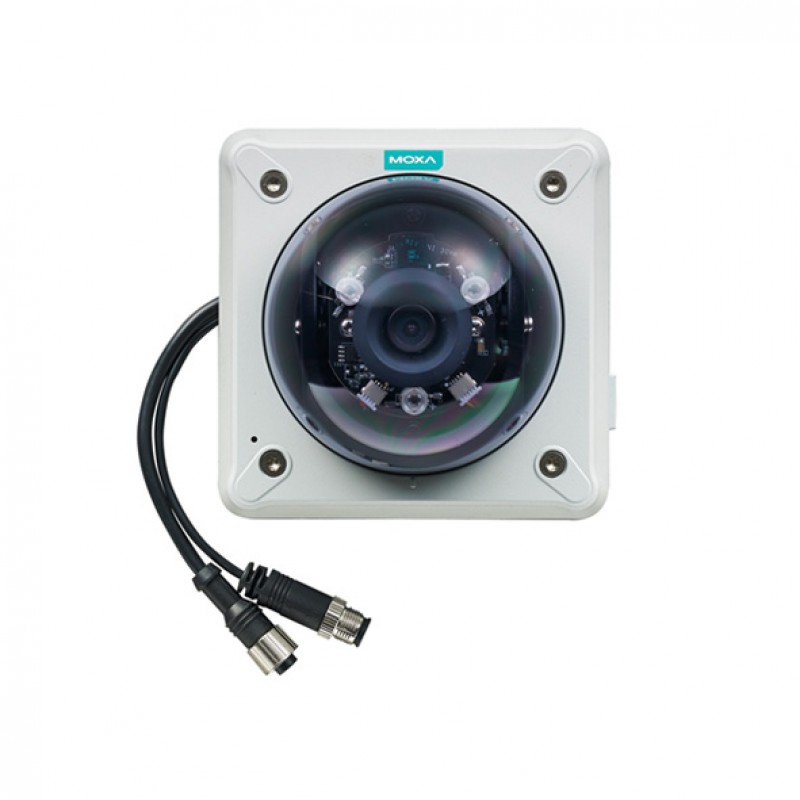

MOXA VPort P16-2MR36M infrared IP Camera
- 1/3” progressive scan camera with maximum 1920 x 1080 resolution at up to 30 fps
- Built-in IR illuminator and ICR (Infrared Cut Filter Removal) for day & night images
- High-quality video imaging with DNR and WDR
- Up to 4 H.264 or MJPEG independent simultaneous video streams
- DynaStream™ for optimized network efficiency
- CBR Pro™ for high image quality in limited bandwidth transmissions
- Supports SDXC (up to 2 TB SD card) for local storage
- 1 built-in microphone for audio input, and 1 digital input for external sensor
- ONVIF support for standardization and interoperability
- -25 to 55°C operating temperature
- Brand: MOXA
- Product Code: VPort P16-2MR36M
Description
The rugged VPort P16-2MR cameras produce Full HD (1920 x 1080) video images and feature 4 H.264/MJPEG video streams, giving them the versatility and ruggedness needed for mobile IP video surveillance applications in a variety of different installations and environments. In addition, the cameras feature vandal-proofing (EN 62262 IK8), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power input, a built-in microphone, a digital input, IP66 rain and dust protection, an IR illuminator for day & night image capabilities, and are compliant with the mandatory sections of EN 50155.1.
Experience the convenient way to purchase the MOXA VPort P16-2MR36M infrared IP Camera and all the MOXA IP Cameras in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
Camera | |
---|---|
Sensor | 1/3-in 1080P progressive scan CMOS |
Lens | f=3.6mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39° |
Camera Angle | Pan 350°, Tilt 65° (controlled manually) |
Synchronization | Synchronization |
White Balance | ATW/AWB |
DNR | Built-in 2D/3D DNR |
WDR | 100 dB |
Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
Image Rotation | Flip, Mirror, 90°, 180°, 270° rotation |
Image Setting | Manual tuning with saturation, sharpness, and contrast |
AGC (auto gain control) | 2X, 4X, 8X, 16X |
Minimum Illumination | Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) , B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), Note: 0 lux if IR illuminator is on |
Electronic Shutter | Auto, Fixed (1/30 to 1/25000 sec) |
S/N Ratio | Maximum 50 dB (AGC off; DNR on) |
Audio | |
Audio Inputs | 1 x built-in microphone |
Audio Format | Mono, PCM (G.711) AAC |
ETHERNET INTERFACE | |
PoE Ports | 1 x (10/100BaseT(X), M12 D-coded 4-pin female connector) |
Video | |
Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
Video Output | Via Ethernet |
Video Streams | 4 independent H.264 or MJPEG video streams |
Video Viewing | DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, OSD (On Screen Display) position adjustable, Maximum of 5 simultaneous unicast connections, 50 multicast clients |
Network | |
Protocols | TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS |
Power Requirements | |
Input Current | 0.26 A @ 48 VDC |
No. of Power Inputs | 1 |
Source of Input Power | PoE (IEEE 802.3af) |
Alarms | |
Intelligent Video | Camera tampering detection |
Scheduling | Daily repeat timing schedule |
Imaging | JPEG snapshots for pre/trigger/post alarm images |
Custom Alarms | HTTP event servers for setting customized alarm actions |
Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
Security | |
Password | User-level password protection |
Filtering | IP address |
Encryption | HTTPS |
Standards and Certifications | |
Safety | UL 60950-1 |
EMI | CISPR 32, FCC Part 15B Class A |
Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
Freefall | IEC 60068-2-31 |
Vandal Resistance | |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF |
General | |
MTBF | 997,474 hrs |
Physical Characteristics | |
Housing | IP66 rain and dust protection, Metal housing, PC dome cover, IK8 vandal resistant protection |
Dimensions | 125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in) |
Weight | 0.890kg (1.96 lb) |
Installation | Panel mounting |
Operating Temperature | -25 to 55°C (-13 to 131°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
Altitude | 2000 m |
Minimum Viewing System Requirements | |
Browser | Internet Explorer 9.x or above |
Multimedia | DirectX 9.0C or above |
Software Development | |
VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers |
