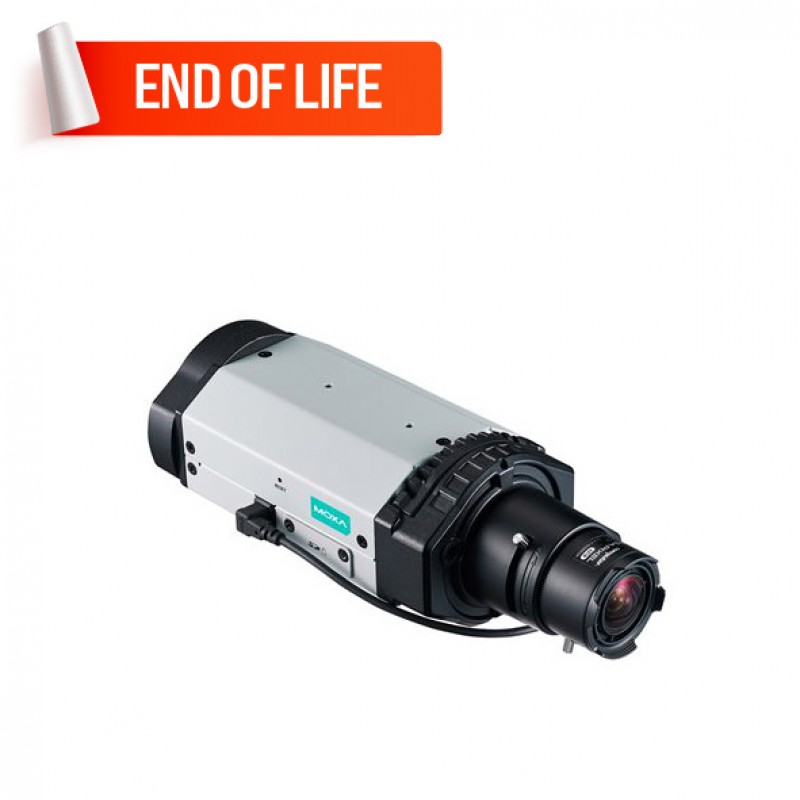

MOXA VPort 36-1MP-IVA-T Box IP Camera
- Intelligent Video Analytics (IVA) License
- Lens: Designed for C/CS-mount lens (lens not included)
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 12/24 VDC, 24 VAC or PoE (48 VDC) Redundant dual inputs
- Metal body design
- Corner, Wall, and Pole mount installation design
- -40 to 75°C operating temperature range
.png)
Description
The VPort 36-1MP Series has a rugged design, superb video quality, convenient installation, high video performance, and network security.
Superb Video Quality
The VPort 36-1MP Series is designed to be compatible with C/CS-mount lenses to meet any viewing angle and distance requirement. With a built-in, removable IR-cut filter and automatic color mode switching, it is suitable for either day or night use. Highly tuned ROI (Regions of Interest) and WDR (Wide Dynamic Range) functions enable the VPort 36-1MP Series to produce exceptionally clear images.
Convenient Installation
The VPort 36-1MP series is designed for indoor and outdoor applications that require operational reliability. It is a unique and competitive camera in the IP CCTV market. It has features such as high EMI/surge protection, optional IP66 housing for rain/dust protection, and -40 to 75°C operation without a heater or cooling fan. This camera is available with PoE (Power over Ethernet, 802.3af) or with wired power input supporting 12/24 VDC or 24 VAC.
High Video Performance and Network Security
The VPort 36-1MP Series can encode analog video into both H.264 and MJPEG video streams and can transmit up to 3 independent video streams (2 H.264 streams, 1 MJPEG stream) simultaneously. Advanced video encoding technology enables the cameras to support up to 30 fps for each of the H.264 and MJPEG streams.
End of Life Product - No Replacement
Please note that the VPort 26A-1MP Series has been phased out. You can explore the VPort P06HC-1V Series, VPort 06EC-2V Series, and VPort 06-2 Series in the IP Cameras.
You can Buy the MOXA VPort 36-1MP-IVA-T Box IP Camera via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Camera | |
|---|---|
| Sensor | 1/2.7-in HD progressive scan CMOS |
| Lens | Designed for C/CS-mount lens (lens not included) |
| Camera Angle | - |
| ICR Control (for day & night) | Auto (light sensor control) or DI control |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| DNR | Built-in 2D/3D DNR |
| WDR | 110 dB |
| Flickerless Control | Automatic, 50 Hz, 60 Hz modes |
| Image Rotation | Flip, Mirror, and 180° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| Black Level Control | High/Medium/Low |
| AGC (auto gain control) | 2X, 4X, 8X, 16X, 32X, 64X |
| Minimum Illumination | Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) |
| Electronic Shutter | Auto, Fixed (1/30 to 1/25000 sec) |
| S/N Ratio | 50 dB (Gamma, Aperture, AGC OFF; DNR ON) |
| Interface | |
| 10/100BaseT(X) Ports | : 1 Port (RJ45 connector) |
| PoE Ports | |
| Digital Input/Output Channels | : Digital Input (1, max. 8 mA High: +13 to +30 V; Low: -30 to +3 V) |
| Relay Channels | : 1 Channel (max. 24 VDC @ 1 A) |
| Audio | |
| Audio Inputs | |
| Audio Format | |
| Audio Outputs | |
| Video | |
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output | via Ethernet |
| Video Streams | 3 independent H.264 or MJPEG video streams |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically, CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, Maximum of 5 simultaneous unicast connections, 50 multicast clients |
| Network | |
| Protocols | TCP, UDP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP, 802.1X, SSH/SSL |
| Power Requirements | |
| Input Voltage | 12/24 VDC, 24 VAC, or Power-over-Ethernet (IEEE 802.3af), Redundant power inputs |
| Input Current | - |
| Source of Input Power | PoE (IEEE 802.3af) |
| Alarms | |
| Intelligent Video | Camera tampering detection |
| Video Motion Detection | 3 independently configurable areas |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-alarm Buffer | 24 MB video buffer for JPEG snapshot images |
| Security | |
| Password | User level password protection |
| Filtering | By IP address |
| Encryption | HTTPS |
| Authentication | 802.1X |
| General | |
| MTBF | 541,826 hours |
| microSD Slot | SDHC |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 81.76 x 69.65 x 147.6 mm (3.22 x 2.74 x 5.81 in) |
| Installation | Pole mounting (optional), Wall mounting (with optional kit), Corner mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Standards and Certifications | Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nCnAnL IIC T4; Safety: UL 60950-1; EMI: FCC Part 15, CISPR (EN 55022) Class A; EMS: EN 61000-4-2 (ESD), Level 3, EN 61000-4-3 (RS), Level 3, EN 61000-4-4 (EFT), Level 3, EN 61000-4-5 (Surge), Level 3, EN 61000-4-6 (CS), Level 3, EN 61000-4-8; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Traffic Control: NEMA TS2; Rail Traffic: EN 50121-4; Telcordia (Bellcore), GB 25°C |
| Altitude | - |
| Minimum Viewing System Requirements | |
| CPU | Pentium 4, 2.4 GHz |
| Memory Size | 512 MB of memory |
| Operating System | Windows XP/2000 with SP4 or above, Windows Vista, Windo |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0c or above |
| Software Development | |
| VPort SDK PLUS | Development Kit VPort SDK PLUS: Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (latest version available on Moxa website) |
| Standard | ONVIF ProfileS |
