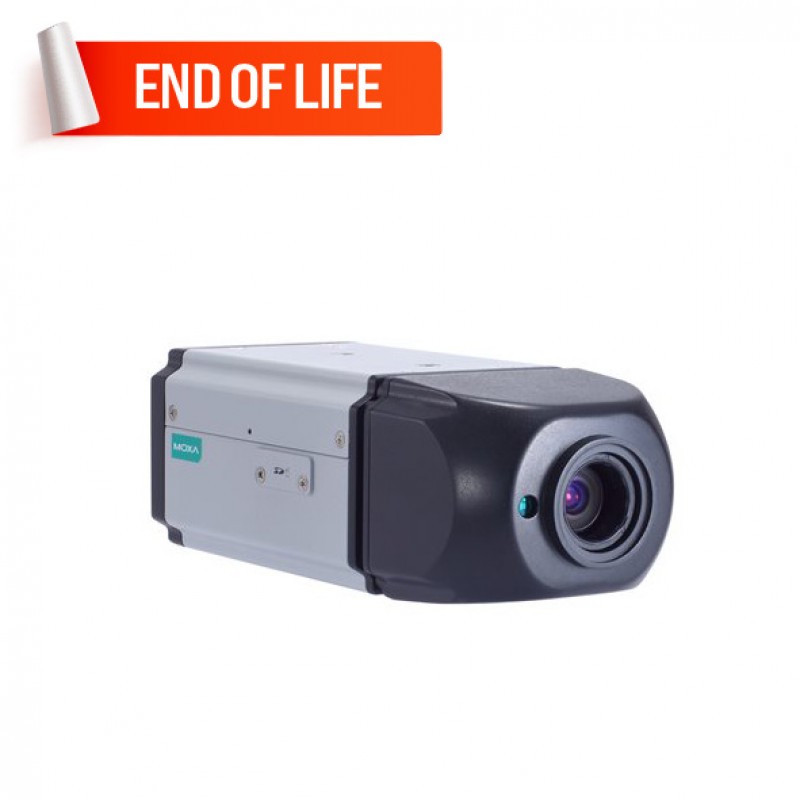

MOXA VPort 36-2L2X Box IP Cameras
- Lens: 10 mm (Wide) to 23 mm (Tele)
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x Audio Input (line-in) and 1 x Audio Output (line-out)
- 12/24 VDC, 24 VAC or PoE (48 VDC) Redundant dual inputs
- Metal body design
- Corner, Wall, and Pole mount installation design
- -25 to 60°C operating temperature range
.png)
Description
The VPort 36-2L rugged 1080P (1920 x 1080) box IP cameras are specially designed for mission-critical applications and extreme weather environments. The cameras have either a 3 to 9 mm or 10 to 23 mm P-iris zoom lens built-in. They support remote zoom and focus control via an IP network, providing convenience and simplicity for camera operation, and can operate in temperatures from -40 to 75°C (-T models) and industrial-grade EMC (EMI/Surge Level 3) protection.
The VPort 36-2L cameras are suitable for the kind of industrial and outdoor environments found with oil and gas, rail, and ITS applications. In addition, the VPort 36-2L supports a light sensor and ICR (IR-cut filter removable) for day and night viewing, advanced WDR (wide dynamic range), and DNR (digital noise reduction), allowing the VPort 36-2L to produce good quality images even in extreme sunlight conditions.
End of Life Product - No Replacement
Please note that the VPort 26A-1MP Series has been phased out. You can explore the VPort P06HC-1V Series, VPort 06EC-2V Series, and VPort 06-2 Series in the IP Cameras.
Easy World Automation offers the easiest way to buy the MOXA VPort 36-2L2X Box IP Cameras in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Camera | |
|---|---|
| Sensor | 1/3-in 1080P progressive scan CMOS |
| Lens | 2X zoom: f=10 mm (wide) to 23 mm (tele), F1.2 to F2.3, Diagonal: 13.7° to 31°, Horizontal: 11.4° to 26.9°, Vertical: 6.3° to 14.4° |
| Camera Angle | - |
| ICR Control (for day & night) | Auto (light sensor control) or DI control |
| Synchronization | Internal |
| White Balance | ATW/AWB |
| DNR | Built-in 2D/3D DNR |
| WDR | 100 dB |
| Flickerless Control | Automatic, 50 Hz,60 Hz modes |
| Image Rotation | Flip, Mirror, 90°, 180°, 270° rotation |
| Image Setting | Manual tuning with saturation, sharpness, and contrast |
| AGC (auto gain control) | 2X, 4X, 8X, 16X |
| Minimum Illumination | Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), B/W: 0.1 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec) |
| Day & Night | Auto/Color/BW; ICR Control |
| Electronic Shutter | Auto, Fixed (1/30 to 1/25000 sec) |
| S/N Ratio | Maximum 50 dB (AGC off; DNR on) |
| IRIS | Auto, P-IRIS |
| Interface | |
| 10/100BaseT(X) Ports | : 1 x Port (RJ45 connector) |
| PoE Ports | |
| Digital Input/Output Channels | : 1 x Digital Input Channel (Terminal block connector) |
| Relay Channels | : 1 Channels (max. 24 VDC @ 1 A) |
| Audio | |
| Audio Inputs | 1 Line-in or MIC-in with 3.5 mm phone jack |
| Audio Format | Mono, PCM (G.711); AAC |
| Audio Outputs | 1 Line-out, with 3.5 mm phone jack |
| Video | |
| Video Compression | H.264 (ISO/IEC 14496-10) or MJPEG |
| Video Output | via Ethernet |
| Video Streams | 4 independent H.264 or MJPEG video streams |
| Video Viewing | DynaStream™ support for changing the video frame rate automatically, CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, Maximum of 5 simultaneous unicast connections, 50 multicast clients |
| Network | |
| Protocols | TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP |
| Power Requirements | |
| Input Voltage | 12/24 VDC, 24 VAC or PoE (48 VDC), Redundant dual inputs |
| Input Current | 0.91 A @ 12 VDC, 0.38 A @ 24 VDC, 0.24 A @ 48 VDC, 0.8 A @ 24 VAC |
| Source of Input Power | - |
| Alarms | |
| Intelligent Video | Camera tamper |
| Video Motion Detection | 3 independently configurable motion areas |
| Scheduling | Daily repeat timing schedule |
| Imaging | JPEG snapshots for pre/trigger/post alarm images |
| Custom Alarms | HTTP event servers for setting customized alarm actions |
| Email/FTP Messaging | Automatic transfer of stored images via email or FTP as event-triggered actions |
| Pre-alarm Buffer | 50 MB video buffer for JPEG snapshot images |
| Security | |
| Password | User level password protection |
| Filtering | By IP address |
| Encryption | HTTPS |
| Authentication | 802.1X |
| General | |
| MTBF | 630,908 hrs |
| microSD Slot | SDXC |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 200 x 90 x 70 mm (7.9 x 3.5 x 2.8 in) |
| Weight | 1.2 kg (2.65 lb) |
| Installation | Pole mounting (optional), Wall mounting (with optional kit), Corner mounting (with optional kit) |
| Operating Temperature | -25 to 60°C (-13 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Freefall: IEC 60068-2-31; Safety: UL 60950-1; Shock: IEC 60068-2-27; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Telcordia SR332 |
| Altitude | 2000 m |
| Minimum Viewing System Requirements | |
| Memory Size | 2 GB |
| Operating System | Windows 7 or above |
| Browser | Internet Explorer 9.x or above |
| Multimedia | DirectX 9.0C or above |
| Software Development | |
| VPort SDK PLUS | Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers. |
| Standard | ONVIF Profile S |
