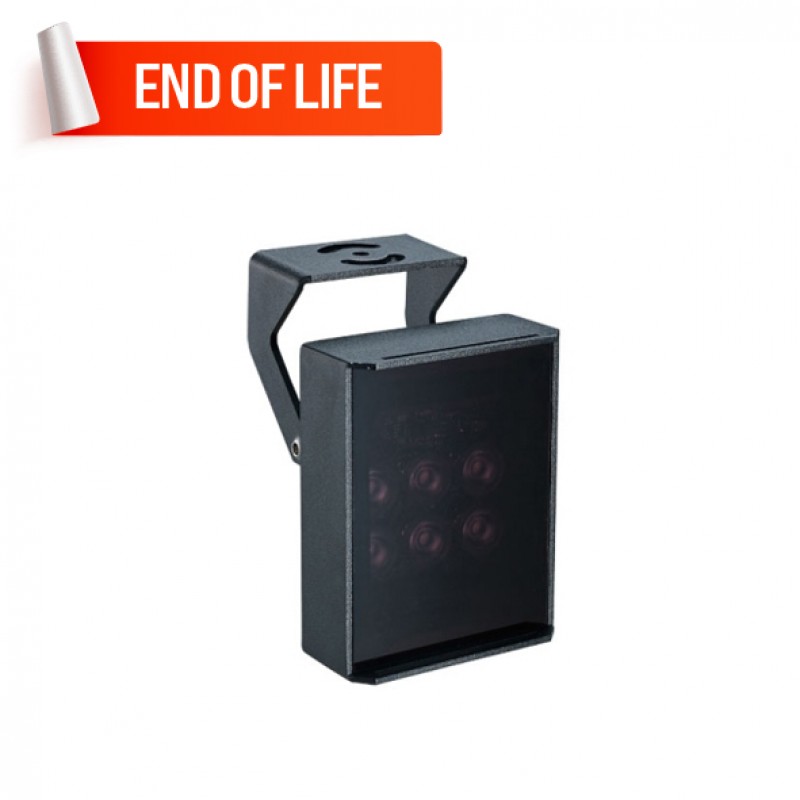

MOXA VP-IR26080 IR Illuminator
- High power IR illuminator for VPort 36-2L Series
- Illuminates up to 20 to 50 m
- Supports DSI technology
- More than 50% energy savings
- Flexible beam pattern
- Wide application range
- Active/Passive mode for ICR synchronization
- -30 to 60°C operating temperature range
.png)
Description
The VP-IR2 series IR illuminator is designed specifically to work with Moxa VPort series IP cameras and PT scanners. The VP-IR2 features high power efficiency and a lower LED life cycle and is suitable for all types of industrial surveillance applications. The VP-IR2 can be easily mounted on a VPort camera housing or IR bracket available for Moxa PT scanners.
End of Life Product - No Replacement
Please note that the VP-IR2 Series has been phased out. You can explore the IP Cameras and Video Servers in the IP Surveillance.
Easy World Automation offers the easiest way to buy the MOXA VP-IR26080 IR Illuminator in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| General | |
|---|---|
| Infrared Wavelength | 850 nm |
| Angle | 60° |
| IR Effective Range | 20 to 50 m |
| Active IR On/Off switch | Controlled by built-in photocell light sensor |
| Passive IR On/Off switch | Volt-free relay input (The VPort camera should use DC power to accept volt-free relay output from the VP-IR2 series) |
| Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Weatherproofing | IP66 |
| ICR Switching | 12 VDC power output |
| Power Consumption | 10 W |
| Power Requirement | 12 VDC |
