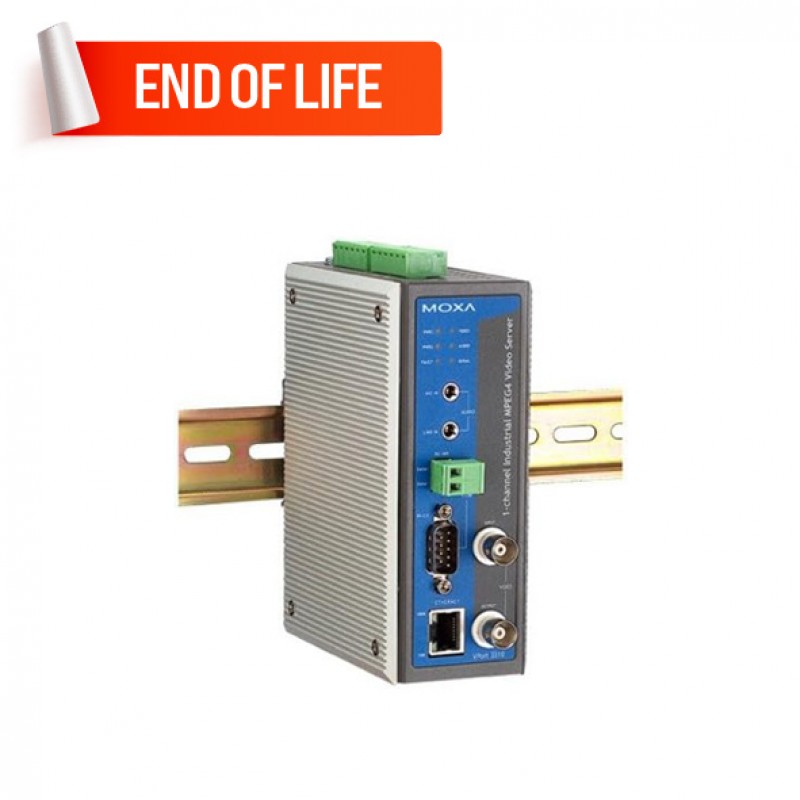

MOXA VPort 3310-T Video Server
- 1-channel MPEG4 Industrial Video Server
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x BNC Video input and 1 x BNC Video output
- 1 x Audio Input (1 Line-in port, 1 Mic-in port)
- Din-rail and Wall mounting
- 24 VDC Redundant dual power inputs
- IP30-rated Metal body design
- -40 to 75°C operating temperature range
.png)
Description
VPort 3310 is a 1-channel Industrial Video Server (Encoder) that uses the standard MPEG4 algorithm and features DIN-Rail Mounting capability, 24 VDC redundant power inputs, and IP30 protection to meet the requirements of industrial environments. The cutting-edge MPEG4 algorithm gives VPort 3310 an FPS of up to 30 in CIF resolution (352 x 240), with a maximum bandwidth of 1.6 Mbps, to provide high video performance and more efficient network transmission. In addition, VPort 3310 also supports audio communication for a voice-over IP solution, making the control of your video surveillance system more real-time.
End of Life Product - No Replacement
Please note that the VPort 3310 Series has been phased out. You can explore the VPort 461A and VPort 464 in the Video Servers.
Experience the convenient way to purchase the MOXA VPort 3310-T Video Server in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100BaseT(X) Ports (RJ45 connector) | 1 Port |
| Relay Channels | 2 x Channels (max. 24VDC@ 1A) |
| Digital Inputs | 2 x Channels: max. 8 mA, “High”: +13V to +30V “Low”: -30V to +3V |
| Video | |
| Video Inputs | 1, BNC connector |
| Video Output | 1, loop-trough BNC connector |
| Video Compression | MPEG4 (SP) |
| Video Streams | Compress analog video/audio signals in MPEG4 video stream, Video stream up to 30 frames/sec at CIF (352 x 240) resolution |
| Video Viewing | Adjustable image size and quality, B/W or Color control, Timestamp and text overlay |
| Audio | |
| Audio Inputs | 1 x Line-in port; 1 Mic-in port |
| Audio Outputs | |
| Audio Format | |
| Network | |
| Protocols | TCP, UDP, HTTP, SMTP, FTP, RTSP, RTP, RTCP, NTP, DNS, DDNS, IGMPv3, SNMPv3, DHCP, UPnP, and PPPoE |
| Serial Port | |
| PTZ Ports | 1 x RS-232/485 Port |
| COM Ports | 1 x RS-232 in DB9 Male or RS-485 in Terminal Block, max. 115.2 Kbps |
| Console Port | |
| PTZ (Pan/Tilt/Zoom) | |
| PTZ Camera Control | Via COM port |
| PTZ Control Functions | Pan, tilt, zoom |
| PTZ Function Updates | - |
| General | |
| MTBF | 152,000 hrs |
| SD Slot | |
| LED Indicators | PWR1: Power 1; PWR2: Power 2; FAULT: Power failure; VIDEO: Video input; AUDIO: Audio input; SERIAL: COM port status |
| Power Requirements | |
| Power Connector | - |
| Input Voltage | 24 VDC (Redundant dual power inputs) |
| Input Current | - |
| Security | |
| Password | User-level password protection |
| Filter | IP address |
| Authentication | |
| Encryption | |
| Alarms | |
| Intelligent Video | - |
| Video Motion Detection | with sensitivity tuning |
| Scheduling | - |
| Imaging | - |
| Custom Alarms | - |
| FTP Messaging | Automatic transfer of stored images via email or FTP with event- triggered actions |
| Pre-Alarm Buffer | - |
| Video Recording | - |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 52.98 x 135 x 105 mm 2.09 x 5.31 x 4.13 in |
| Weight | 790 g |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-Rail Mounting, Wall Mounting (with optional kit) |
| Standards and Certifications | EMI: FCC Part 15, CISPR (EN55022) class B; EMS: EN61000-4-2 (ESD), Level 3, EN61000-4-3 (RS), Level 3, EN61000-4-4 (EFT), Level 4, EN61000-4-5 (Surge), Level 3, EN61000-4-6 (CS), Level 3, EN61000-4-8, EN61000-4-11, EN61000-4-12; Shock: IEC60068-2-27; Freefall: IEC60068-2-32; Vibration: IEC60068-2-6 |
| Altitude | - |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Minimum Viewing System Requirements | |
| Memory Size | - |
| System OS | - |
| Browser | - |
| Multimedia | - |
