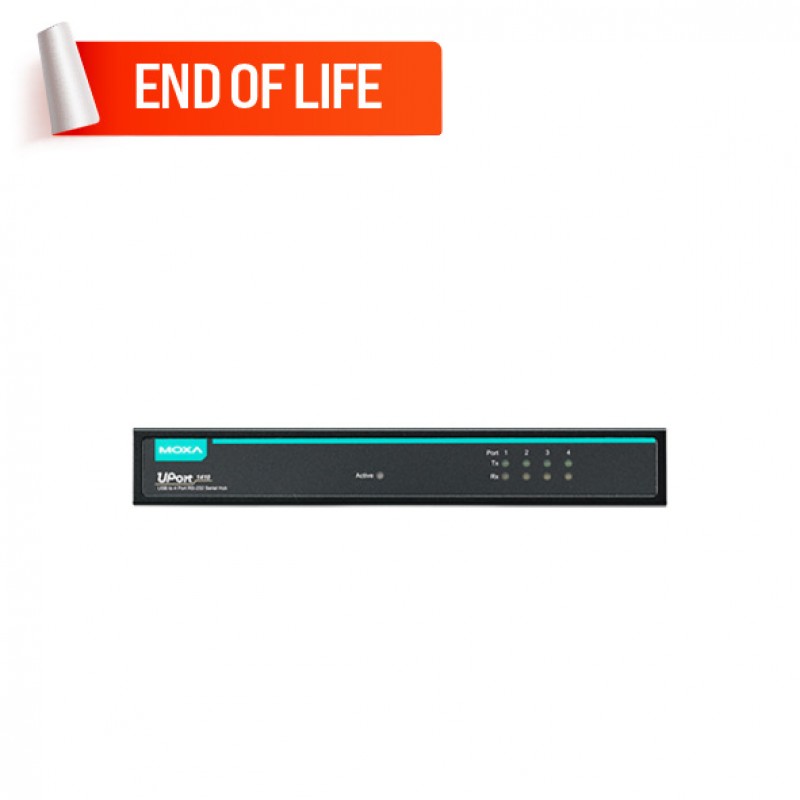

MOXA UPort 1410 USB to Serial Converter
- 1 x USB 2.0 Port (Type B connector)
- 4 x RS-232 Serial ports (DB9 male connector)
- 12 to 48 VDC input power range
- Metal body design
- Compatible Driver with Windows, Linux, macOS
- 0 to 55°C operating temperature
- Brand: MOXA
- Product Code: UPort 1410
Description
The UPort® 1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.
The UPort® 1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.
You can also find the UPort 1130, UPort 1610-16, and UPort 1650-16 models in the Industrial USB Converters.
You can explore our wide range of
products and enquire about the MOXA UPort 1410 USB to Serial Converter for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| USB Interface | |
|---|---|
| Number of Ports | 1 Port |
| USB Connector | USB type B |
| USB Standards | USB 1.1/2.0 compliant |
| Speed | 12 Mbps, 480 Mbps |
| Serial Interface | |
| Total number of serial ports | 4 x RS-232 Ports |
| Serial connection type | DB9-M with a mini DB9-F converter to the terminal |
| Serial Communication Parameters | Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, None |
| FIFO | 128bytes |
| Data transfer speed ( Baudrate ) | 50 bps to 921.6 kbps |
| Electrical isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| Compatible Operating Systems | |
| Windows Drivers | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT |
| Linux Drivers | Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x |
| Mac Drivers | macOS versions: 10.12 to 10.15, 11.x |
| General | |
| MTBF | 394,441 hrs |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 260 mA @ 12 VDC |
| Physical Characteristics | |
| Dimensions | 204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in) |
| Housing | Metal |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m, IEC 61000-4-8 PFMF; Safety: UL/IEC 62368-1; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard |
| Weight | 720 g (1.59 lb) |
