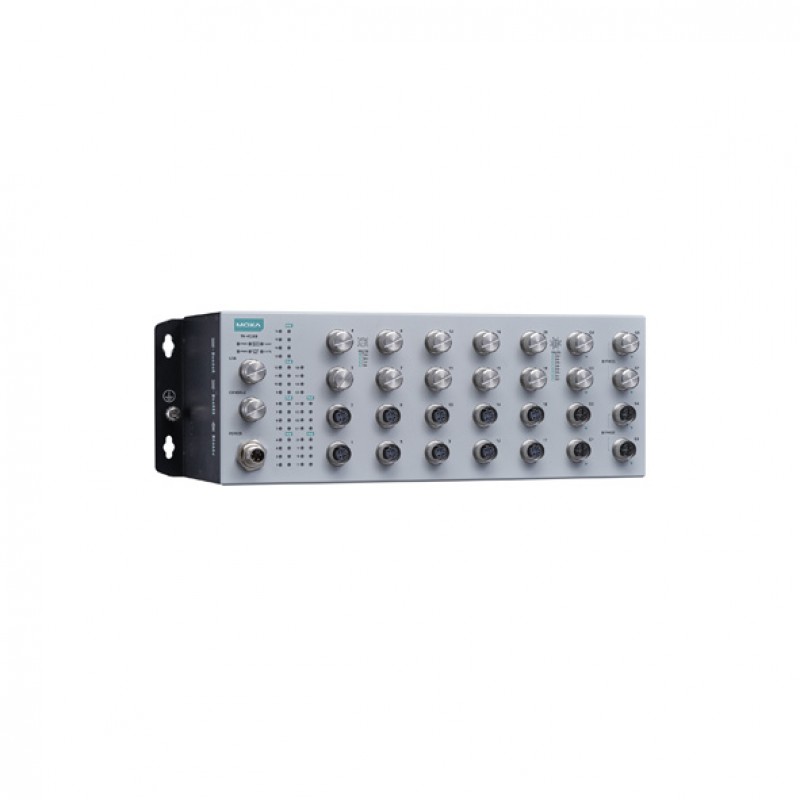

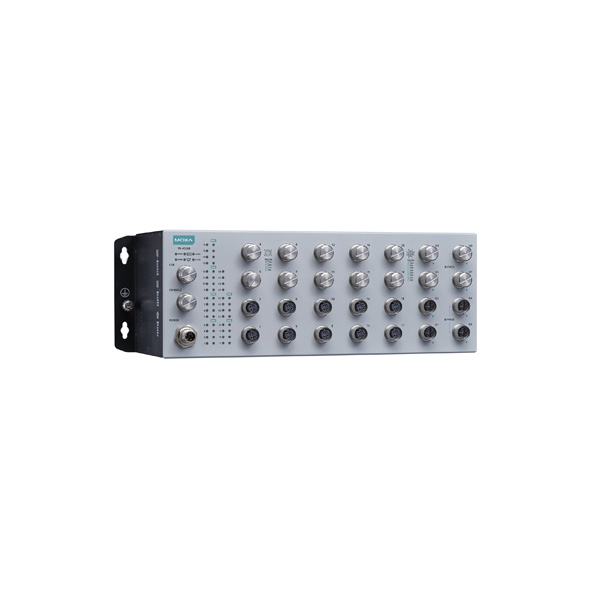

MOXA TN-4528B-20P-4G-4GP-CT-T Managed Ethernet Switch
- 20 x PoE Ports (10/100BaseT(X), M12 connector)
- 4 x 10/100/1000BaseT(X) Ports (M12 connector)
- 4 x PoE Ports (100/1000BaseT(X), M12 connector)
- Wallmount installation design
- 24 to 110 VDC Redundant dual power inputs
- Total PoE Power Budget: 150 W
- IP42-rated Metal body design
- -40 to 70°C operating temperature range
Description
The ToughNet TN-4500B Series M12 managed Ethernet switches
are designed for railway applications, including rolling stock installations.
The switches use M12 circular connectors to ensure tight, robust connections and guarantee reliable operation in industrial environments where vibration and
shock are commonplace. The TN-4500B Series Ethernet switches provide 8 to 28
Ethernet ports with or without IEEE 802.3at/af compliant PoE functionality. The
Gigabit models further feature up to 8 Gigabit Ethernet ports.
The 24 to 110 VDC wide power input range and isolated dual
power inputs not only allow you to use the same type of power source at
different sites around the globe but also increase the reliability of your
communication systems. Furthermore, the -40 to 70°C operating temperature range
of the switches ensures they can be deployed in harsh environments. TN-4500B
Series Ethernet switches are compliant with the mandatory sections of EN 50155,
covering operating temperature, power input voltage, surge, ESD, and vibration,
as well as conformal coating and power insulation, making the switches suitable
for a variety of industrial applications.
You can also find the TN-4508B-CT-T, TN-4512B-8P-4G-CT-T, TN-4516B-8P-4G-4GP-CT-T, and TN-4520B-12P-4G-4GP-CT-T models in the EN50155 Ethernet Switches.
Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA TN-4528B-20P-4G-4GP-CT-T Managed Ethernet Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 20 x PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector), 4 x 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector), 4 x PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector), 1 x Console Port (M12 connector), 1 x USB Port (M12 Connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 9.3 A @ 24 V |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24/36/48/72/96/110 VDC |
| Operating Voltage | 16.8 to 137.5 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 693,572 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 348 x 115 x 133 mm (13.70 x 4.53 x 5.24 in) |
| Housing | Metal |
| Installation | Wall mounting |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio Frequency: FCC; Railway: IEC 60068-2-1, EN 50155, IEC 60068-2-2, EN 50155, IEC 60068-2-30, EN 50155, IEC 60068-2-78, EN 50121-4, EN 50155, IEC 60571; Railway Fire Protection: EN 45545-2; Safety: UL 62368-1, IEC 62368-1, EN 62368-1, BSMI; Salt Spray Test: EN 50155; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Package Vibration Test: ISTA 1A; Package Drop Test: ISTA 1A; IP42; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 Issue 4 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 2,802 g (6.18 lb) |
| Standards and protocols | |
| Protocols and work standards | STP, RSTP, MSTP, Turbo Ring v2, Link Aggregation, Ring Coupling, Static Port Trunk, LACP, MRP, |
| Protocols and management standards | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server, DHCP Client, DHCP Relay Agent (Option 82), QoS/CoS/ToS, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Loop Protection, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier, Static Multicast |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
