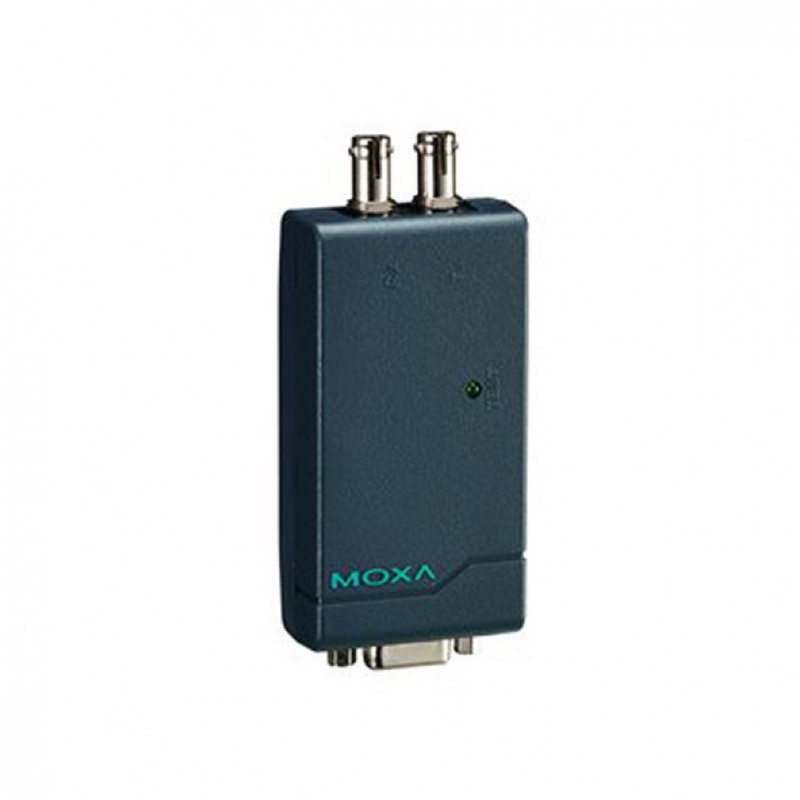

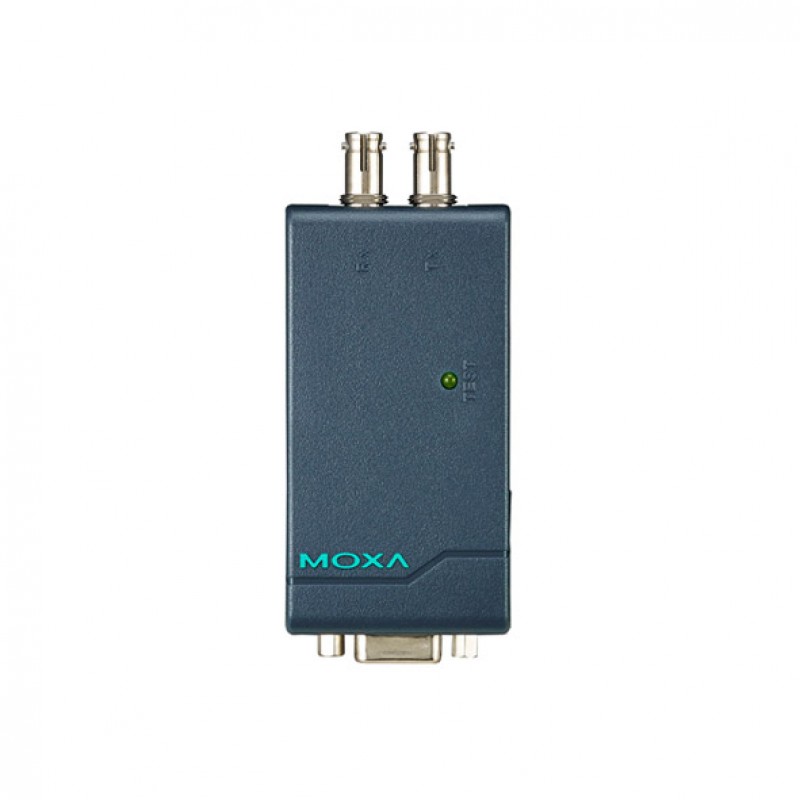

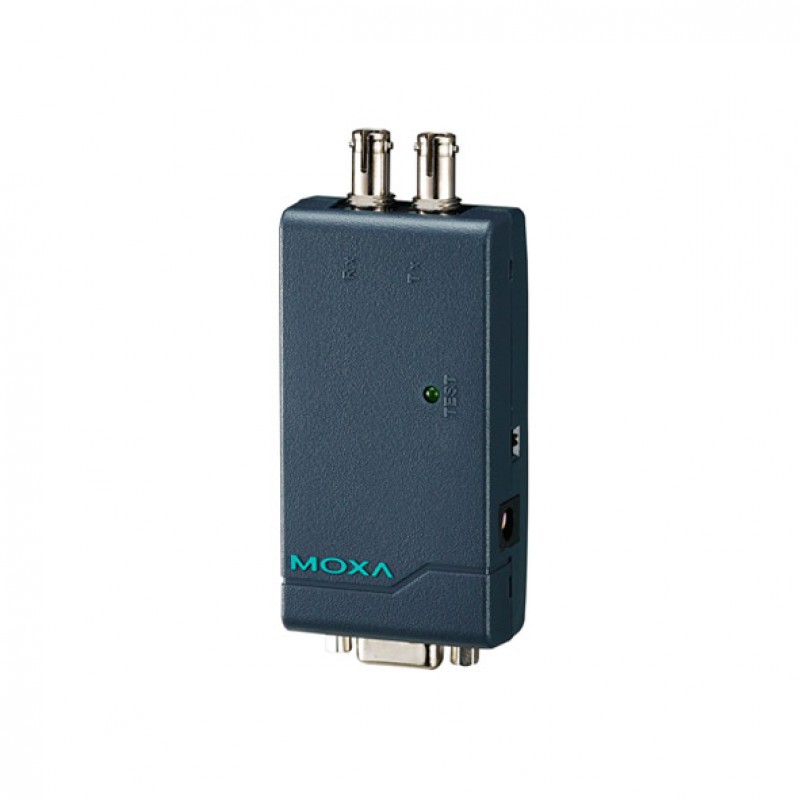

MOXA TCF-90-S-ST Serial to Fiber Converter
- Serial to Single-Mode Fiber-Optic Converter
- 1 ST fiber-optic port and 1 RS-232 serial port
- Power Input 12V DC to 48V DC
- Support for ring topologies or point-to-point
- Brand: MOXA
- Product Code: TCF-90-S-ST
Description
The TCF-90 is a compact media converter that transmits RS-232 signals over optical fiber. Power is derived from either the serial port or an external power source. The TCF-90 extends RS-232 transmission up to 5 km with multi-mode fiber or up to 40 km with single-mode fiber. A pair of TCF-90 converters can be used to connect two RS-232 devices with optical fiber in full-duplex mode. The optical fiber isolates the data signals from dangerous increases in ground potential, ground loops, and electrical EMI/RFI noise, and it enhances data security by eliminating the harmful effects of RF radiation and susceptibility to electromagnetic radiation.
Easy World Automation offers the easiest way to buy the MOXA TCF-90-S-ST Serial to Fiber Converter and all the MOXA Industrial Media Converters in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Converter specifications | |
|---|---|
| Data transfer speed | - |
| Maximum data transmission distance | 40Km on fiber |
| Minimum output power converter | -5dBm |
| Sensitivity to receiving information | -24dBm |
| Wavelength | 1310nm |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 12V DC, 0.2A to 48V DC |
| Power Input Plugin ( Redundant ) | |
| Standards and protocols | |
| Point-to-point topology | Half-duplex or full-duplex |
| Ring topology | Half-duplex |
| RS-232 Signals | TxD, RxD, GND |
| RS-422 Signals | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| Interface | |
| 10/100Mb RJ45 (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 ST Port |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| Number of 10/100Mb PoE port | |
| USB | |
| DSL | |
| Serial port | : 1 RS-232 Port |
| Other ports | |
| General | |
| Fan / Fanless | - |
| MTBF | 2,272,562 hour |
| Require cable diameter | 8.3/125μm, 8.7/125μm, 9/125μm, 10/125μm |
| Physical Characteristics | |
| Dimensions | 42x80x22mm |
| Housing | Plastic |
| Installation | - |
| Isolation | |
| Operating Temperature | 0 to 60 ° C |
| Operation Humidity | - |
| Operation Humidity | 5% to %95 non-condensing |
| Protection against excessive consumption | |
| Protection against reverse flow | |
| Standards and Certifications | Safety: UL 60950-1; EMC: CE, FCC; EMI: FCC Part 15 Subpart B Class B; EMS: IEC 61000-4-2 (ESD) Level 2, IEC 61000-4-3 (RS) Level 2, IEC 61000-4-4 (EFT) Level 2, IEC 61000-4-5 (Surge) Level 3, IEC 61000-4-6 (CS) Level 2, IEC 61000-4-8 (SFMF) Level 1; Green Product: RoHS, CRoHS, WEEE |
| Storage Temperature | -20 to 75 ° C |
| Weight | 0.15Kg |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
