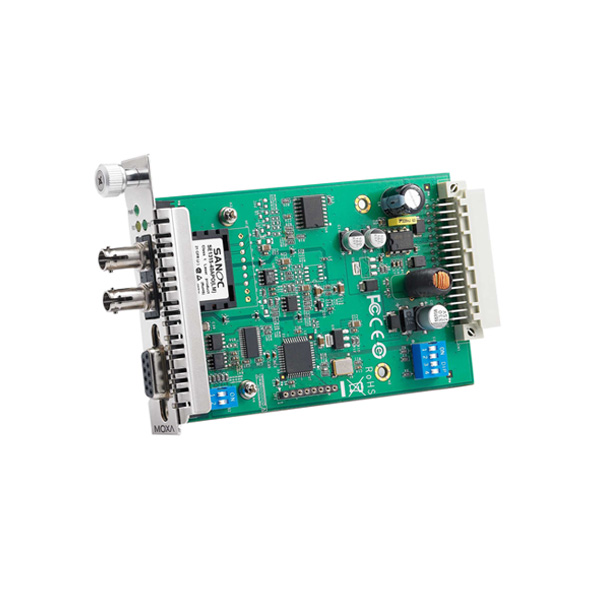

MOXA TCF-142-M-ST-RM Serial to Fiber Slide-in Module
- 1 x RS-232/422/485 port, 1 x 100Mbps F(x) multi-mode port with ST connector
- Metal body
- 0 to 60°C operating temperature
- slide-in modules for the NRack System
- Supports ring and point-to-point transmission
- 12 to 48 VDC input power
.png)
Description
The TCF-142-RM Series slide-in modules are serial-to-fiber converters that work with the TRC-190 chassis. The modules convert from the RS-232, RS-422, or RS-485 signal to a fiber-optic signal.
Automatic Baudrate Detection
The TCF-142-RM Series can automatically detect the serial baud rate. This is an extremely convenient feature. Even if a device’s baud rate is changed, the signal will still be transmitted through the media converter without any problem.
You can also find the TCF-142-M-SC, TCF-142-S-ST-RM, and TCF-142-S-SC-T models in the Industrial Media Converters.
Inquire about the MOXA TCF-142-M-ST-RM Serial to Fiber Slide-in Module, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| Converter specifications | |
|---|---|
| Data transfer speed | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Maximum data transmission distance | 5 km |
| Minimum output power converter | - |
| Sensitivity to receiving information | - |
| Wavelength | TX : 840 to 860 to 1330, RX : 800 to 900 |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 150 mA @ 12 VDC |
| Power Input Plugin ( Redundant ) | |
| Standards and protocols | |
| Point-to-point topology | |
| Ring topology | |
| RS-232 Signals | TxD, RxD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| Interface | |
| 10/100Mb RJ45 (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 x multi-mode port with ST connector |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| Number of 10/100Mb PoE port | |
| USB | |
| DSL | |
| Serial port | : 1 x RS-232/422/485 Port |
| Other ports | |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 514,926 hrs |
| Require cable diameter | 50/125 µm, 800 MHz, 62.5/125 µm, 500 MHz |
| Physical Characteristics | |
| Dimensions | 86.8 x 136.5 x 21 mm (3.42 x 5.37 x 0.83 in) |
| Housing | Metal |
| Installation | - |
| Isolation | |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Protection against excessive consumption | - |
| Protection against reverse flow | - |
| Standards and Certifications | EMC, EMI, EMS, Environmental Testing, Safety, Vibration |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Weight | 0.1Kg |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
