Description

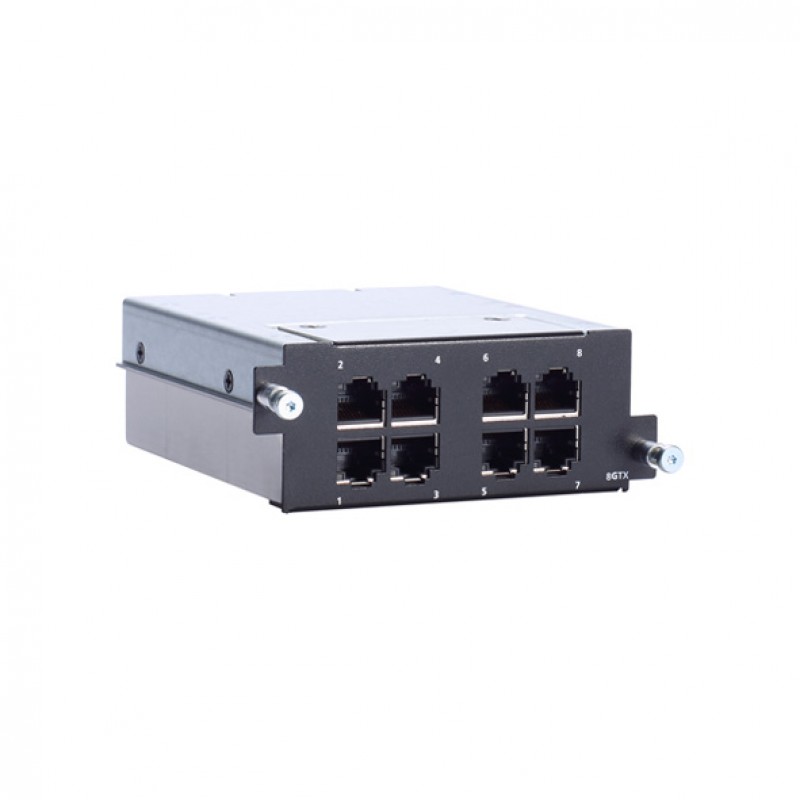

The RM-G4000 Module Series includes Gigabit and Fast
Ethernet modules for the RKS-G4000 Series rack-mount Ethernet switches. Each
RM-G4000 Series module supports up to 8 ports with a variety of interface types
including TX, MSC, SSC, and MST media types. Additionally, the RM-G4000-8GPoE
and RM-G4000-8PoE modules provide the RKS-G4000 Series PoE models with
high-capacity PoE functionality. IEEE 1588 interface modules provide
hardware-based PTP functions for precise time synchronization across the network.
You can also find the RM-G4000-8GSFP and the RM-G4000-8TX models in the Rackmount Ethernet Switches.
You can explore our wide range of products and enquire about
the MOXA RM-G4000-8GTX Ethernet Module for your industrial automation needs. Our sales experts will pave the
way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the
Middle East.
Specification
| INTERFACE | |
|---|---|
| Ports | 8 x 10/100/1000BaseT(X) Ports |
| Connector | RJ45 |
| Typical Distance | - |
| POWER REQUIREMENTS | |
| Power Information | Power Consumption (Max.): 4.22 W |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | - |
| Weight | 300 g (0.66 lb) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | - |
| Ambient Relative Humidity | - |
| Standards and Certifications | Telcordia (Bellcore), GB |
| MTBF | 12,132,675 hrs |
