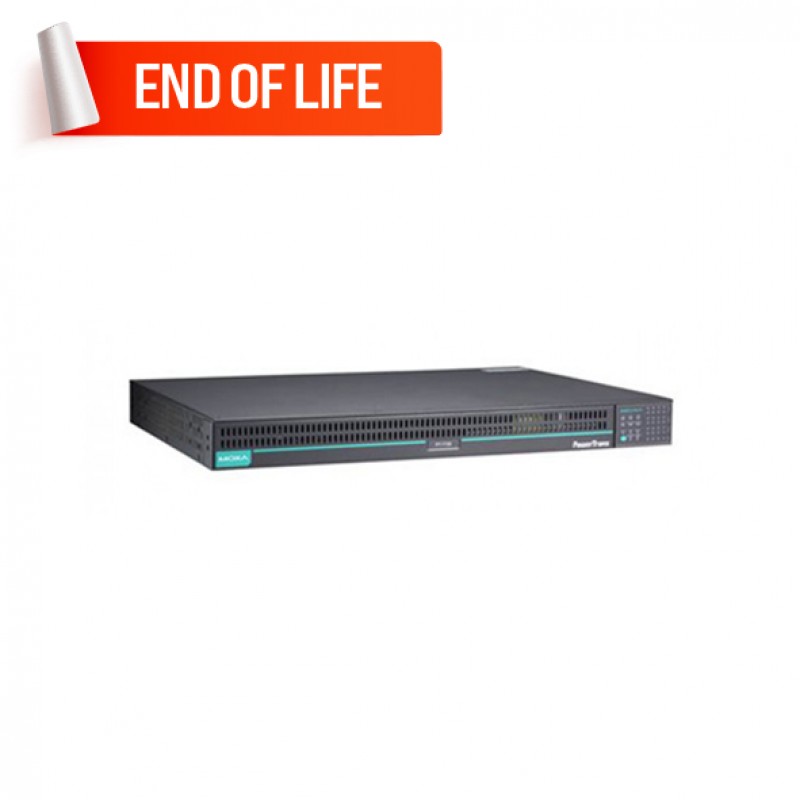

MOXA PT-7728-R-48 Managed Ethernet Switches

  • Up to 4 Gigabit Ports, Up to 24 Fast Ethernet Ports
  • Rackmount
  • Aluminum body
  • -40 to 85°C operating temperature
  • IEC 61850-3, IEEE 1613 (power substations), and EN 50121-4 (railway applications) compliant
  • EC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant1
  • Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
  • Complies with a portion of EN 50155 specifications
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),2 RSTP/ STP, and MSTP for network redundancy
  • VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
  • Isolated power input with universal 48 VDC power supply range
  • Rear Cabling Direction

  • Brand: MOXA
  • Product Code: PT-7728-R-48

Description

The PT-7728 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN 50121-4), and also features critical packet prioritization (GOOSE and SMVs) and a built-in MMS server. The PT-7728’s Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. The modular design of the PT-7728 also makes network planning easy and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 Fast Ethernet ports. Along with the optional front or rear wiring, these features together make the PT-7728 suitable for a variety of industrial applications.

You can also find the PT-7728-PTP-F-24-HV, PT-7728-R-48-HV, and PT-7728-PTP-R-HV models in the Rackmount Ethernet Switches.

You can explore our wide range of products and enquire about the MOXA PT-7728-R-48 Managed Ethernet Switches for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

Specification

Interface
Number of ports 28 Ports
10/100Mb RJ45 (Megabit) Ports : 24 Ports
10/100/1000Mb RJ45 (Gigabit) Ports : 4 Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Prots
100Mb SFP Fiber optic (Megabit) Ports
10/100/1000Mb (Gigabit) POE Ports
Features and capabilities
Backup ABC-01 automatic backup configurator
LED Indicators
LED Per Port
Power
Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 48 VDC (36 to 72 VDC), 1.12 A @ 48 VDC
Power Input Plugin ( Redundant )
General
Fan / Fanless Fanless
MTBF 393,828 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation -
Physical Characteristics
Dimensions 440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in)
Housing Aluminum
Installation 19-inch rack mounting
Operating Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety, EMI, EMS, IEC 61850-3, IEEE 1613, EN 50121-4, EN 50155, NEMA TS2
Storage Humidity -
Storage Temperature -40 to 85°C (-40 to 185°F)
Standards and protocols
Protocols and work standards IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Fiber check
Package Checklist
Hardware installation guide
Power adapter
Power cable
