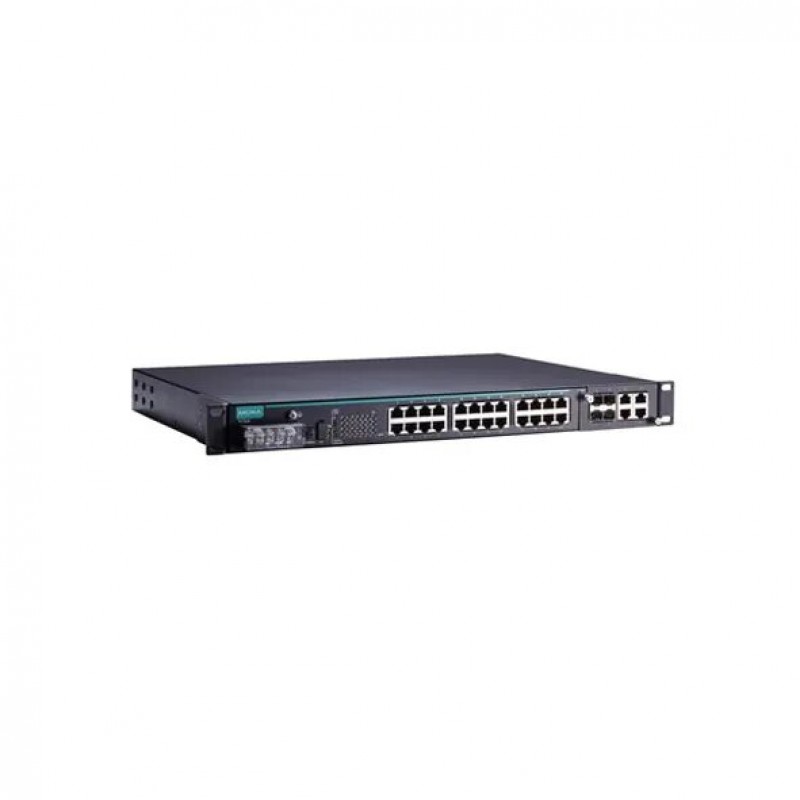

MOXA PT-7528-24TX-WV Managed Rackmount Ethernet Switch
- 24 x 10/100Mbps T(X) ports
- 19-inch rack mounting
- Aluminum body
- -40 to 85°C operating temperature
- 24/48 VDC input voltage
- IEC 61850-3 and IEEE 1613 compliant
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
.png)
Description
The PT-7528 Series is designed for power substation automation applications that operate in extremely harsh environments. The PT-7528 Series supports Moxa’s Noise Guard technology, is compliant with IEC 61850-3, and its EMC immunity exceeds IEEE 1613 Class 2 standards to ensure zero packet loss while transmitting at wire speed. The PT-7528 Series also features critical packet prioritization (GOOSE and SMVs), a built-in MMS server, and a configuration wizard designed specifically for substation automation.
With Gigabit Ethernet, redundant ring, and 110/220 VDC/VAC isolated redundant power supplies, the PT-7528 Series further increases the reliability of your communications and saves cabling/wiring costs. The wide range of PT-7528 models available supports multiple types of port configuration, with up to 28 copper or 24 fiber ports, and up to 4 Gigabit ports. Taken together, these features allow greater flexibility, making the PT-7528 Series suitable for a variety of industrial applications.
You can also find the PT-7528-24TX-WV-HV, PT-7528-24TX-HV, and PT-7528-24TX-WV-WV models in the Rackmount Ethernet Switches.
You can explore our wide range of
products and enquire about the MOXA PT-7528-24TX-WV Managed Rackmount Ethernet Switch for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Interface | |
|---|---|
| Number of ports | 24 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 24 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 10/100Mb (Megabit) POE Ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 24/48 VDC (18 to 72 VDC) |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 771,320 hrs |
| Switch specifications | |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | - |
| Physical Characteristics | |
| Housing | Aluminum |
| Installation | 19-inch rack mounting |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety, EMI, EMS, IEC 61850-3, IEEE 1613 Class 2, Note: Models with MCS and SSC fiber ports are compliant with IEEE 1613 Class 1, EN 50121-4, NEMA TS2 |
| Storage Humidity | - |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Fiber check |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
