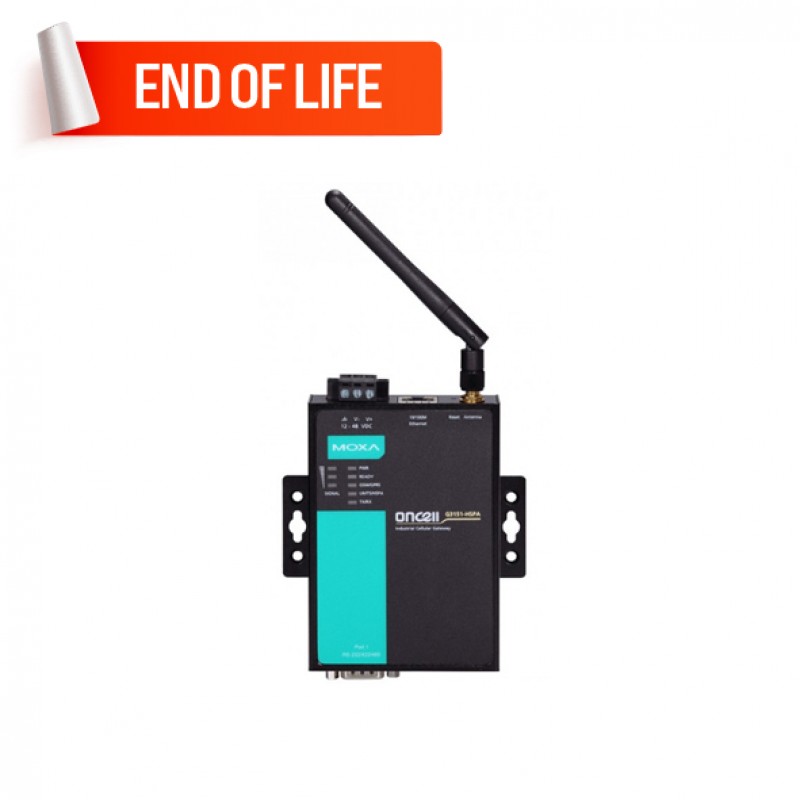

MOXA OnCell G3151-HSPA Cellular Advanced IP Gateways

  • Supports GSM, GPRS, EDGE, UMTS, HSPA Standards
  • 1 x 10/100BaseT(X) Port (RJ45 connector)
  • 1 x RS-232/422/485 Serial port (DB9 female connector)
  • IP30-rated Aluminum body design
  • 12 to 48 VDC input power range
  • -30 to 55°C operating temperature

Description

The OnCell G3111/G3151-HSPA Series consists of cellular IP gateways that can conveniently and transparently connect your existing Ethernet and serial devices to a 3G cellular network. With the integrated GuaranLink feature, you can be confident that your device will always stay connected or will recover from any unexpected interference. With Moxa’s industrial design, higher EMS levels are tested to ensure the highest reliability for any harsh environment. The G3111/G3151-HSPA cellular IP gateways are the most compact, simple, and robust industrial 3G solution.


End of Life Product - Replacement Available

Please note that the OnCell G3101-HSPA Series has been phased out and replaced by the OnCell 3120-LTE-1 Series.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA OnCell G3151-HSPA Cellular Advanced IP Gateways through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
SIM card slot : 1 slot (3 V)
Ethernet Ports : 1 x 10/100BaseT(X) Port (RJ45 connector)
USB
Digital Input and Output
Serial port : 1 x RS-232/422/485 Port (DB9 female connector)
Alert Output
Band Options UMTS/HSPA 800 MHz / 850 MHz / 900 MHz / 1900 MHz / 2100 MHz Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz
Cellular Standards GSM, GPRS, EDGE, UMTS, HSPA
Cellular Antenna Connectors 1 x SMA female
WLAN Standards
WLAN Antenna Connector
GPS Antenna Connector
Radio specifications
Radio Connection type GuaranLink
Maximum data transfer speed of 2G EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 85.6Kbps
Maximum data transfer speed of 3G 14.4 Mbps download speed, 5.76 Mbps upload speed
Maximum data transfer speed of 4G -
WiFi Radio Frequency
Software Specifications
Routing Redundancy
VPN
Firewall NAT, port forwarding, WAN IP filtering
Time Management SNTP
Management -
General
LED Indicators -
MTBF 1,815,281 hrs
Operating mode Router, 3G Modem
Standards and protocols
Protocols ARP, DDNS, DHCP Server/Client, BOOTP, DNS Relay, HTTP, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, Web Console, Wireless Search Utility, Serial Console, Telnet Console, Remote SMS Control, OnCell Central Manager, GuaranLink
Features and capabilities
Send and receive SMS
Security
Security and Encryption Security: HTTPS/SSL, SSH
Authentication
Power Requirements
Power Connector Terminal block
Power Consumption (Output Adapter) -
Input Voltage 12 to 48 VDC
POE Support
Input Current 0.9 A @ 12 VDC, 0.23 A @ 48 VDC
Reverse Polarity Protection Supported
Buttons
Power button
Reset
Physical Characteristics
Installation DIN-rail mounting
Dimensions 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
Housing Aluminum
Weight 170 g (0.38 lb)
Operating Temperature -30 to 55°C (-22 to 131°F)
Storage Humidity 5 to 95% (non-condensing)
Storage Temperature -40 to 75°C (-40 to 167°F)
Type of Use Industrial environment
Standards and Certifications Safety: UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Radio Frequency: EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511, EN 301 908, FCC Part 22H, FCC Part 24E; IP30; Telcordia SR332
