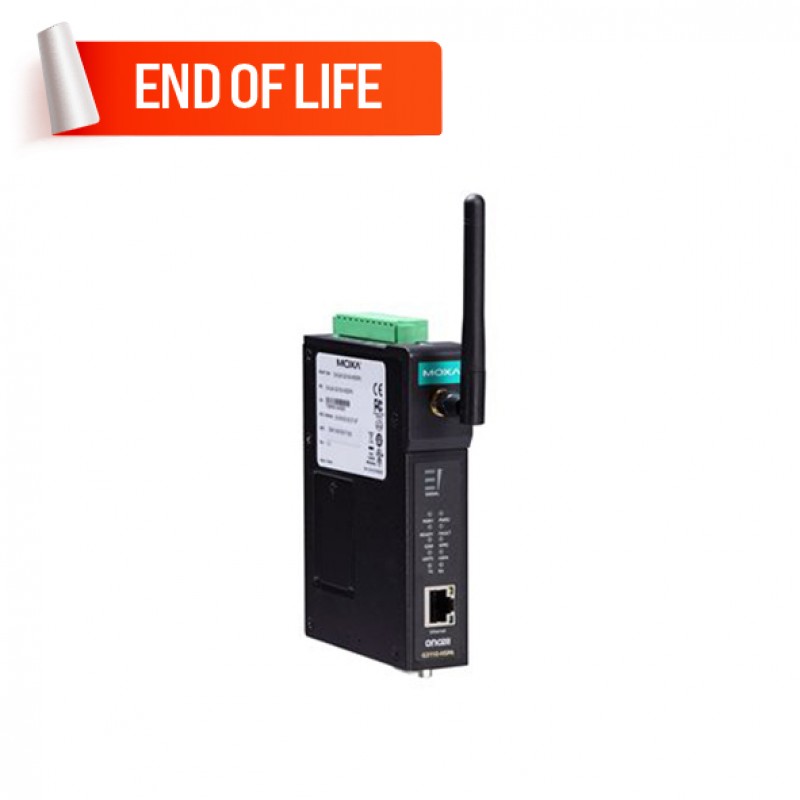

MOXA OnCell G3150-HSPA Cellular Advanced IP Gateways
- Supports GSM, GPRS, EDGE, UMTS, HSPA Standards
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x RS-232/422/485 Serial port (Terminal block connector)
- IP30-rated Aluminum body design
- 12 to 48 VDC Redundant dual power inputs
- DIN-rail mounting
- -30 to 55°C operating temperature
- Brand: MOXA
- Product Code: OnCell G3150-HSPA
.png)
Description
The OnCell G3110/G3150-HSPA Series of high-speed industrial-grade IP gateways are intelligent wireless communication platforms that connect your Ethernet and serial devices over a cellular TCP/IP network. The OnCell G3110/G3150-HSPA Series offers connectivity to all five HSPA/UMTS frequency bands and quad GSM/GPRS/EDGE frequency bands used in Europe and the United States, allowing the most flexible global deployment on the best available network.
The OnCell G3110/G3150-HSPA products come with private IP management software and support VPN for handling IP addresses on cellular networks. A built-in relay output can be configured to indicate the priority of events when notifying or warning engineers in the field. Two digital inputs allow you to connect basic I/O devices, and the OnCell G3110/G3150-HSPA Series comes with redundant power inputs to ensure non-stop operation.
End of Life Product - Replacement Available
Please note that the OnCell G3100-HSPA Series has been phased out and replaced by the OnCell 3120-LTE-1 Series and OnCell G4302-LTE4 Series.
Easy World Automation offers the
easiest way to buy the MOXA OnCell G3150-HSPA Cellular Advanced IP Gateways in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | : 1 slot (3 V) |
| Ethernet Ports | : 1 x 10/100BaseT(X) Port (RJ45 connector) |
| USB | |
| Digital Input and Output | : 2 inputs |
| Serial port | : 1 x RS-232/422/485 serial port (terminal block connector) |
| Alert Output | : 1 Output |
| Band Options | UMTS/HSPA 2100 MHz / 1900 MHz / AWS / 850 MHz / 900 MHz, Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz |
| Cellular Standards | GSM, GPRS, EDGE, UMTS, HSPA |
| Cellular Antenna Connectors | 1 x SMA female |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | GuaranLink |
| Maximum data transfer speed of 2G | EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 85.6Kbps |
| Maximum data transfer speed of 3G | 14.4 Mbps download speed, 5.76 Mbps upload speed |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | |
| VPN | - |
| Firewall | NAT, port forwarding, WAN IP filtering |
| Time Management | SNTP |
| Management | ARP, DDNS, DHCP Server/Client, BOOTP, DNS Relay, HTTP, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, Web Console, Wireless Search Utility, Serial Console, Telnet Console, Remote SMS Control, OnCell Central Manager, GuaranLink |
| General | |
| LED Indicators | - |
| MTBF | 826,202 hrs |
| Operating mode | Router, 3G Modem |
| Standards and protocols | |
| Protocols | - |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Security: HTTPS/SSL, SSH |
| Authentication | |
| Power Requirements | |
| Power Connector | Terminal block |
| Power Consumption (Output Adapter) | - |
| Input Voltage | 12 to 48 VDC (Redundant dual power inputs) |
| POE Support | |
| Input Current | 0.9 A @ 12 VDC, 0.23 A @ 48 VDC |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail mounting |
| Dimensions | 28 x 126 x 93 mm (1.1 x 4.94 x 3.64 in) |
| Housing | Aluminum |
| Weight | 445 g (0.98 lb) |
| Operating Temperature | -30 to 55°C (-22 to 131°F) |
| Storage Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | Safety: UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Radio Frequency; Freefall: IEC 60068-2-31; IP30; Telcordia SR332Power button |
