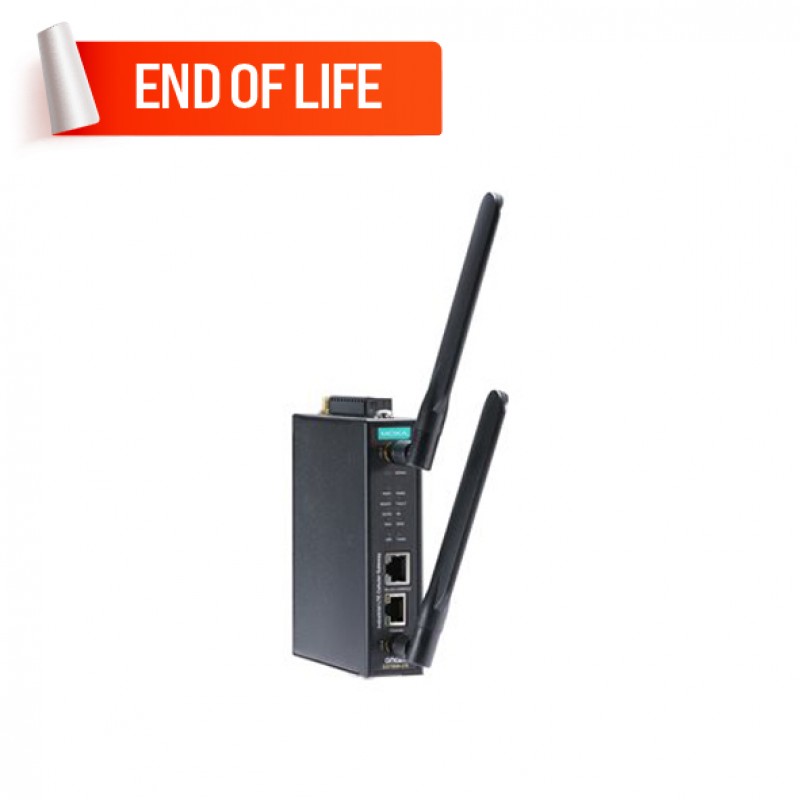

MOXA OnCell G3150A-LTE-EU-T Industrial Cellular Gateway
- Supports EU Frequency Band
- Supports GSM, GPRS, EDGE, UMTS, HSPA, LTE CAT-3 Standards
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 1 x RS-232/422/485 Serial port (DB9 male connector)
- IP30-rated Aluminum body design
- 12 to 48 VDC Redundant dual power inputs
- DIN-rail and Wall mounting
- -30 to 70°C operating temperature
.png)
Description
The OnCell G3150A-LTE is a reliable, secure, LTE gateway with state-of-the-art global LTE coverage. This LTE cellular gateway provides a more reliable connection to your serial and Ethernet networks for cellular applications.
To enhance industrial reliability, the OnCell G3150A-LTE features isolated power inputs, which together with high-level EMS and wide-temperature support give the OnCell G3150A-LTE the highest level of device stability for any rugged environment. In addition, with dual-SIM, GuaranLink, and dual power inputs, the OnCell G3150A-LTE supports network redundancy to ensure uninterrupted connectivity.
The OnCell G3150A-LTE also comes with a 3-in-1 serial port for serial-over-LTE cellular network communication. Use the OnCell G3150A-LTE to collect data and exchange data with serial devices.
End of Life Product - Replacement Available
Please note that the OnCell G3150A-LTE Series has been phased out and
replaced by the OnCell G4302-LTE4 Series.
Inquire about the MOXA OnCell G3150A-LTE-EU-T Industrial Cellular Gateway, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 slots |
| Ethernet Ports | : 1 x 10/100BaseT(X) Port (RJ45 connector) |
| USB | |
| Digital Input and Output | : Digital Input (+13 to +30 V for state 1 3 to -30 V for state 0) |
| Serial port | : 1 x RS-232/422/485 Port (DB9 male connector) |
| Alert Output | : 1, Resistive load: 1 A @ 24 VDC |
| Band Options | LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz), UMTS/HSPA 2100 MHz / 1900 MHz / 850 MHz / 800 MHz / 900 MHz |
| Cellular Standards | GSM, GPRS, EDGE, UMTS, HSPA, LTE CAT-3 |
| Cellular Antenna Connectors | 2 x SMA female |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | 1 SMA female, GPS (1575.42 MHz), GLONASS (1602 MHz) |
| Radio specifications | |
| Radio Connection type | GuaranLink |
| Maximum data transfer speed of 2G | EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 42.8 kbps |
| Maximum data transfer speed of 3G | 42 Mbps download speed, 5.76 Mbps upload speed |
| Maximum data transfer speed of 4G | 20 MHz bandwidth: 100 Mbps download speed, 50 Mbps upload speed 10 MHz bandwidth: 50 Mbps download speed, 25 Mbps upload speed |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | |
| VPN | IPsec, GRE, and OpenVPN |
| Firewall | Filter: MAC, IP protocol, port-based, Access IP list |
| Time Management | SNTP Client |
| Management | ARP, DDNS, DHCP server, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TCP/IP, UDP, Web Console, Serial Console, Telnet Console, Remote SMS Control, Wireless Search Utility, OnCell Central Manager, GuaranLink |
| General | |
| LED Indicators | - |
| MTBF | 528,596 hrs |
| Operating mode | Cellular Gateway |
| Standards and protocols | |
| Protocols | - |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Security: HTTPS, IPsec VPN Encryption: DES, 3DES, AES, MD5, SHA-1, DH2, DH5, Open VPN Encryption: Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC |
| Authentication | PSK/X.509/RSA |
| Power Requirements | |
| Power Connector | Terminal block |
| Power Consumption (Output Adapter) | - |
| Input Voltage | Redundant dual inputs, 12 to 48 VDC |
| POE Support | |
| Input Current | 0.7 A @ 12 VDC, 0.2 A @ 48 VDC |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Dimensions | 126 x 30 x 107.5 mm (4.96 x 1.18 x 4.23 in) |
| Housing | Metal |
| Weight | 0.492kg |
| Operating Temperature | -30 to 70°C (-22 to 158°F) |
| Storage Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | Safety: UL 60950-1; Hazardous Locations: ATEX, IECEx; EMC: EN 61000-6-2/-6-4; EMI: CISPR 22, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz, IEC 61000-4-8: 30 A/m; Freefall: IEC 60068-2-32; Vibration IEC 60068-2-6; Shock: IEC 60068-2-27; Radio Frequency: FCC ID N7NMC7355, EN 301 489-1, EN 301 489-7, EN 301 511; IP30; Telcordia SR332 |
