Description

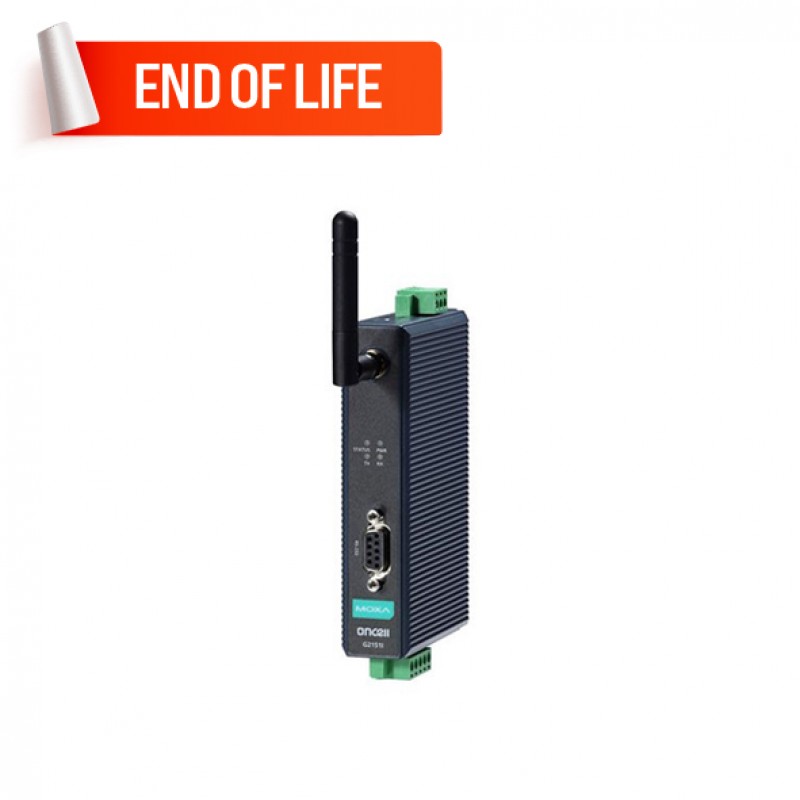

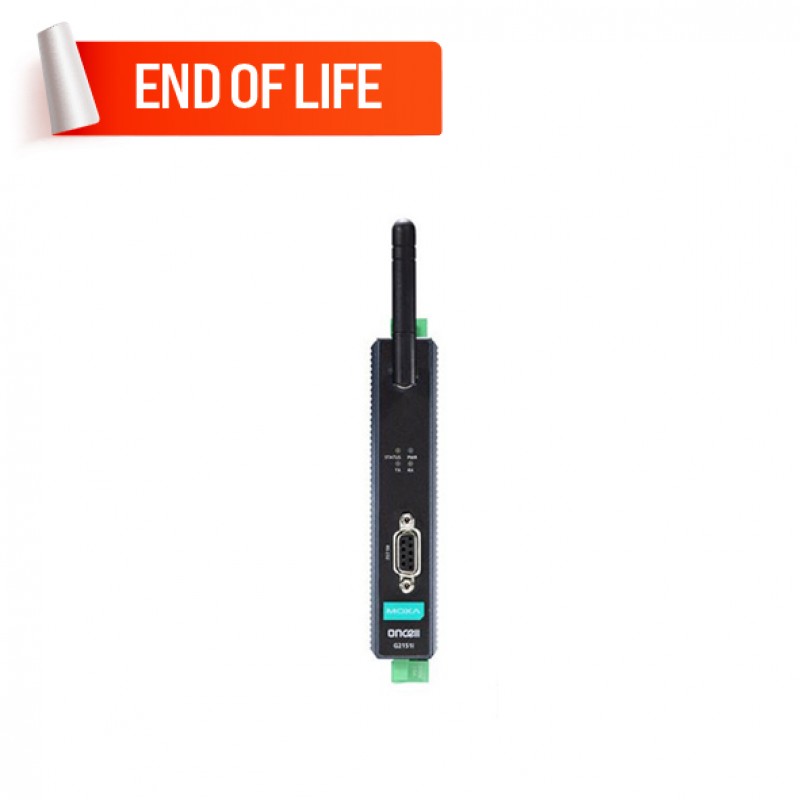

The OnCell G2111/G2151I Series of industrial quad-band GSM/GPRS modems are designed to transmit data and short messages (SMS) over GSM/ GPRS mobile networks. The modems can be used to increase the efficiency of maintenance and communication, but do not require extensive training. In addition, the modems can be mounted on a DIN rail or wall. The OnCell G2111/G2151I Series modems accept a 12 to 48 VDC power input, making them suitable for use with a variety of field power sources.
The serial ports feature 15 kV ESD line protection to protect the products from harmful electrical discharge, and separate RS-232 and RS-422/485 interfaces are built into the OnCell G2151I, each with 2.5 kV RMS isolation protection for one minute. The two serial interfaces on the OnCell G2151I make it ideal for attaching all kinds of devices, such as stand-alone controllers, PC COM ports, and multi-dropped electric meters. In addition, the OnCell G2111-T has an extended operating temperature (-25 to 70°C) design that makes it suitable for heavy industrial use.
You can also find the OnCell G2111-T and OnCell G2111 models in the Cellular Compact Gateways and Modems.
Inquire about the MOXA OnCell G2151I Industrial Cellular Modem, designed
for industrial automation solutions. Feel free to get in touch with our sales
team to give you the best solutions at the best global price in the Middle East
(UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Memory card slot for storage | |
| MicroUSB | |
| SIM card slot | : 1 SIM card slot |
| WAN | |
| LAN | |
| USB | |
| FXO / FXS | |
| DSL | |
| Digital Input and Output | |
| Serial port | : 1 DB9-F port and 1 TB port |
| Alert Output | |
| Radio specifications | |
| Standards and Wireless Standards | |
| 2G , 3G , 4G Standards | GSM/GPRS |
| Radio Connection type | - |
| WiFi Antenna | |
| 4G / 3G / 2G Antenna | 1 external antenna |
| WiFi Gain Antenna | |
| 4G / 3G / 2G Gain Antenna | - |
| Maximum WiFi data transfer speed | |
| Maximum data transfer speed of 2G | GPRS: Download speed 85.6Kbps, upload speed 42.8Kbps |
| Maximum data transfer speed of 3G | |
| WiFi Radio Frequency | |
| 2G network frequency | 850MHz, 900MHz, 1800MHz, 1900MHz |
| 3G network frequency | |
| Number of radio channels | |
| Maximum direct range | |
| Maximum WiFi Output Power | |
| Radio Channel Bandwidth | |
| Software Specifications | |
| VPN | |
| Firewall | - |
| WPS | |
| Cloud computing feature | |
| Serial performance | - |
| General | |
| Operating mode | Router, GSM Modem |
| Management | - |
| Standards and protocols | |
| Protocols | AT Commands |
| Serial port standard | RS-232/422/485 |
| Features and capabilities | |
| 3G phone calls | |
| Create and edit phonebook | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | - |
| Authentication | - |
| Serial security | - |
| SSID | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | 12V DC to 48V DC |
| POE Support | |
| Battery | |
| Type of power input | Terminal with 3 inputs |
| Buttons | |
| Power button | |
| 3G / WAN button | |
| WPS button | |
| Reset | |
| LED Indicators | |
| Phone | |
| SMS | |
| WLAN | |
| 3G / 2G | |
| WAN | |
| LAN | |
| Power | |
| Internet | |
| Wireless Signal Strength | |
| WPS | |
| Physical Characteristics | |
| Dimensions | 27x123x79mm |
| Weight | 0.15Kg |
| Operating Temperature | 0 to 55 ° C |
| Storage Humidity | 5% to %95 Non-condensing |
| Storage Temperature | -40 to 75 ° C |
| Type of Use | Industrial environment |
| Standards and Certifications | Safety : UL 60950-1; EMC: FCC Part 15 Subpart B Class A EN 55022 Class A, EN 55024; Radio:FCC Part 22H, FCC Part 24E EN 301 489-1, EN 301 489-7 EN 301 511 |
| Optical isolation | 2.5KV |
