Description

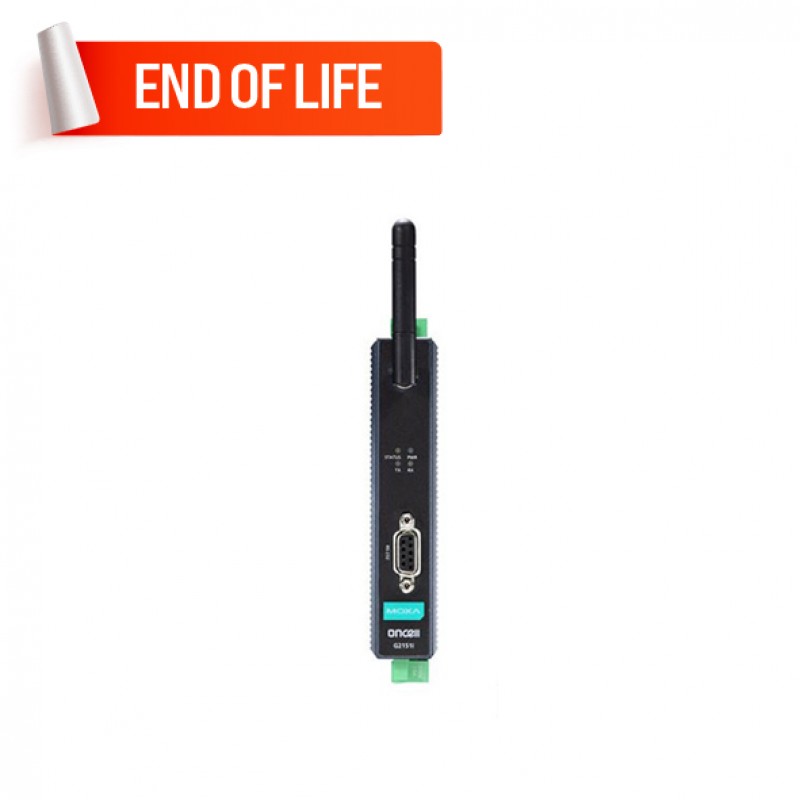

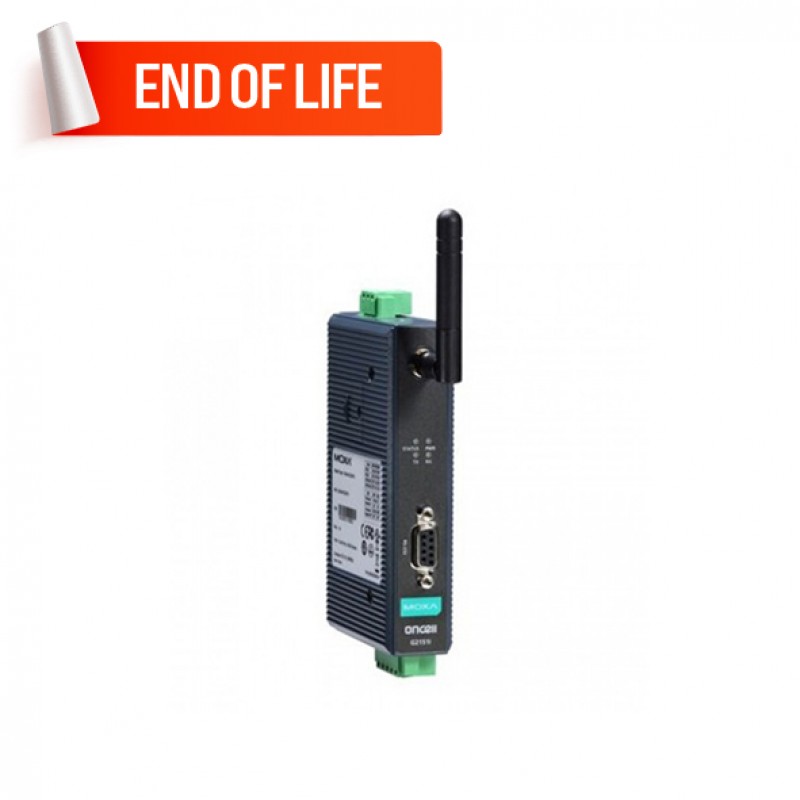

The OnCell G2111/G2151I Series of industrial quad-band GSM/GPRS modems are designed to transmit data and short messages (SMS) over GSM/ GPRS mobile networks. The modems can be used to increase the efficiency of maintenance and communication, but do not require extensive training. In addition, the modems can be mounted on a DIN rail or wall. The OnCell G2111/G2151I Series modems accept a 12 to 48 VDC power input, making them suitable for use with a variety of field power sources.
The serial ports feature 15 kV ESD line protection to protect the products from harmful electrical discharge, and separate RS-232 and RS-422/485 interfaces are built into the OnCell G2151I, each with 2.5 kV RMS isolation protection for one minute. The two serial interfaces on the OnCell G2151I make it ideal for attaching all kinds of devices, such as stand-alone controllers, PC COM ports, and multi-dropped electric meters. In addition, the OnCell G2111-T has an extended operating temperature (-25 to 70°C) design that makes it suitable for heavy industrial use.
End of Life Product - No Replacement
Please note that the OnCell G2111 Series has been phased out. You can explore the OnCell 3120-LTE-1 Series in the Industrial Cellular Routers and Gateways.
Easy World Automation offers the
easiest way to buy the MOXA OnCell G2111 Industrial Cellular Modem in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | : 1 slot (3 V) |
| Ethernet Ports | |
| USB | |
| Digital Input and Output | |
| Serial port | : 1 x RS-232 port (DB9 female connector) with 15 KV ESD protection |
| Alert Output | |
| Band Options | Quad-band GSM/GPRS 850 MHz / 900 MHz / 1800 MHz / 1900 MHz |
| Cellular Standards | GSM, GPRS |
| Cellular Antenna Connectors | 1 x SMA female |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | |
| Maximum data transfer speed of 2G | GPRS : Download speed 85.6Kbps, upload speed 42.8Kbps |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | |
| VPN | - |
| Firewall | - |
| Time Management | |
| Management | - |
| General | |
| LED Indicators | GSM/GPRS |
| MTBF | 925,000 hrs |
| Operating mode | Router, GSM Modem |
| Standards and protocols | |
| Protocols | - |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | |
| Authentication | |
| Power Requirements | |
| Power Connector | Terminal block |
| Power Consumption (Output Adapter) | - |
| Input Voltage | 12 to 48 VDC |
| POE Support | |
| Input Current | 0.625 A @ 12 VDC, 0.16 A @ 48 VDC |
| Reverse Polarity Protection | - |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail and wall mounting |
| Dimensions | 27 x 123 x 79 mm (1.06 x 4.84 x 3.11 in) |
| Housing | ABS + Polycarbonate |
| Weight | 155 g (0.34 lb) |
| Operating Temperature | -20 to 55°C (-4 to 131°F) |
| Storage Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | Safety : UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; FCC; Radio Frequency: FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 511; IP30; Telcordia SR332 |
