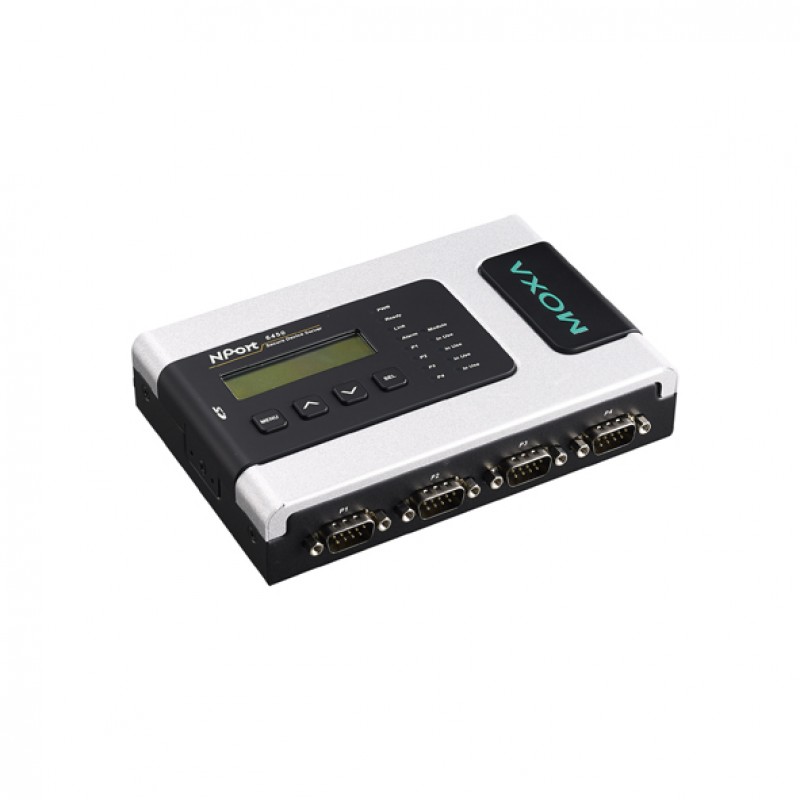

MOXA NPort 6450 Serial to Ethernet Device Server
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 4 x RS-232/422/485 Serial ports (DB9 male connector)
- 12 to 48 VDC input power range
- Desktop, DIN-rail, and Wall mounting
- Metal body design
- 0 to 55°C operating temperature
- Product Code: NPort 6450
Description
The NPort® 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.
You can also find the NPort 6650-16-48V, NPort 6650-16-HV-T, NPort 6650-16-T, and NPort 6650-32 models in the Serial-to-Ethernet Converters.
You can Buy the MOXA NPort 6450 Serial to Ethernet Device Server via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | : Resistive load: 1 A @ 24 VDC |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Protocols | TLS and SSH |
| Serial Interface | |
| Number of Ports | 4 Ports |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | DB9 male |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, DTR/DSR, XON/XOFF |
| Isolation | |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4/IPv6, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, PPPOE, ICMP |
| Compatible operating systems | Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003, Windows Embedded CE 6.0/5.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel version: 2.4.x, 2.6.x, 3.x, 4.x |
| MTBF | 850,905 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | - |
| Input Voltage | 12 to 48 VDC |
| Input Current | 730 mA @ 12 VDC |
| Security | |
| Security | Protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2 |
| Encryption | HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384 |
| Authentication | Local database, RADIUS, TACACS+ |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | with ears: 181 x 103 x 35 mm (7.13 x 4.06 x 1.38 in), without ears: 158 x 103 x 35 mm (6.22 x 4.06 x 1.38 in) |
| Installation | Desktop, DIN-rail mounting, Wall mounting |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 60950-1; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-34; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
| Housing | Metal |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 1,020 g (2.25 lb) |
