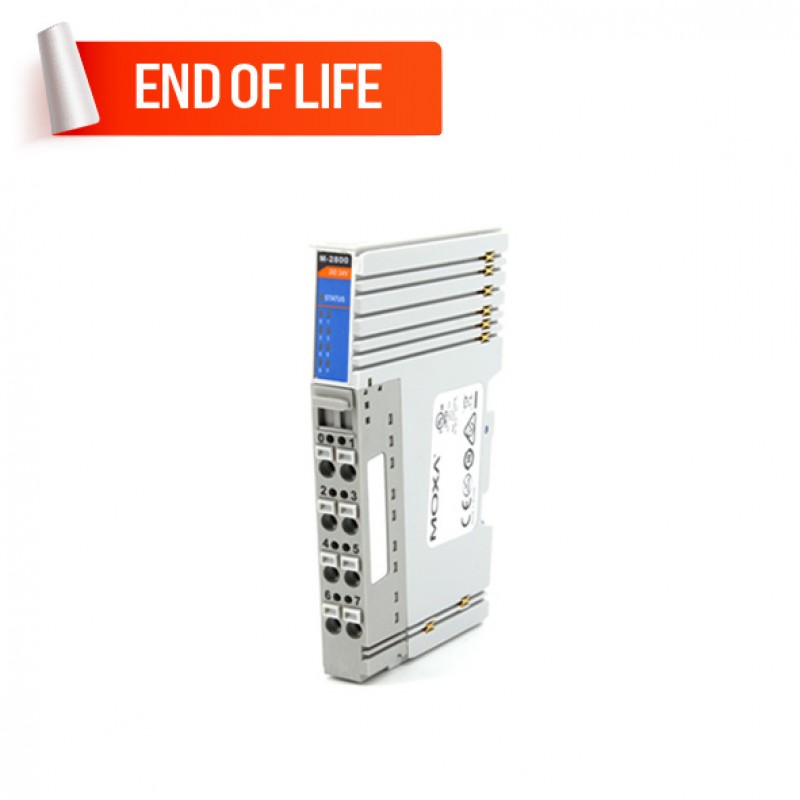

MOXA M-2800 Remote I/O Modules | Easy World Automation

MOXA M-2800 Remote I/O Modules

  • I/O expansion without a backplane
  • Active communication with MX-AOPC UA Server
  • Supports SNMP v1/v2c
  • Easy configuration with Modular ioAdmin utility
  • Friendly configuration via a web browser
  • Simplifies I/O management with MXIO library for Windows or Linux

Description

The ioLogik 4000 Series is suitable for remote monitoring and alarm systems, such as those used for water treatment systems, water supply systems, wastewater treatment systems, and power monitoring systems. These kinds of applications need more I/O points and a variety of I/O types, including temperature sensors, gas detectors, and water quality detectors, all of which can benefit from the versatile mixture of I/O features supported by the ioLogik 4000 Series.

You can also find the  M-2801 model in the Remote I/O.


Enjoy the ease of online inquiries for the MOXA M-2800 Remote I/O Modules. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

INPUT/OUTPUT INTERFACE
Digital Output Channels 8
Isolation 3k VDC or 2k Vrms
GENERAL
MTBF 13,884,600 hrs
POWER REQUIREMENTS
Power Connector Spring-type Euroblock terminal
Power Consumption 35 mA @ 5 VDC
PHYSICAL CHARACTERISTICS
Housing Plastic
Dimensions 14.1 x 99 x 70 mm (0.56 x 3.90 x 2.76 in)
Installation DIN-rail mounting
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/24, EN 61000-6-2/-6-4, EMI: CISPR 32, FCC Part 15B Class A, EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, Safety: UL 508, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6
