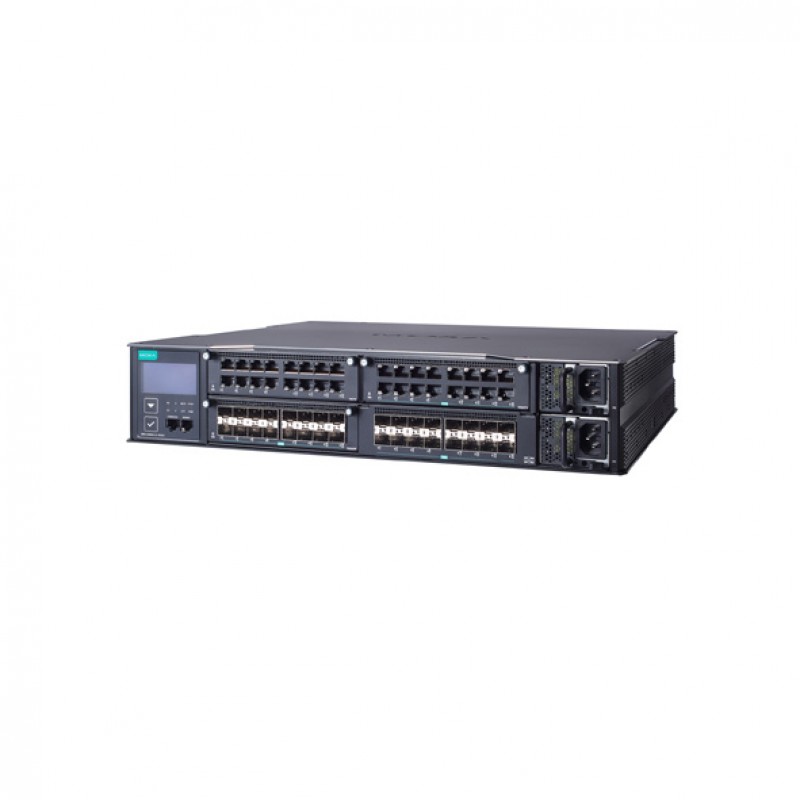

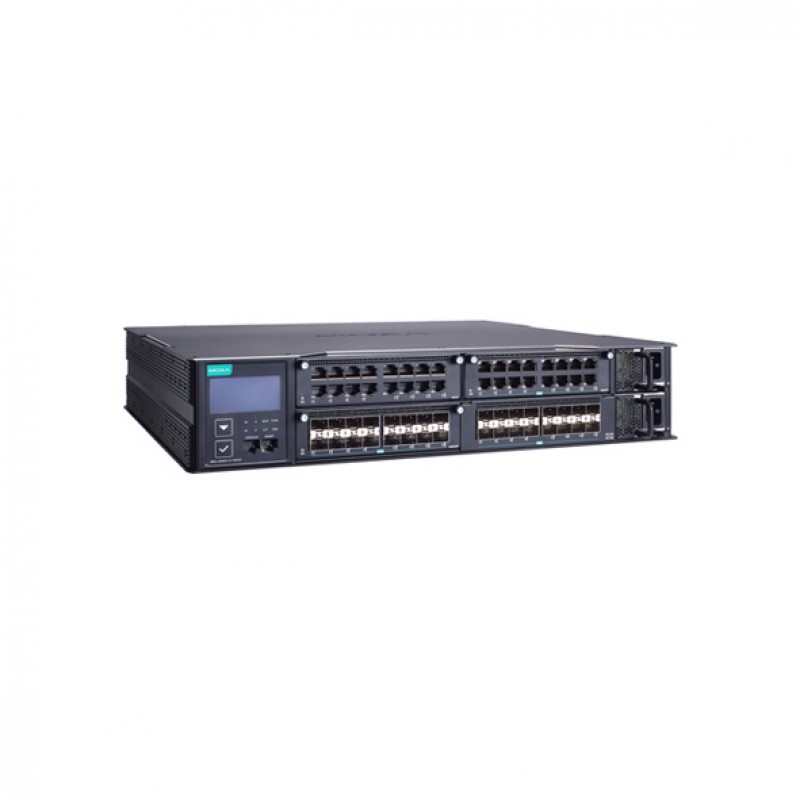

MOXA MRX-Q4064-L3-16XGS Rackmount Ethernet Switch
- Modular Managed Ethernet Switch
- 16 x 1000/2500/10000BaseSFP Slots
- 3 x 16-port module slots for 1GbE/2.5GbE ports or SFP slots
- 100/240 VAC or 230/240 VDC Redundant dual inputs
- 2 x Power module and 8 x Fan module slots
- Rackmount installation design
- -10 to 60°C operating temperature range
.png)
Description
The MRX-Q4064 Series is designed to meet the
high-performance, high-availability requirements of industrial video, voice,
and data applications resulting from the growing convergence of information
technology in industrial sites.
The modular design of the MRX-Q4064 Series supports 16 10GbE
ports built-in and up to 48 2.5GbE ports via modules, ideal for building
large-scale industrial network applications. 10GbE ports significantly increase
the network switching bandwidth, allowing for direct connections to
10GbE-enabled servers and moving data collection and analysis closer to the
application site. Additionally, support for multi-port aggregation allows for a higher bandwidth backbone, while also leaving room for future network growth.
In addition to accommodating larger numbers of field
devices, the MRX-Q4064 Series reduces the delay of data transmission and enables
the rapid transmission of large amounts of video, voice, and data on
high-performance networks. This series is equipped with a redundant multi-fan
cooling system and redundant isolated power supplies. It supports industrial
high-efficiency Turbo Ring technology, as well as other network redundancy
technologies such as ERPS (ITU-T G.8032) and RSTP/STP, which can enhance the reliability
and availability of backbone networks in IT/OT convergence applications.
You can also find the MRX-G4064-L3-8XGS model in the Rackmount Ethernet Switches.
Enjoy the ease of online inquiries for the MOXA MRX-Q4064-L3-16XGS Rackmount Ethernet Switch. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 64 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Up to 48 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | Up to 48 Slots |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 16 x 1000/2500/10000BaseSFP Slots, 3 x 16-port module slots for 1GbE/2.5GbE ports or SFP slots, Out-of-band Management (OOBM): 1 x 8-pin RJ45 1GbE Ethernet port (MGMT), 1 x USB Port (Type A connector), 1 x microSD card, 1 x RS-232 Console Port (RJ45 connector), 1 x Alarm Contact Channel, 2 x Power module slots (PWR-300-HVA-IF), 8 x Fan module slots (XM-4000-FAN-R) |
| Features and capabilities | |
| Backup | : ABC-02 and ABC-03 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | Max. 2.703 A @ 110 VAC, Max. 1.339 A @ 220 VAC, Max. 1.615 A @ 180 VDC, Max. 0.948 A @ 300 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 100-240 VAC, 50-60 Hz or 230-240 VDC (for each power supply) |
| Operating Voltage | 90-264 VAC, 47-63 Hz or 180-300 VDC (for each power supply) |
| Power Consumption | Max. 297 W @ 110 VAC, Max. 287.3 W @ 220 VAC, Max. 290.3 W @ 180 VDC, Max. 284.3 W @ 300 VDC |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 1,337,959 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 440 x 88 x 420 mm (17.32 x 3.46 x 16.54 in) |
| Housing | - |
| Installation | Rack mounting |
| Operating Temperature | -10 to 60°C (-14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 62368-1, UL 61010-2-201, IEC 62368-1; EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 Voltage Dips & Interruptions; Railway: EN 50121-4; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Package Drop Test: ISTA 1A; Package Vibration Test: ISTA 1A; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 12 kg (26 lb) |
| Standards and protocols | |
| Protocols and work standards | IEEE1588v2 PTP, STP, RSTP, Turbo Ring v2, Ring Coupling, Multiple Dual-Homing, Link Aggregation, Network Loop Protection, MSTP, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, IPv4, RMON, Syslog |
| Protocols and management standards | IPv4, Flow control, Back Pressure Flow Control, DHCP Client, ARP, RARP, LLDP, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, Port Mirroring (SPAN, RSPAN), GMRP, GVRP, GARP, 802.1Q, IGMP Snooping v1/v2/v3, IGMP Querier |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
